Bus Overview

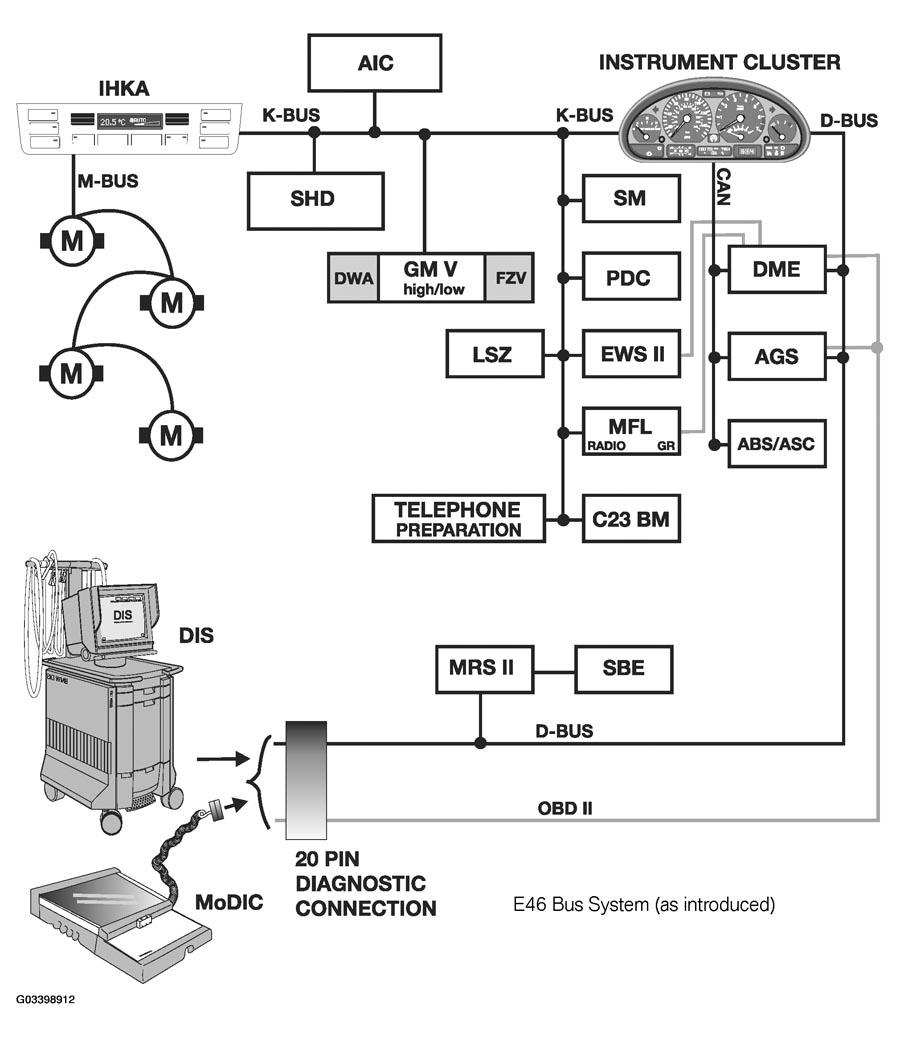

Fig 1: Identifying E46 Bus Overview
Courtesy of BMW OF NORTH AMERICA, INC.
E46 Bus System (as introduced)
Courtesy of BMW OF NORTH AMERICA, INC.
