Power Module - Overview - E65
>>
Power Module
>>
Power Module Functions
>>
Check Control Messages
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Check Control Messages

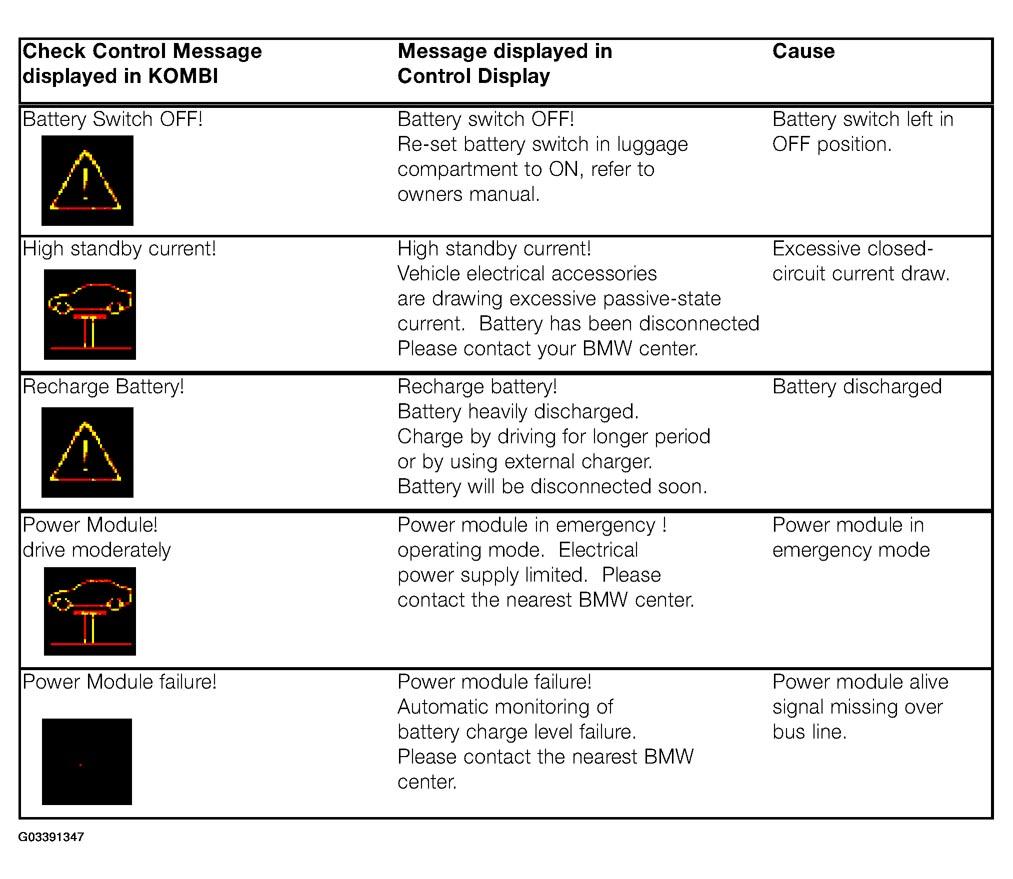

The following are all of the possible Power Module relevant messages:
Fig 1: KOMBI Display
Courtesy of BMW OF NORTH AMERICA, INC.
