61 13... Crimping Micro Power Quadlock Contacts (MPQ)

NOTE:

For Special Tool identification, see Special tools required: .

Special Tools Required:

To crimp MPQ contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

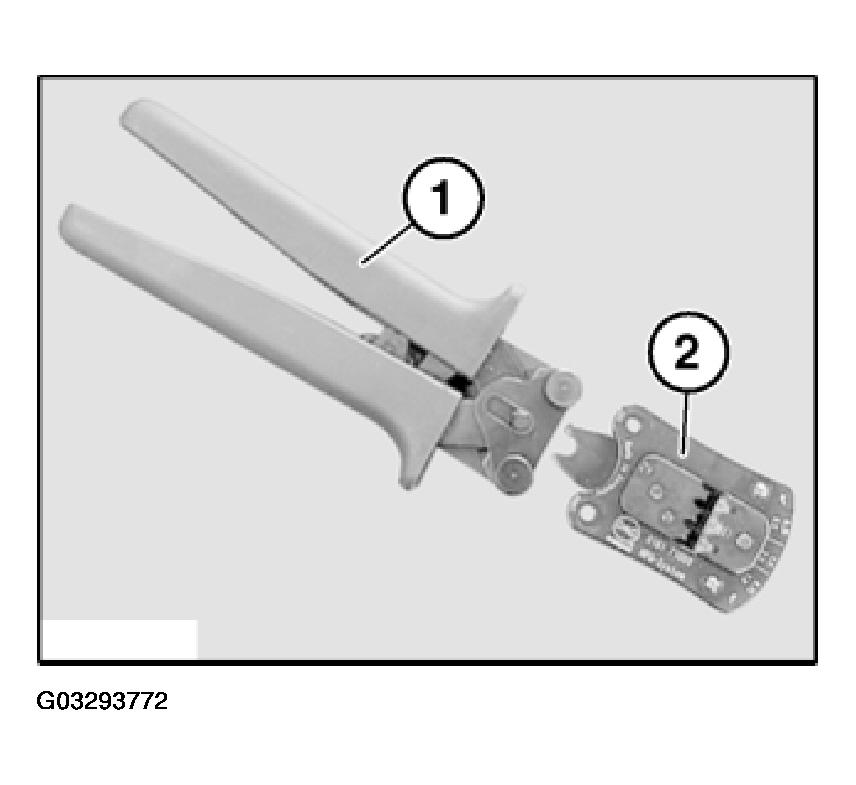

Fig 1: Special Tools (61 4 321) And (61 4 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (1).

NOTE: Place contact (2) with utmost care in designated nest (observe cable cross-section) in crimping head (3). Make sure it is exactly positioned.

Place MPQ contact (2) in crimping head (3).

Close pliers (1) one notch.

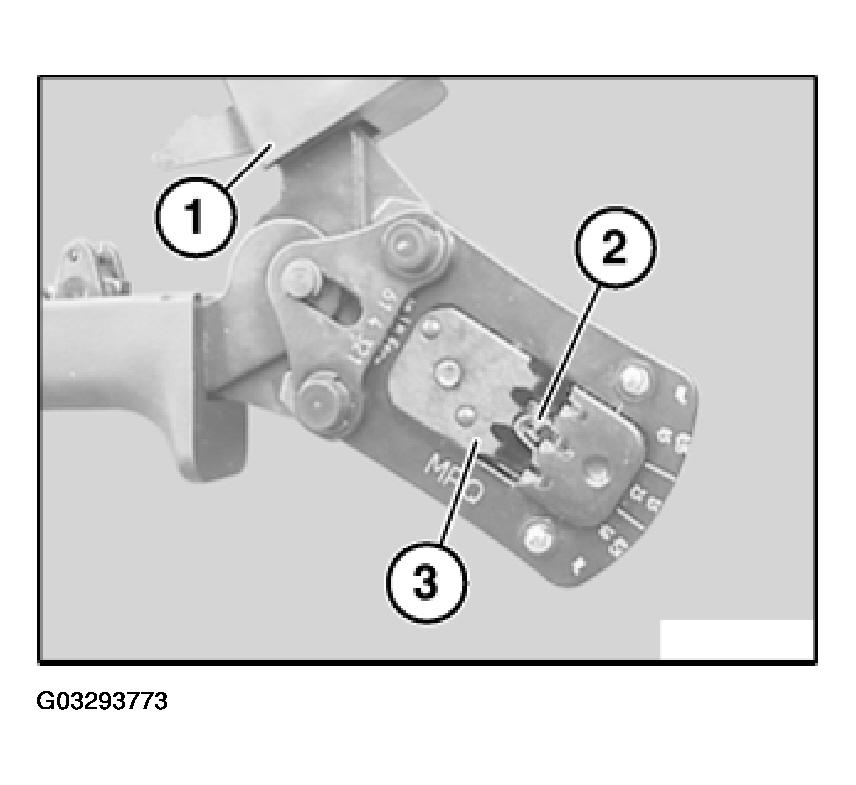

Fig 2: Pliers, Contact And Crimping Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables, refer to 61 13 Cutting to length and stripping insulation from cables .

Insert stripped cable (2).

Close pliers (1) fully.

Open pliers (1) and remove cable (2).

NOTE: Check contact for correct crimping, refer to 61 13 Crimping stop parts .

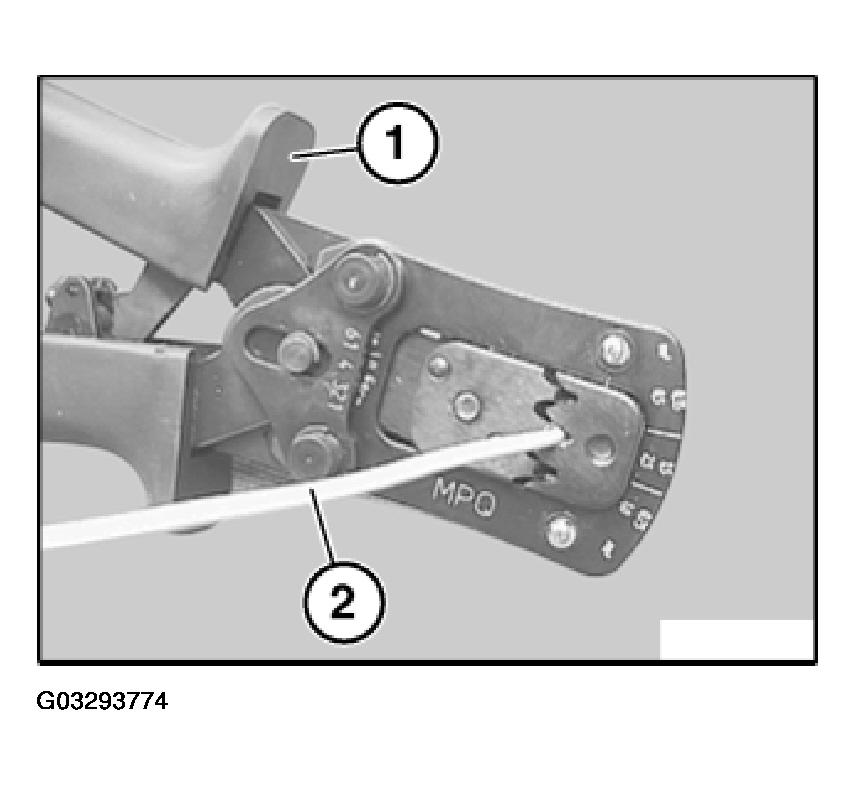

Fig 3: Pliers And Cable

Courtesy of BMW OF NORTH AMERICA, INC.
