61 13... Crimping Micro Quadlock System Contacts (MQS)

NOTE:

For Special Tool identification, see Special tools required: .

Special Tools Required:

To crimp MQS contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 324 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

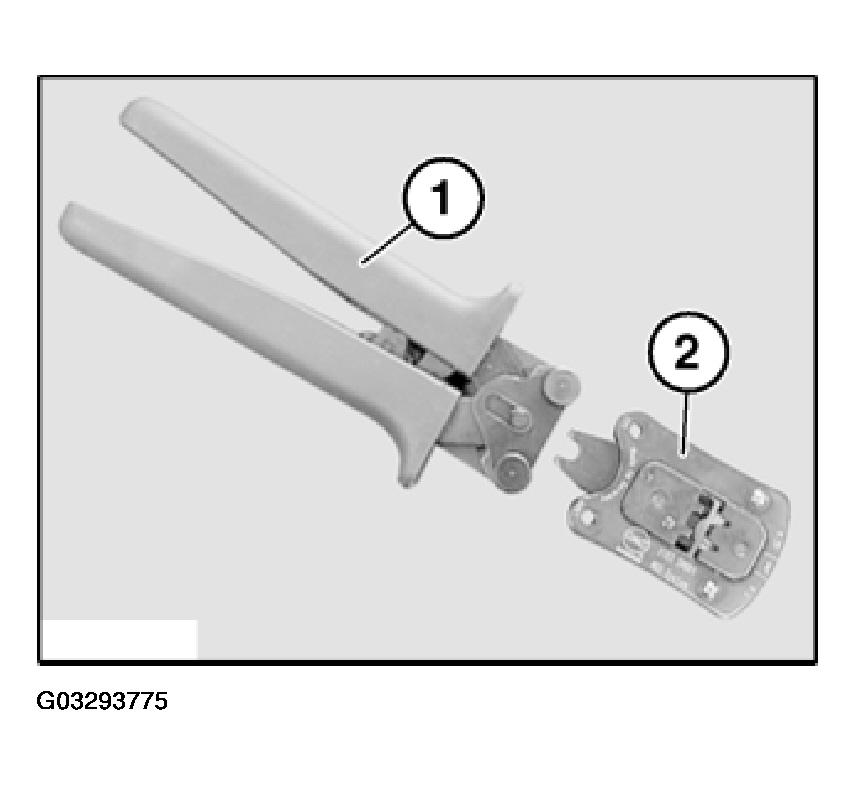

Fig 1: Special Tools (61 4 321) And (61 4 324)

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (1).

Fold up contact carrier (2).

Insert MQS contact (3) in contact carrier (2).

Fold back contact carrier (2).

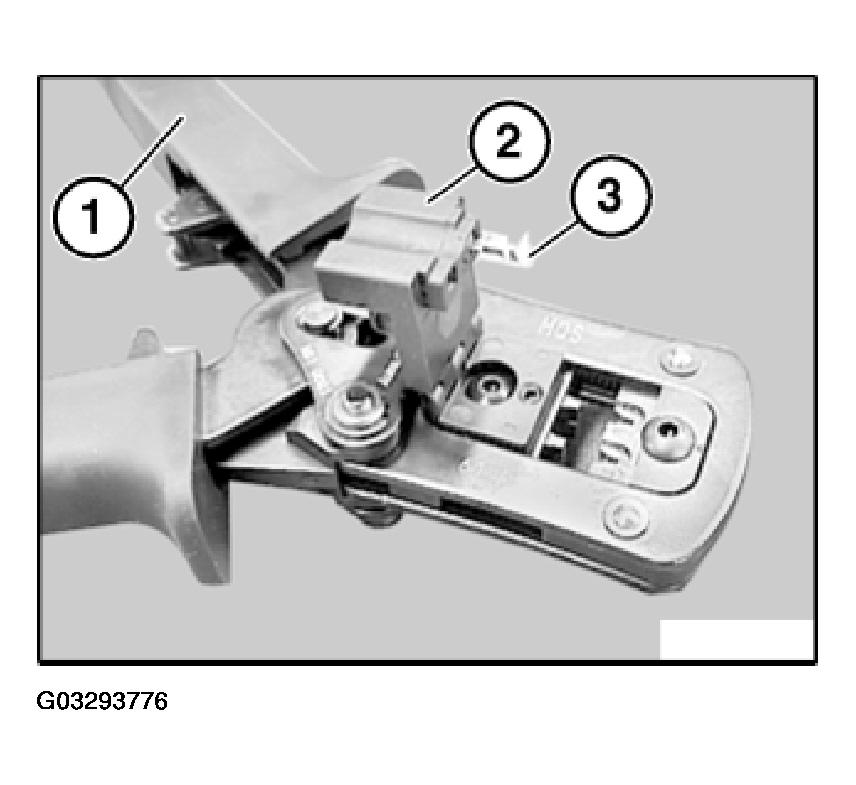

Fig 2: Inserting MQS Contact In Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables, refer to 61 13 Cutting to length and stripping insulation from cables .

Close pliers (1) one notch.

Insert stripped cable (2).

Close pliers (1) fully.

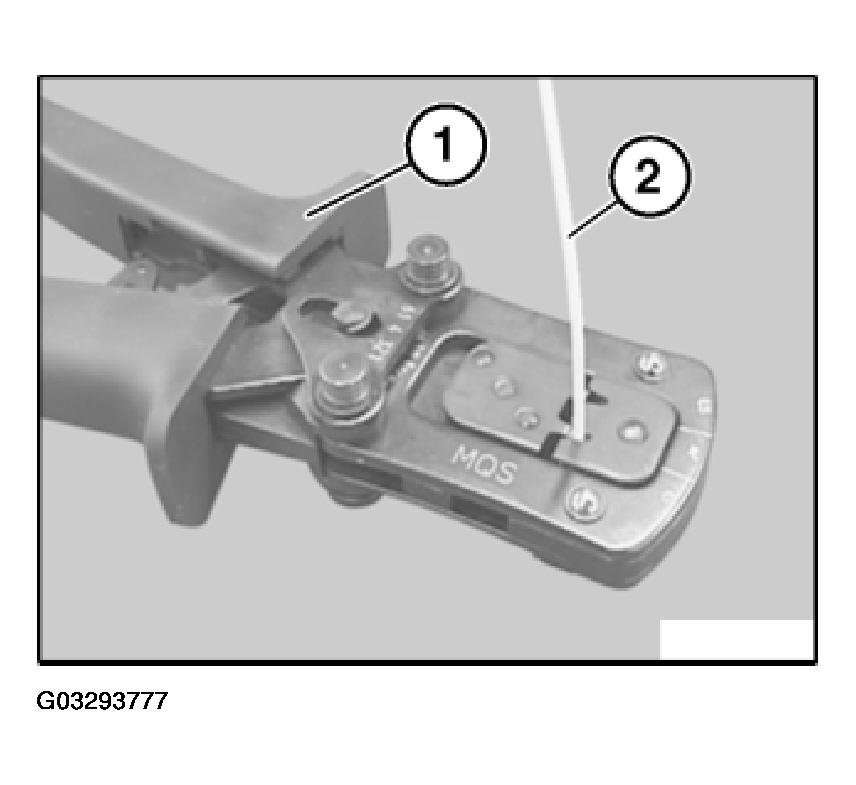

Fig 3: Pliers And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (1).

Open contact carrier (2) gently and carefully remove MQS contact.

NOTE: Check contact for correct crimping, refer to 61 13 Crimping stop parts .

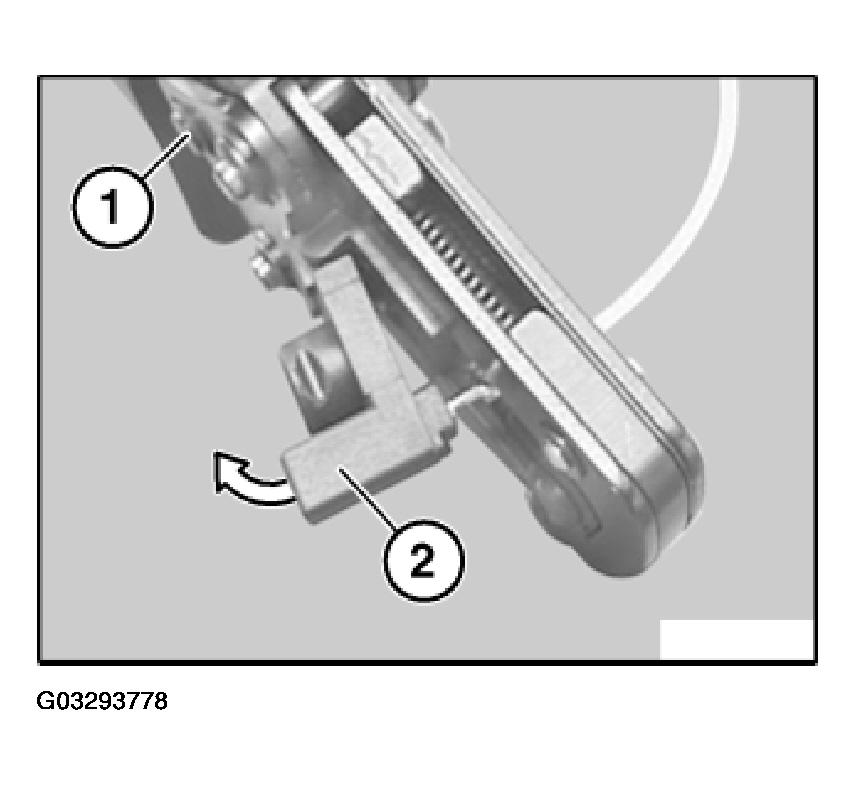

Fig 4: Pliers, Contact Carrier And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
