61 13... DME master relay connector

Unlock locking flap (1) of corresponding cable.

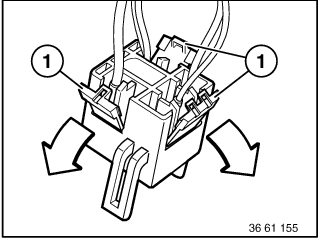

Fig 1: DME Master Relay Connector Unlocking Flap And Unlocking Direction

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable. Unlock locking flap (1) of corresponding cable.

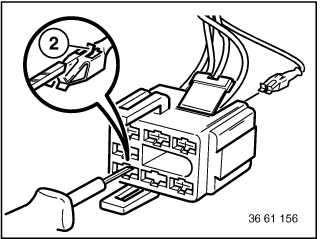

Fig 2: Ejector and Arrester Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking flap (1) of corresponding cable.

Fig 1: DME Master Relay Connector Locking Flap And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

Fig 2: Arrester Hook And Special Tool (61 1 136)/(61 1 137)

Courtesy of BMW OF NORTH AMERICA, INC.
