61 35 030 Removing And Installing (Replacing) Power Module

Necessary Preliminary Tasks:

• Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
• Remove flap in right luggage compartment wheel arch trim. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Disconnect plug connections (1).

Installation:

Ensure correct cable routing.

Release screws (2).

Feed out power module (3) in direction of arrow and remove.

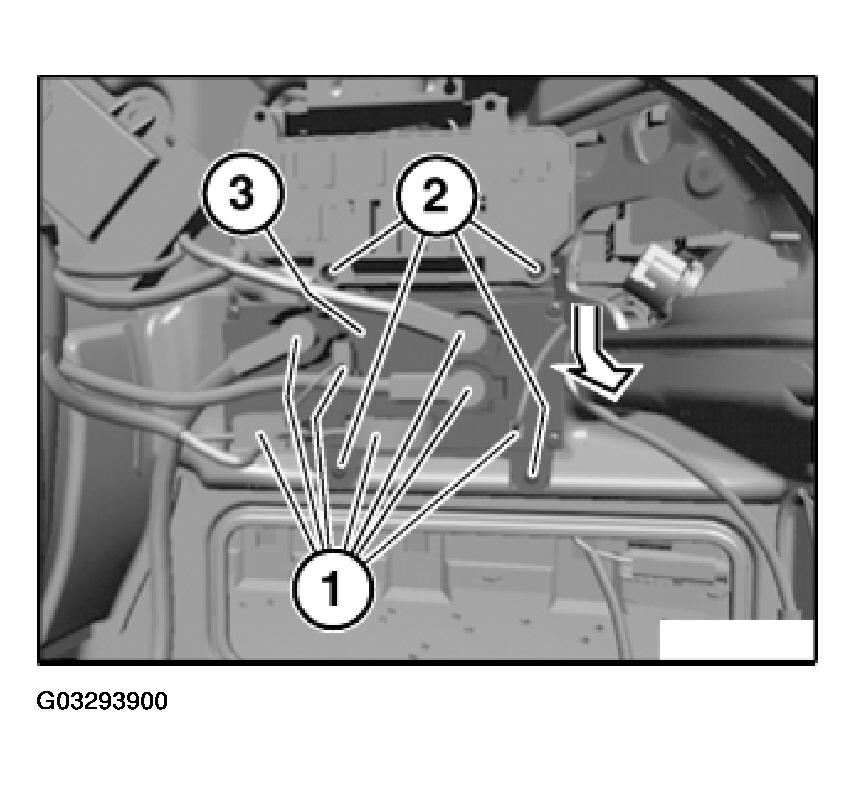

Fig 1: Plug Connections, Screws, Power Module And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

• Programming.
• Coding.
• Car & Key Memory.
• CD "CIP".

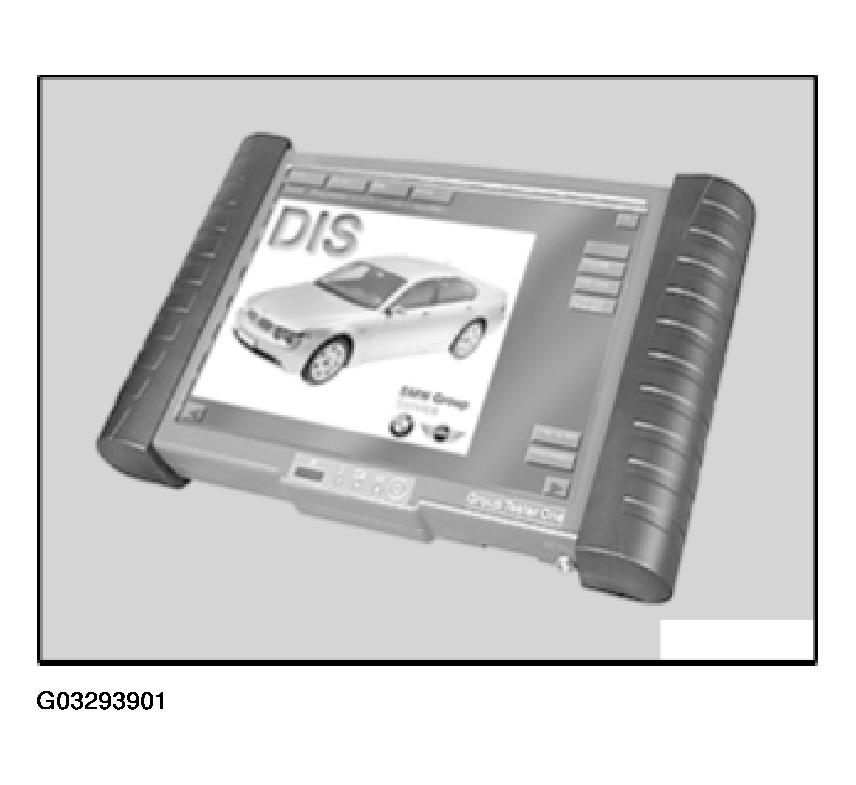

  Fig 2: Identifying Programming Unit

  Courtesy of BMW OF NORTH AMERICA, INC.
