51 11... Removing And Installing/Replacing Cover For Headlight Washer System On Left

Necessary Preliminary Tasks:

• Remove body molding for bumper. Refer to 51 11 170 REPLACING BODY MOLDING FOR LEFT OR RIGHT BUMPER .

Build Date Up To 03/2005:

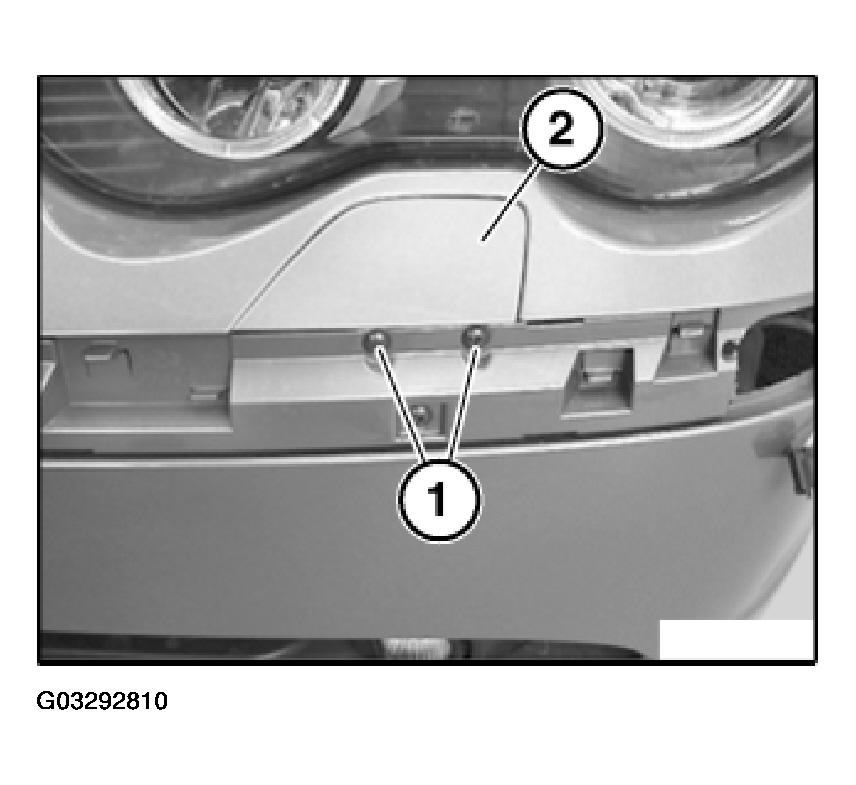

Release screws (1).

Remove cover (2) towards top.

Fig 1: Removing Cover (Build Date Up To 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 03/2005:

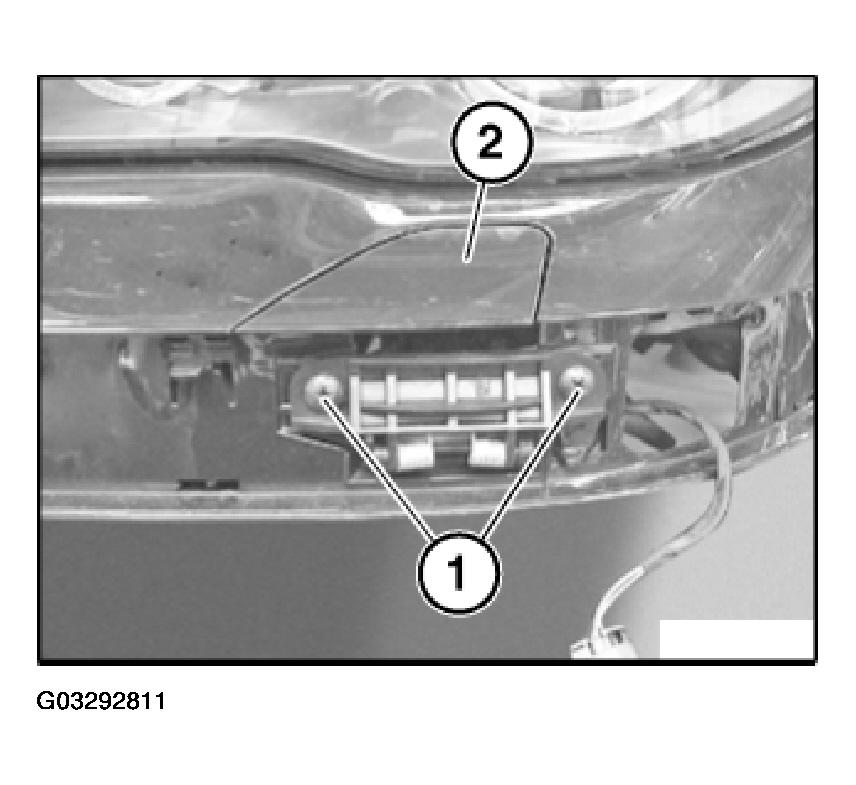

Release screws (1).

Remove cover (2) towards front.

Fig 2: Removing Cover (Build Date From 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

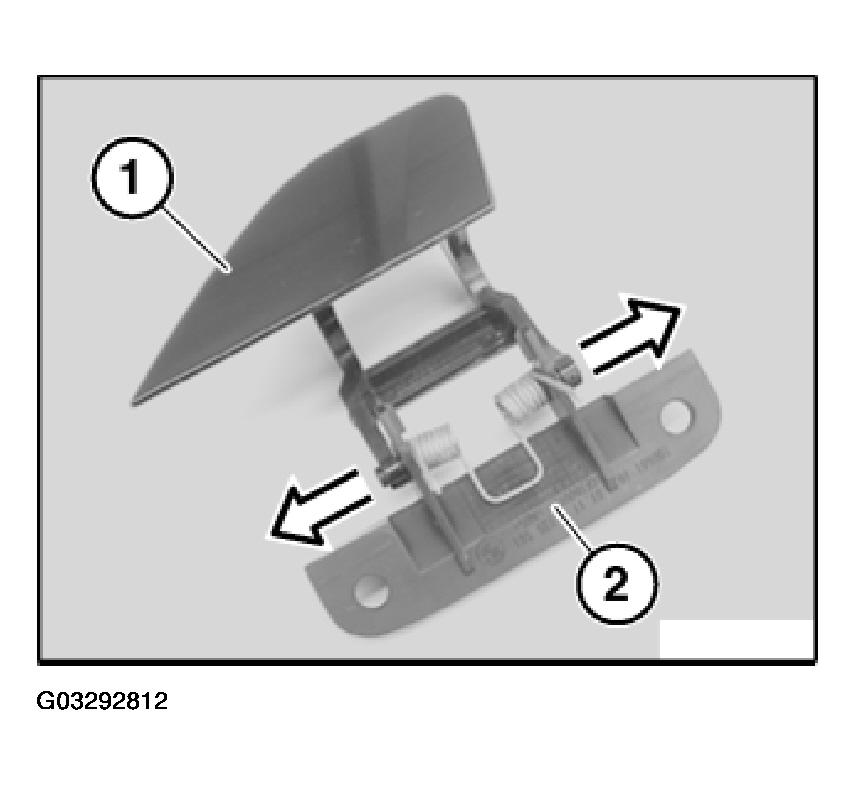

Detach flap (1) sideways from bearing support (2).

Fig 3: Removing Flap From Bearing Support

Courtesy of BMW OF NORTH AMERICA, INC.
