51 16... Overview Of Storage Compartment (Center Console)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
51 16... Overview Of Storage Compartment (Center Console)

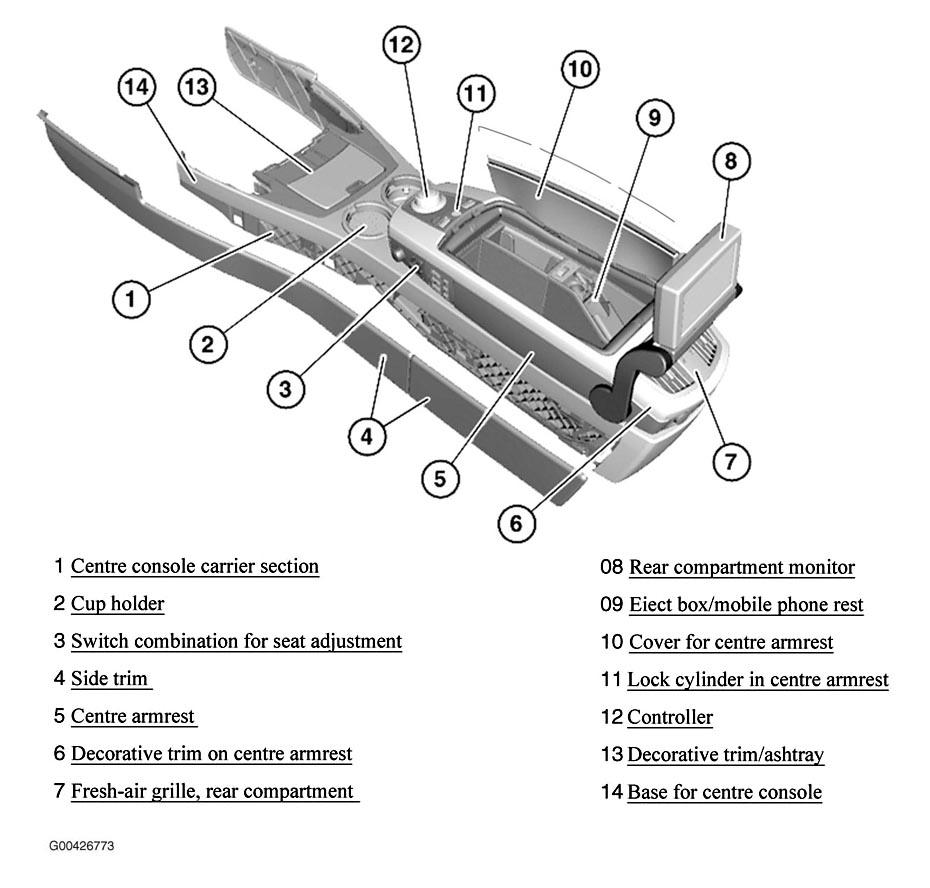

Fig 1: Identifying Storage Compartment (Center Console)
Courtesy of BMW OF NORTH AMERICA, INC.
