51 45.. Overview Of Instrument Panel

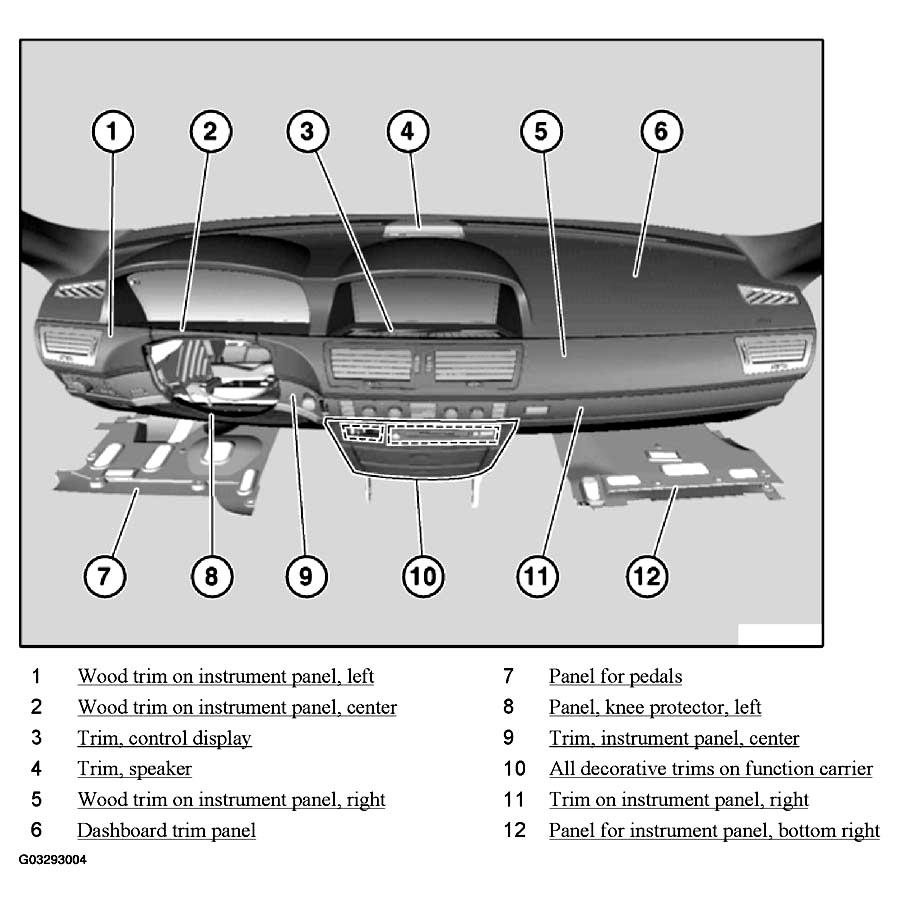

Fig 1: Identifying Trim Panels For Instrument Panel
G03293004Courtesy of BMW OF NORTH AMERICA, INC.
