51 00... Engine compartment lid service position (active from 09/2011)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 2 240

WARNING: Danger of injury and damage!
Engine compartment lid must be held by a second person helping.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

NOTE: Graphic shows F01.

DISMANTLING OF BALL SOCKET (1).

Unclip gas pressure spring (2) in direction of arrow from ball stud (3).

Fig 1: Removing Gas Pressure Spring

Courtesy of BMW OF NORTH AMERICA, INC.

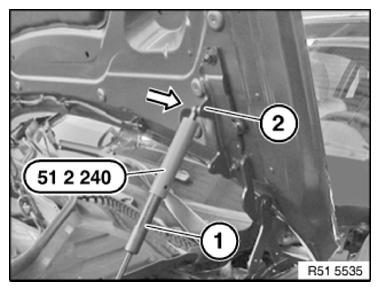

Push special tool 51 2 240 over gas pressure spring (1).

Clip ball socket of special tool 51 2 240 onto ball stud (2).

Fig 2: Pushing Special Tool (51 2 240) Into Gas Pressure Spring

Courtesy of BMW OF NORTH AMERICA, INC.
