32 13... Fitting Repair Kit For FCD Coupling

NOTE:

Special Tools Required:

Only following parts can be replaced on coupling head:

IMPORTANT: Support ring and O-ring must not be mixed up! Always fit repair kit for FCD coupling completely.

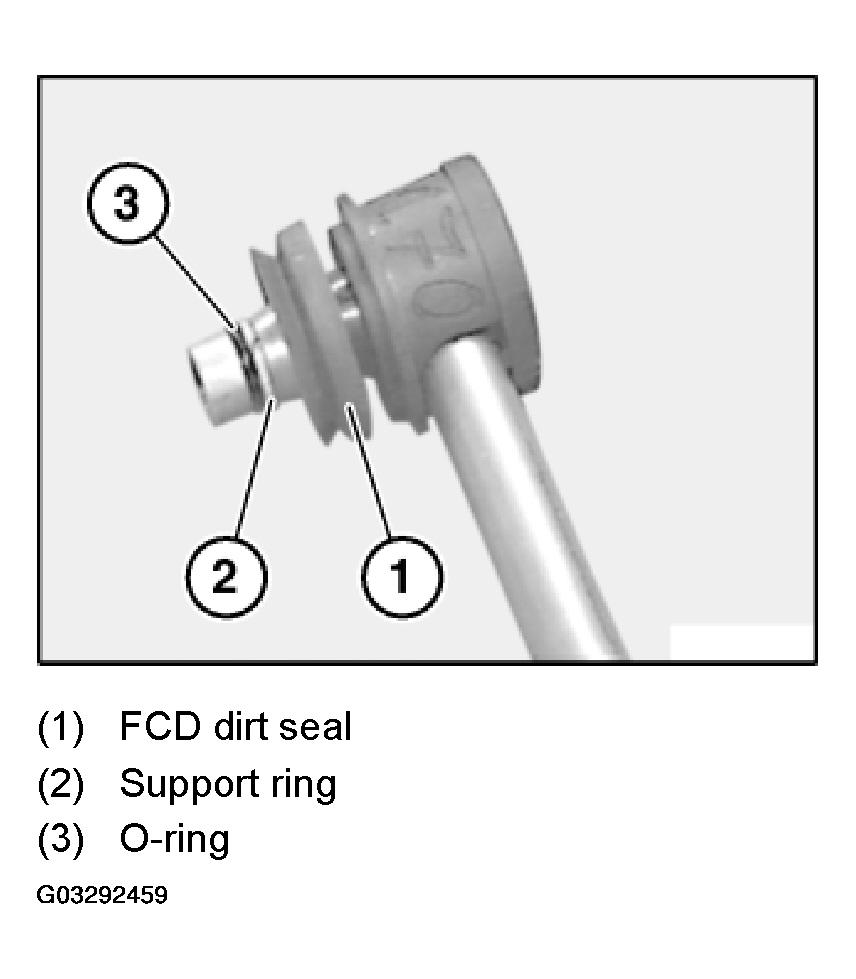

Fig 1: FCD Coupling Dirt Seal, Support Ring And O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Press in special tool 32 1 023 as far as it will go in connecting piece on hydraulic steering gear. Then pull out again.

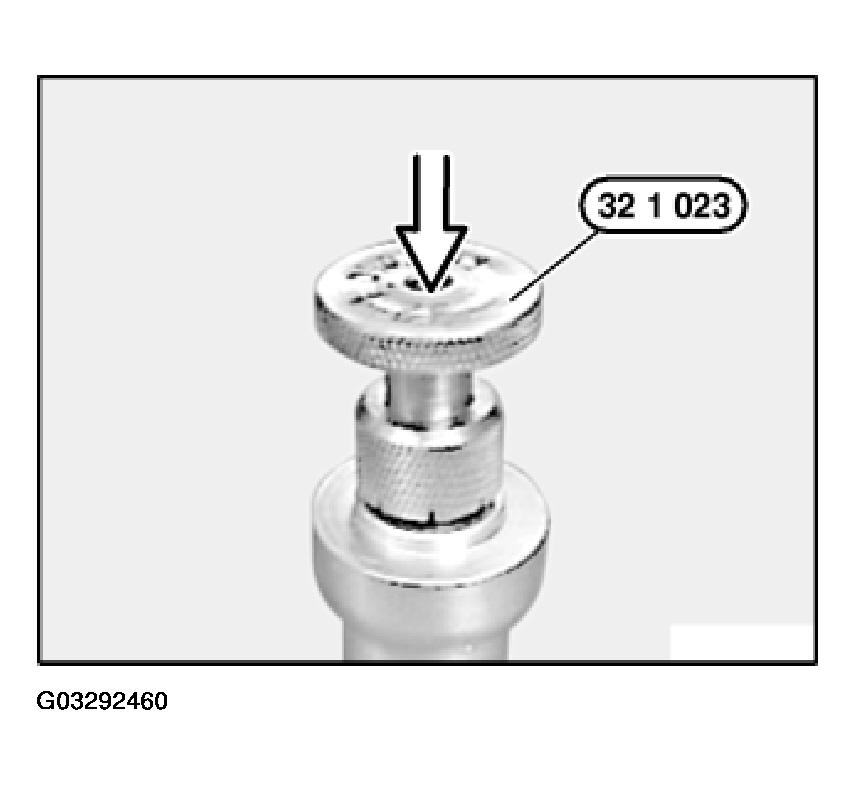

Fig 2: Special Tool (32 1 023) And Installation Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring ring (1) from special tool 32 1 023.

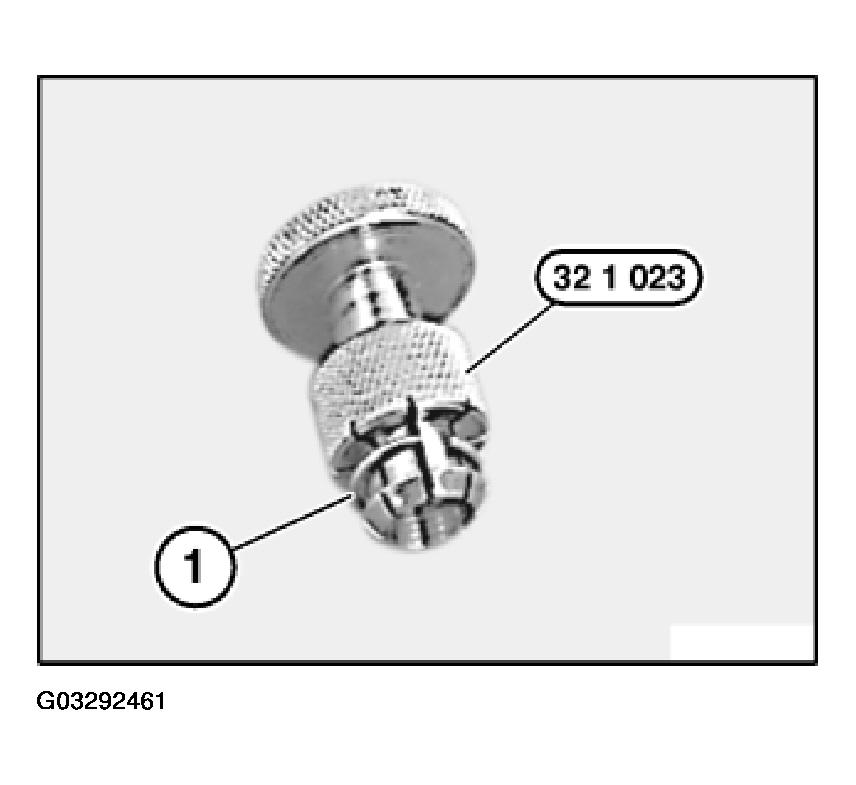

Fig 3: Spring Ring And Special Tool (32 1 023)

Courtesy of BMW OF NORTH AMERICA, INC.

Lay new spring ring (1) in special tool 32 1 021.

Using special tool 32 1 022, press spring ring (1) into connection. In so doing, press through special tool as far as it will go.

Installation:

Bore hole in special tool 32 1 021 is conical. Special tool must rest with stepped side securely on connection of hydraulic steering gear.

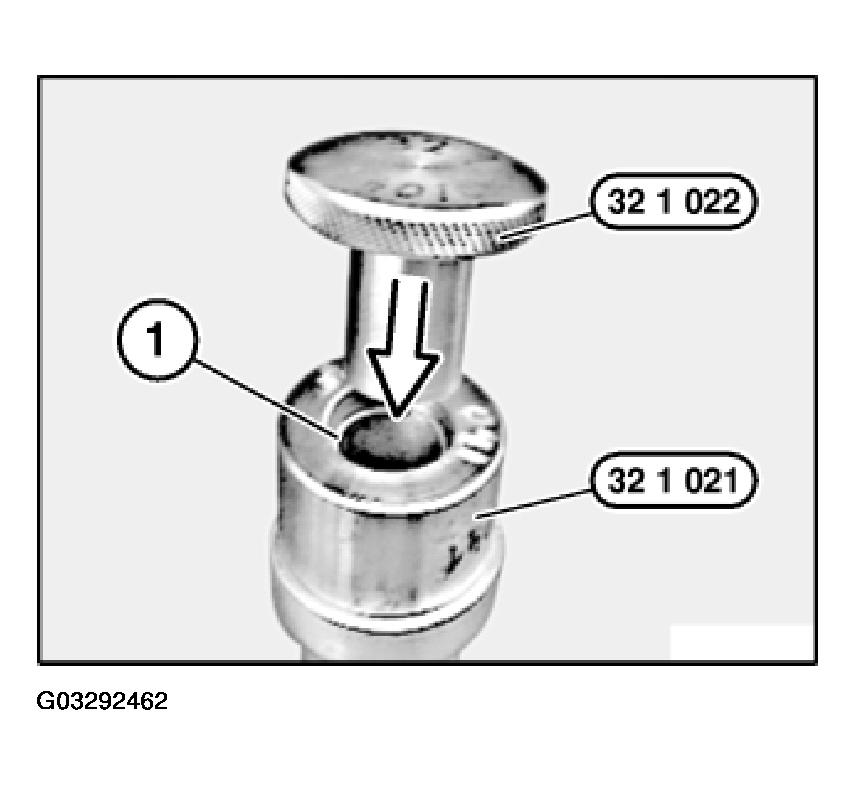

Fig 4: Spring Ring, Special Tools (32 1 022), (32 1 021) And Installation Direction

Courtesy of BMW OF NORTH AMERICA, INC.
