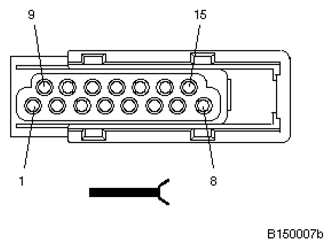

General Module Control Unit X332 Connector End View
Pin Assignments At Plug Connector X332
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply for interior lights, washer pump, tailgate/rear lid release and load cutout | Fuse F52 |
| 2 | A | Signal, washer pump | Washer pump |
| 3 | A | Consumer cut-off signal | Connector Load cutout |
| 4 | A | Signal, rear Driver's side power window motor, closed | Window regulator motor, rear left |
| 5 | A | Signal, rear passenger's side power window motor, closed | Window regulator motor, rear right |
| 6 | A | Signal, front passenger's power window motor, open | Passenger's window motor |
| 7 | A | Signal, Driver's power window motor, open | Driver's window motor |
| 8 | E | Supply, front window regulator | Fuse F48 |
| 9 | E | Supply, central locking system | Fuse F60 |
| 10 | E | Supply, rear window regulator | Fuse F71 |
| 11 | A | Signal, rear Driver's side power window motor, open | Window regulator motor, rear left |
| 12 | A | Signal, rear passenger's side power window motor, open | Window regulator motor, rear right |
| 13 | A | Signal, front passenger's power window motor, closed | Passenger's window motor |
| 14 | A | Signal, Driver's power window motor, closed | Driver's window motor |
| 15 | M | Load ground, central locking and window regulators | Ground point |
