Mk-3 Navigation Computer

The Mk-3 navigation computer is located in the left side of the vehicles trunk or cargo area.

(In the case of the Z8 it is installed in the storage box behind the passenger seat.)

The navigation computer housing contains:

• Map CD Drive
• Hardware For Navigation Function
• GPS Receiver
• Gyro Sensor
• Output For Audio Interface
• Output For Visual Display
• Cooling Fan For Unit

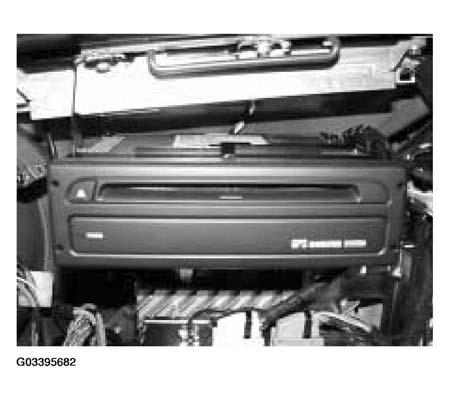

Fig 1: Locating Mk-3 Navigation Computer

Courtesy of BMW OF NORTH AMERICA, INC.

There are two different hardware versions available dependent on the angle of installation in the vehicle (horizontal or vertical). The Mk-3 is compatible with both board monitor or MIR display units. (See workshop hints for configuration instructions).

Identification of the Mk-3 computer over the previous versions is easy due to a change in the face plate design and the elimination of the "CD-IN" LED.

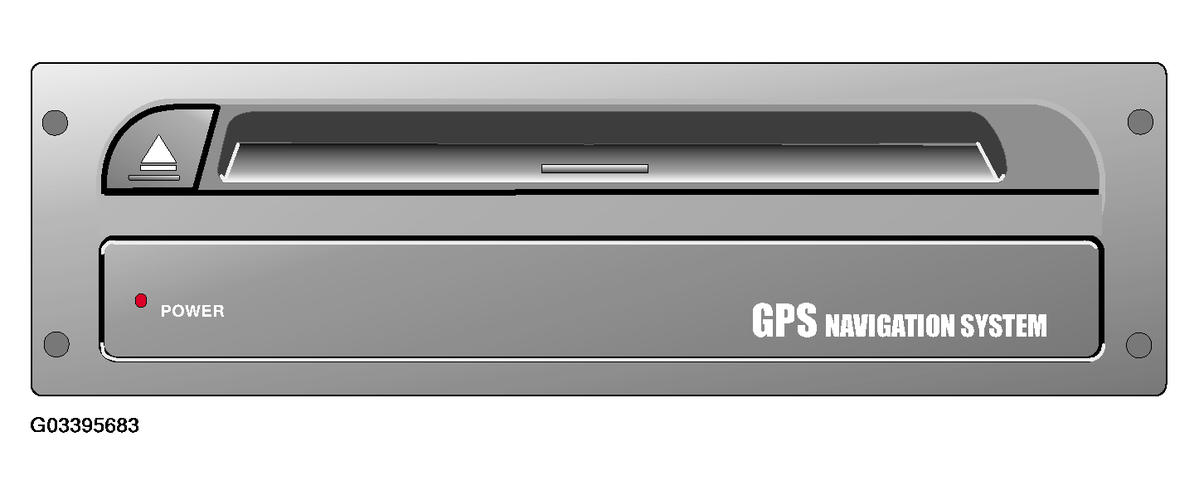

Fig 2: Identifying Mk-3 Navigation Computers

Courtesy of BMW OF NORTH AMERICA, INC.

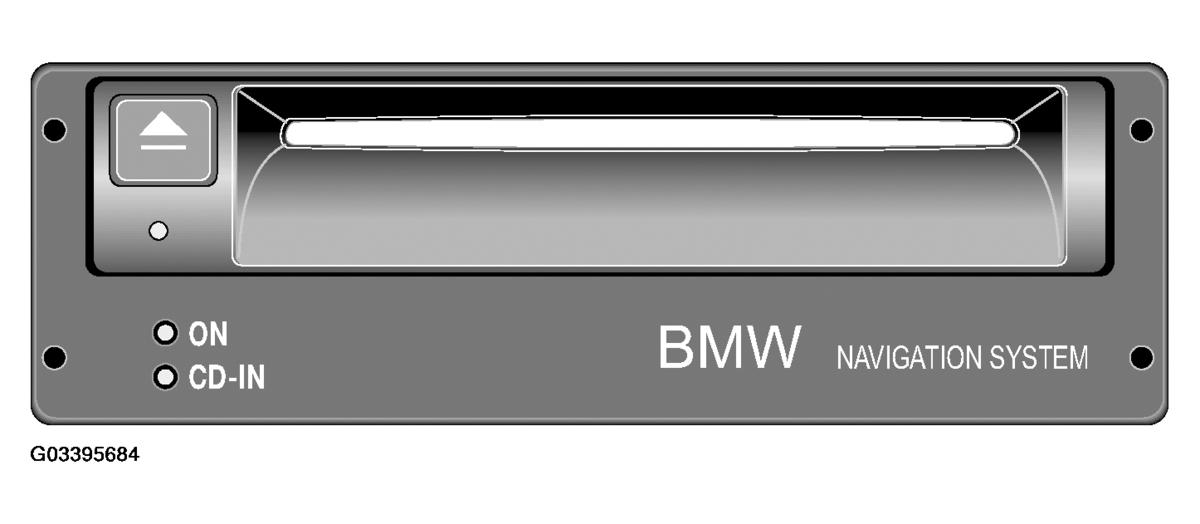

Fig 3: Identifying Mk-1 And Mk-2 Navigation Computers

Courtesy of BMW OF NORTH AMERICA, INC.

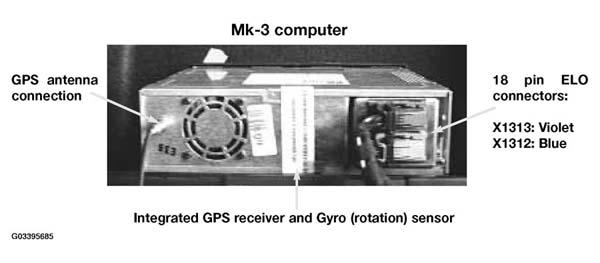

Fig 4: Identifying Integrated GPS Receiver And Gyro (Rotation) Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
