Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

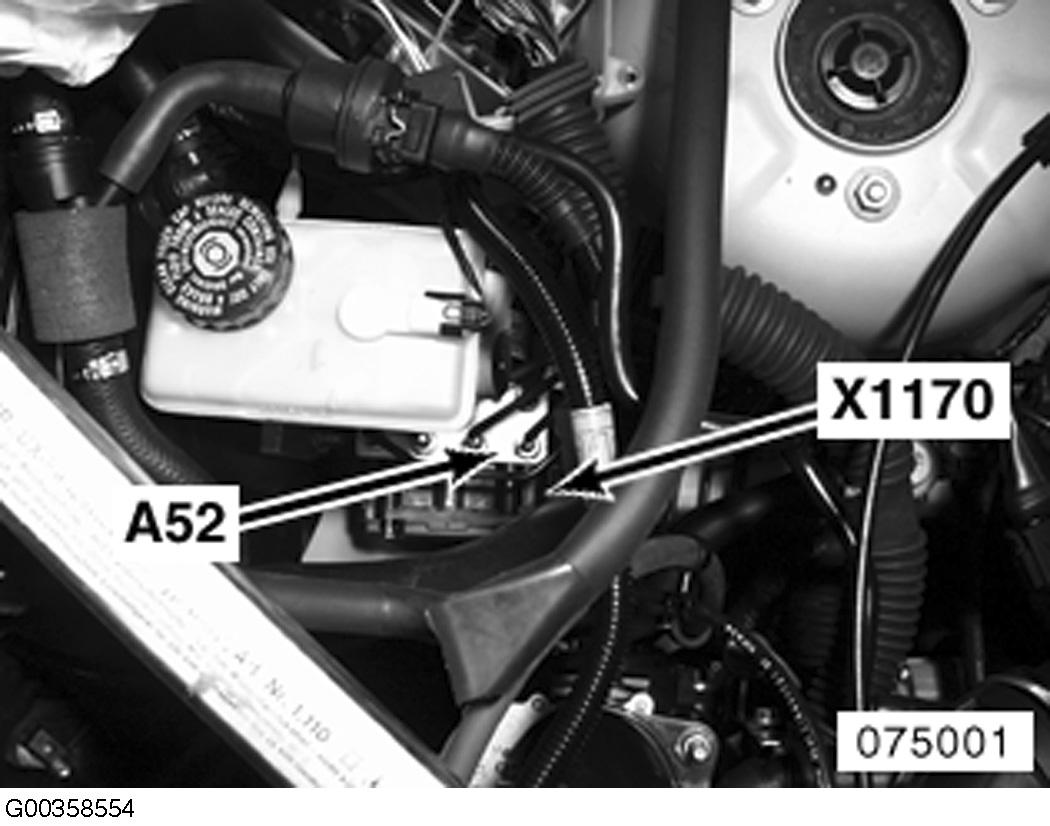

| ABS/ASC Unit (A52) | Left rear engine compartment. See Figure. |

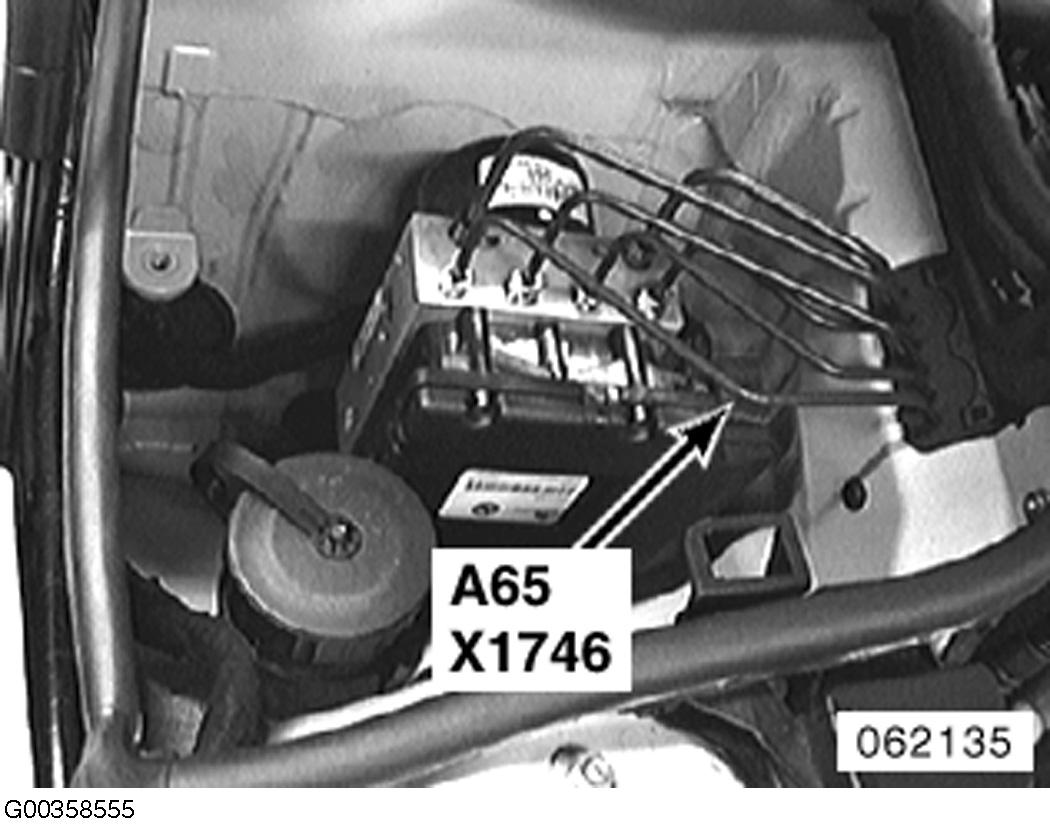

| ABS/DSC Unit (A65) | Right rear engine compartment. See Figure. |

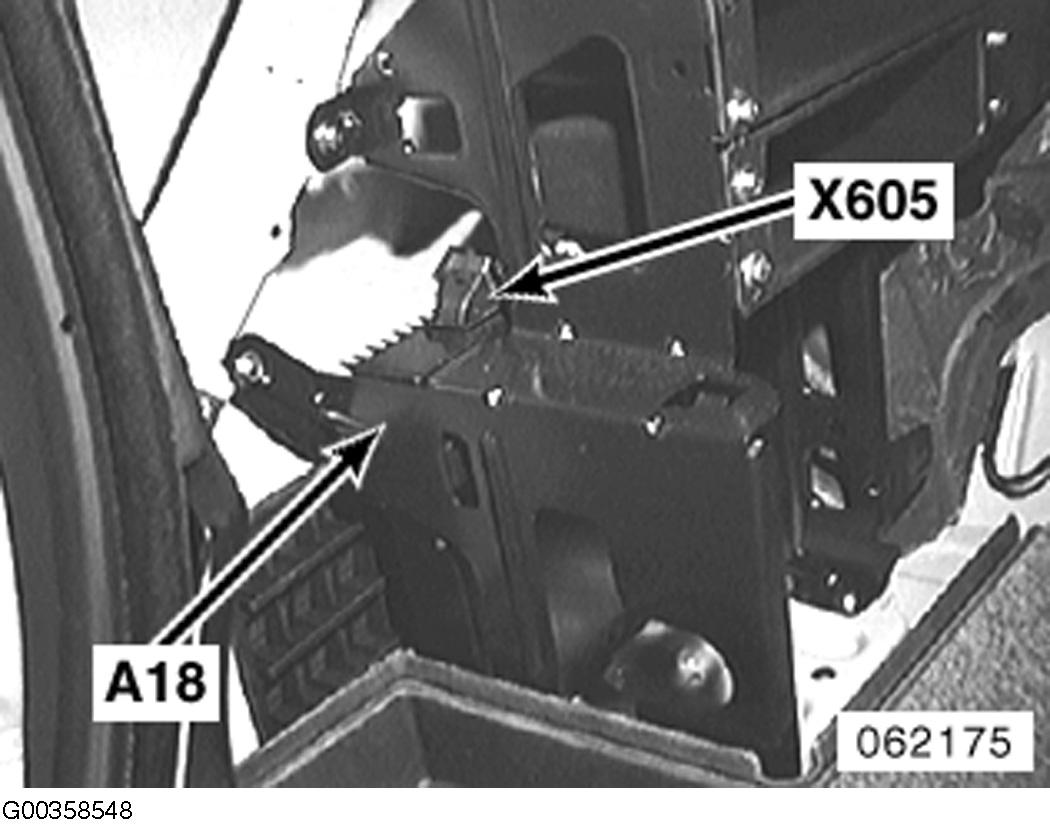

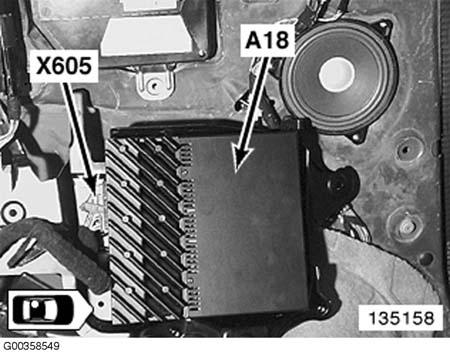

| Amplifier (A18) (Convertible) | Left rear passenger compartment. See Figure. |
| Amplifier (A18) (Coupe) | Left side of luggage compartment. See Figure. |
| Amplifier (A18) (Sedan) | Left side of luggage compartment. See Figure. |

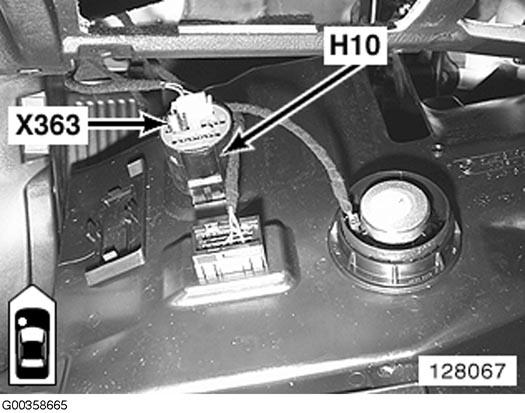

| Chime Module (H10) | Left footwell. See Figure. |

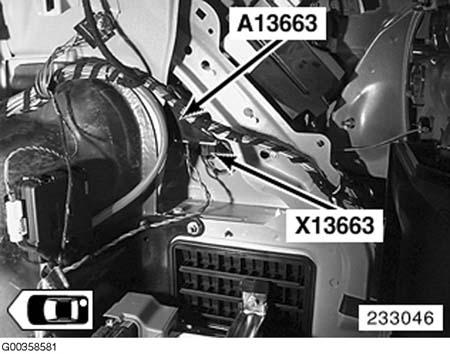

| Control Module, Controlled Fuel Pump (EKP) (A13663) | Right rear side of luggage compartment. See Figure. |

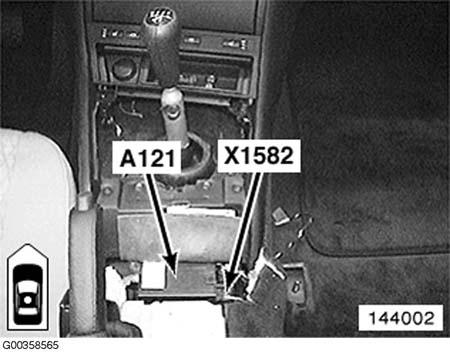

| Control Module, Interior Protection I (A121) (Convertible) | Under center console. See Figure. |

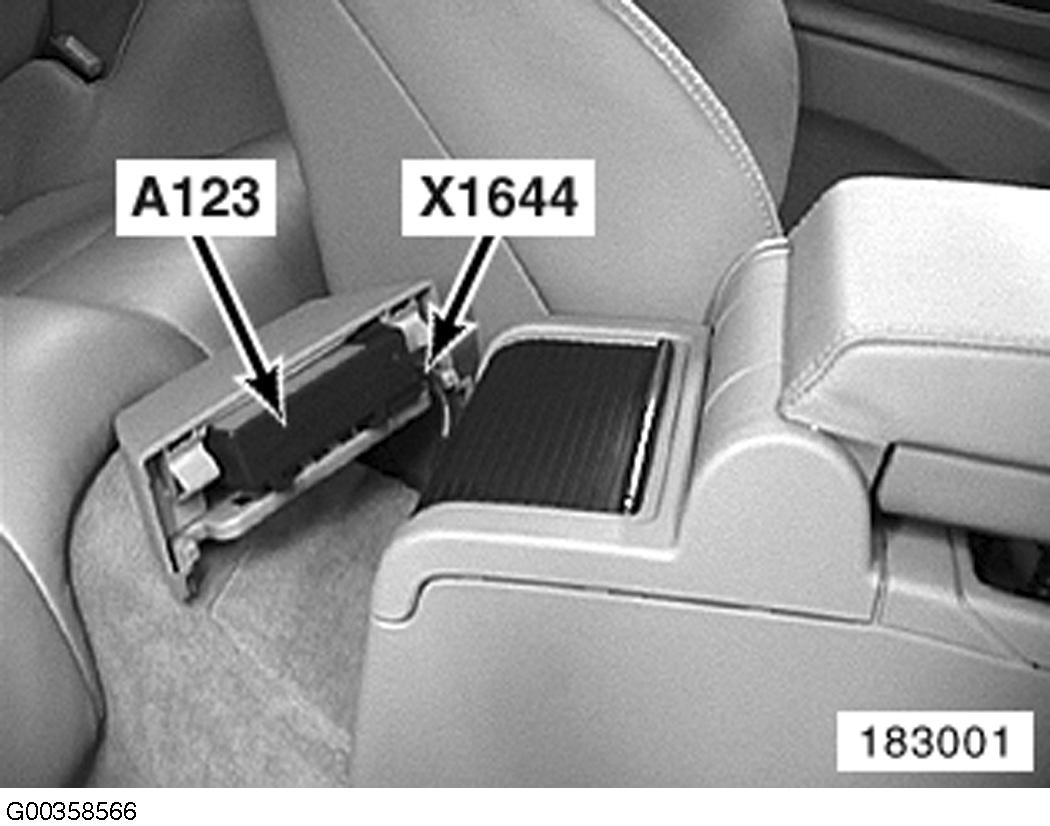

| Control Module, Interior Protection II (A123) (Convertible) | Rear center console. See Figure. |

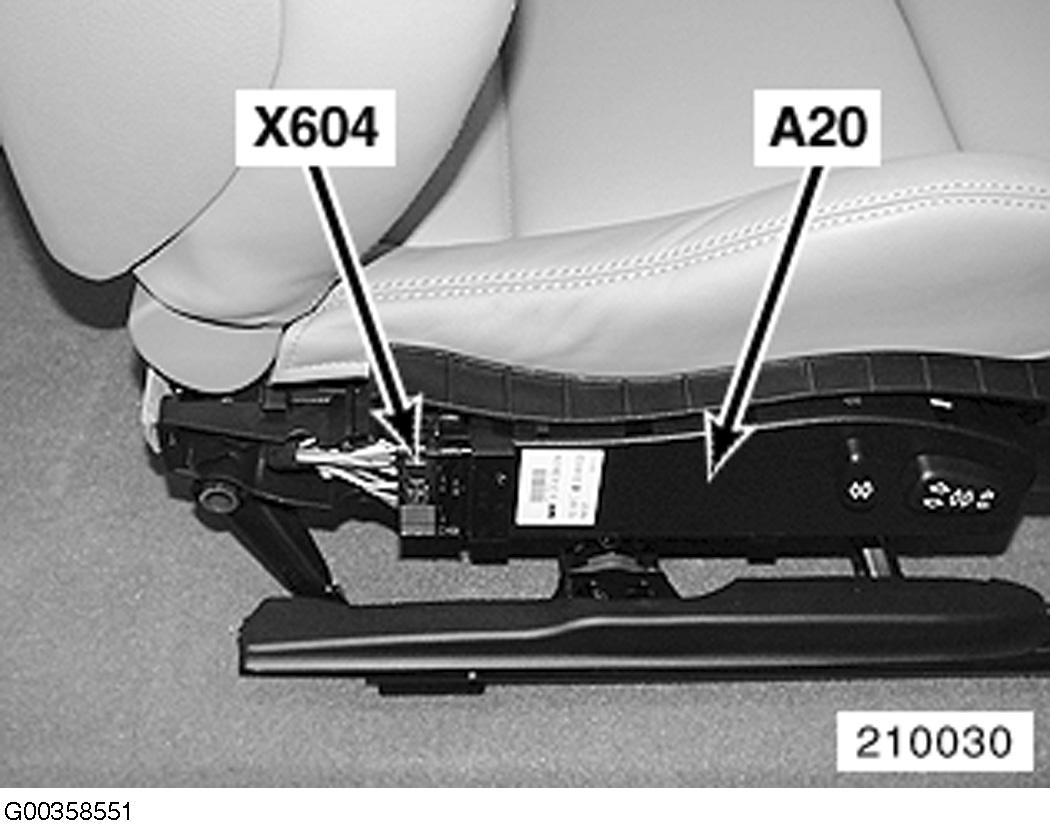

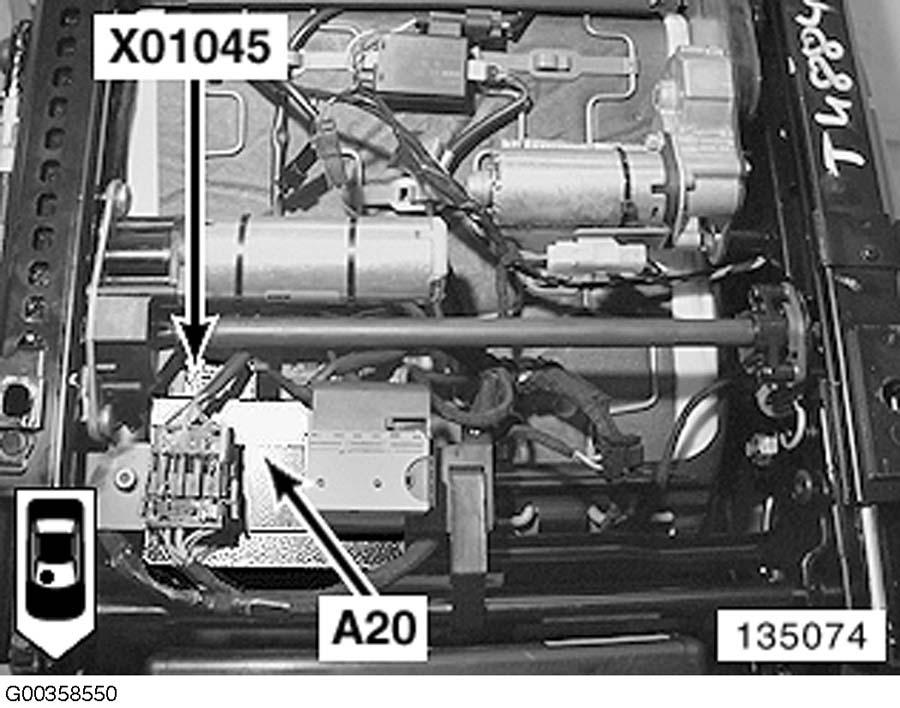

| Control Unit, Front Passenger Seat Memory (A20) (Convertible) | Under passenger's seat. See Figure. |
| Control Unit, Front Passenger Seat Memory (A20) (Coupe) | Passenger's seat. See Figure. |
| Control Unit, Front Passenger Seat Memory (A20) (Sedan) | Passenger's seat. See Figure. |

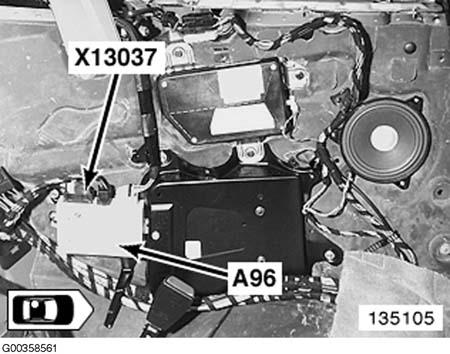

| Convertible Soft Top Control Module (A96) | Left rear passenger compartment. See Figure. |

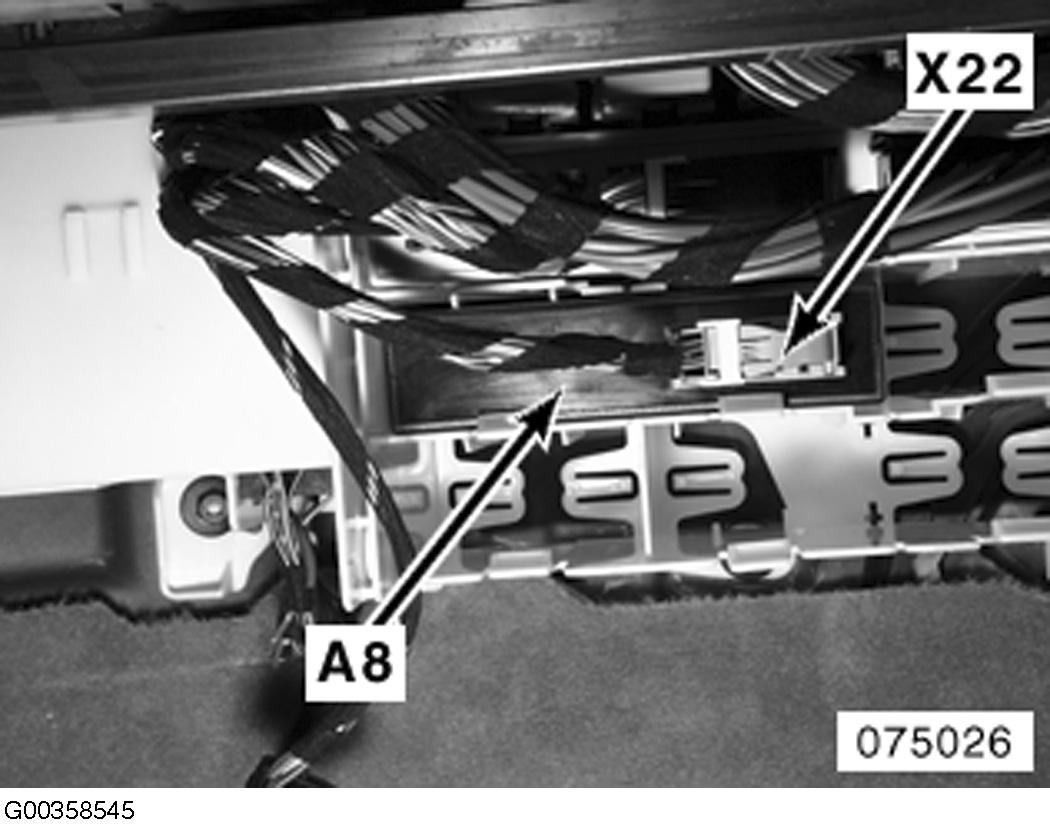

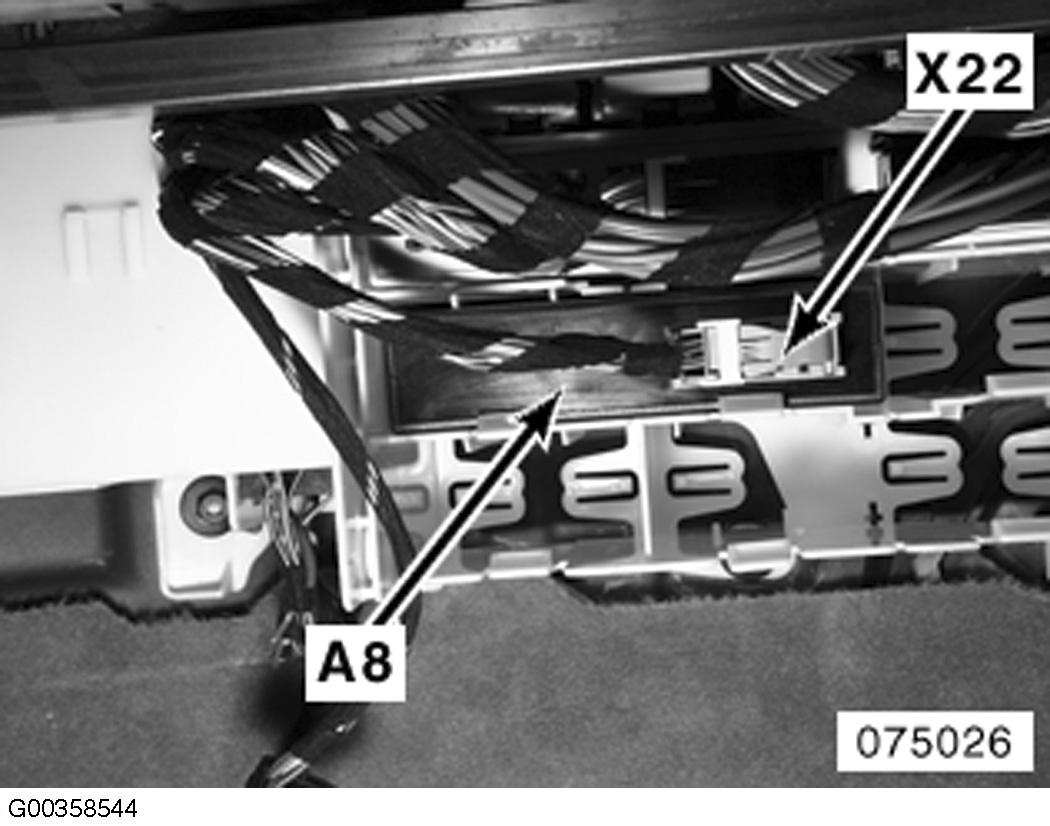

| Cruise Control Module (A8) | Behind glove box. See Figure. |

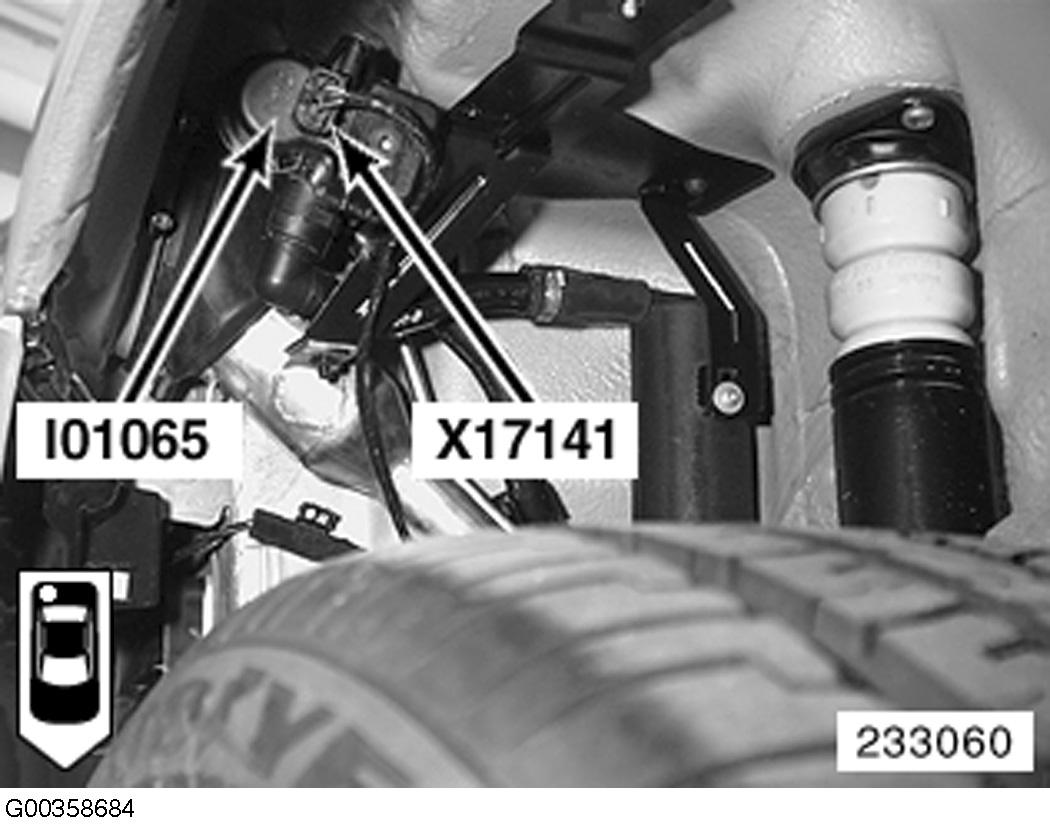

| Diagnostic Module, Fuel Tank Leakage (I01065) | Right rear wheelwell. See Figure. |

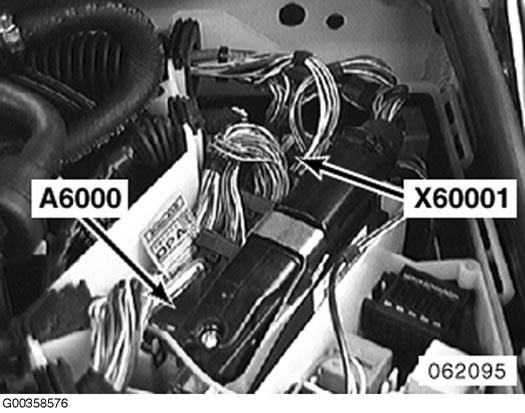

| Digital Motor Electronics Control Unit (A6000) | Left rear engine compartment. See Figure. |

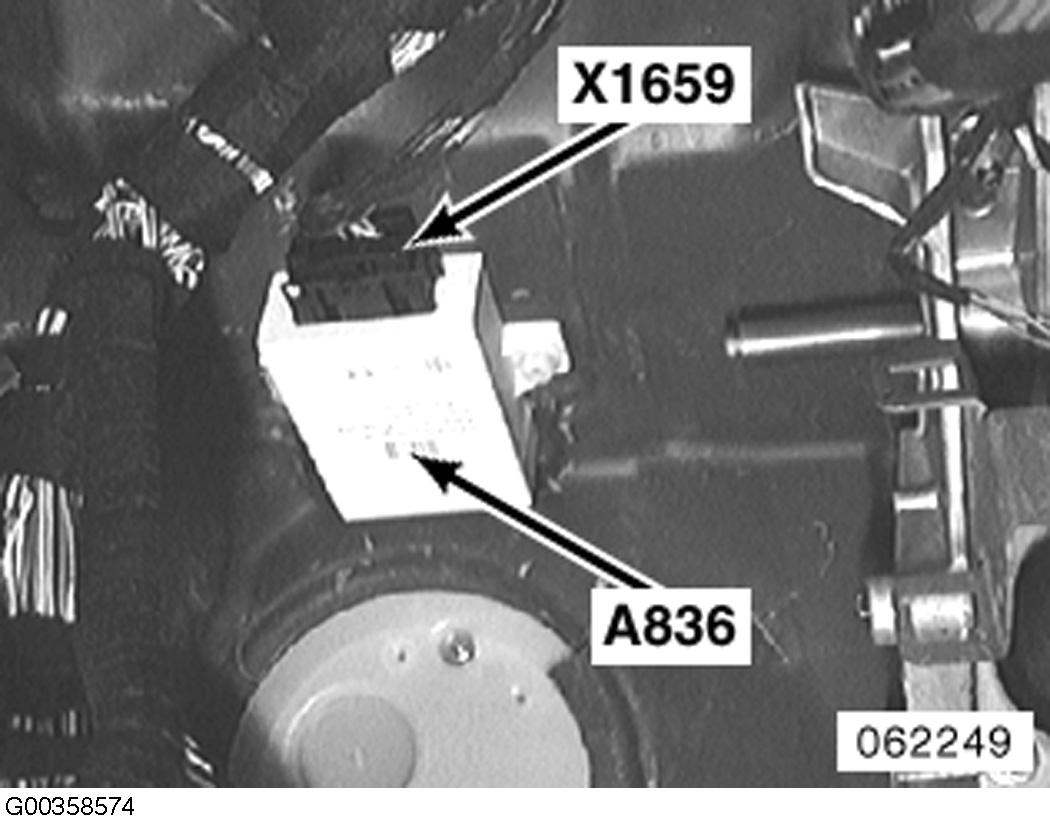

| Electronic Immobilizer Control Unit (A836) | Under left side of dash. See Figure. |
| General Module Control Unit (A1) | Behind glove box. See Figure. |

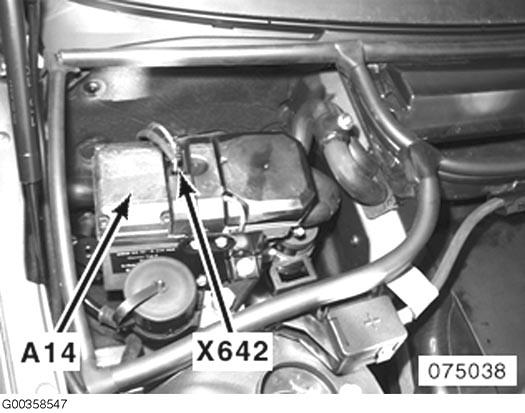

| Independent Park Heating Control Unit (A14) | Right rear of engine compartment. See Figure. |

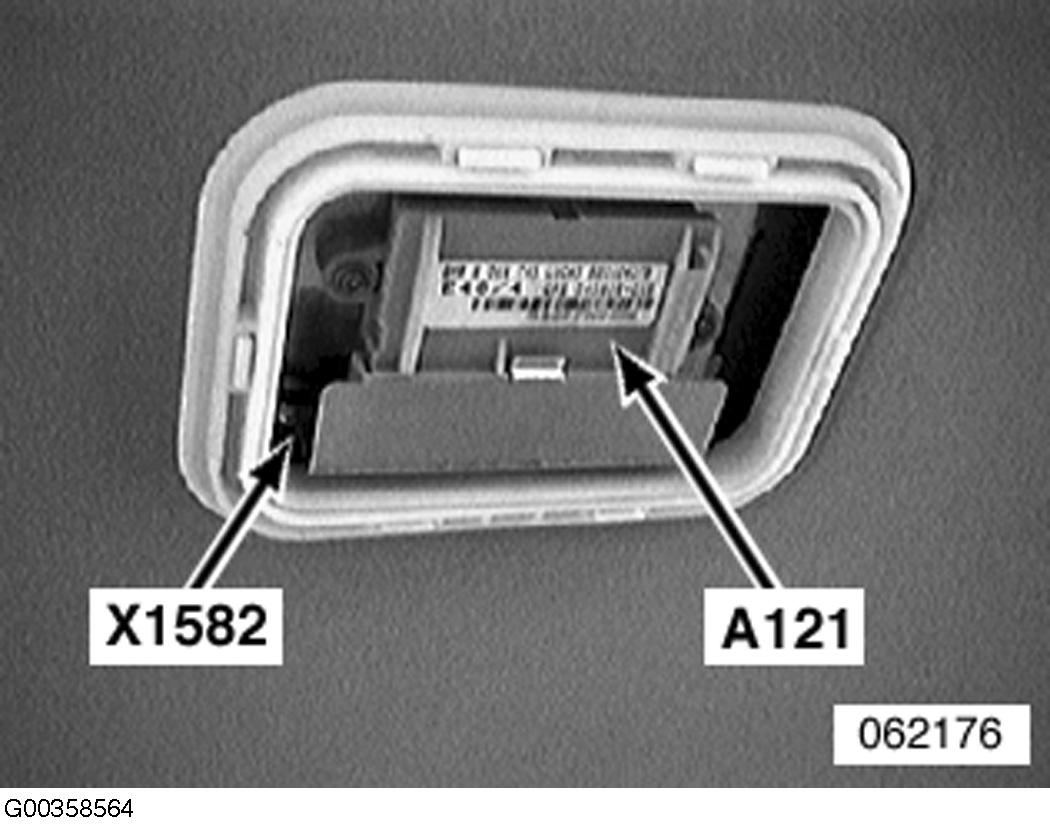

| Interior Protection Control Unit (A121) (Except Convertible) | Headliner. See Figure. |

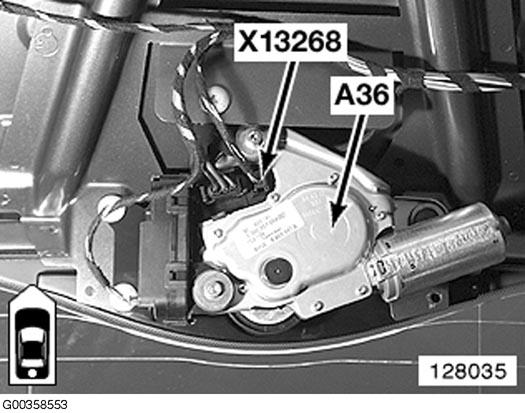

| Intermittent Wipe/Wash Control Unit, Rear (A36) | Lift gate. See Figure. |

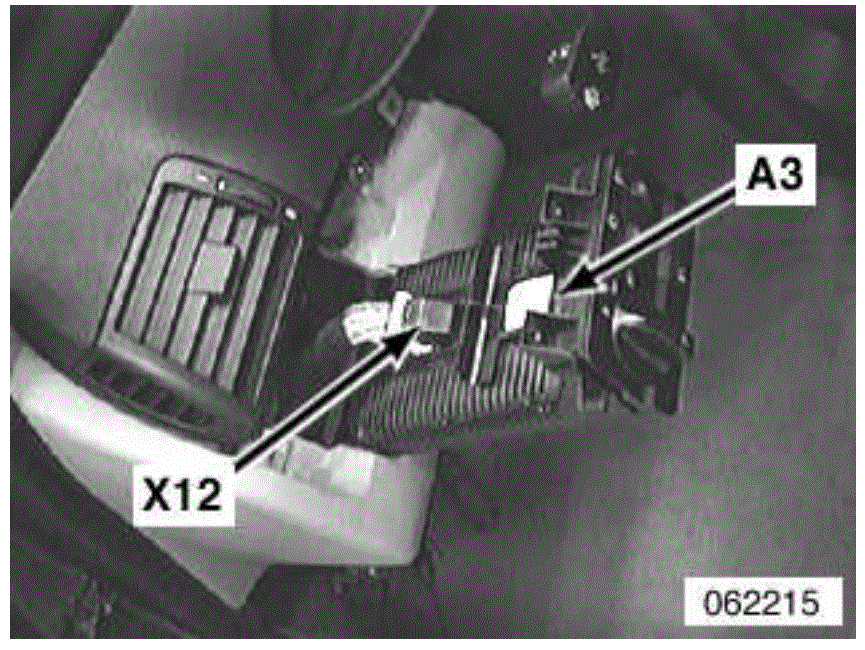

| Light Switching Center Control Unit (A3) | Driver side Instrument Panel. See Figure. |

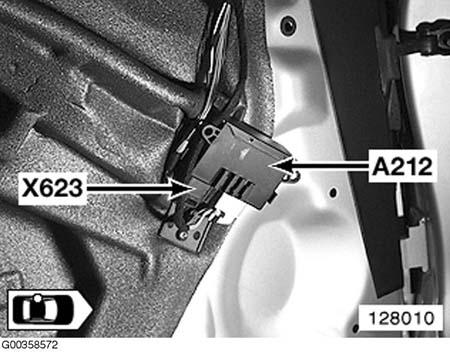

| Mirror Memory Control Unit, Driver's Side (A212) | Driver's door. See Figure. |

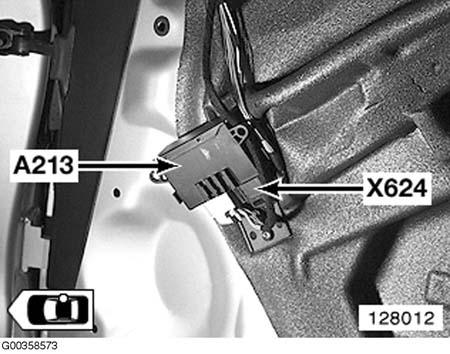

| Mirror Memory Control Unit, Front Passenger's Side (A213) | Passenger's door. See Figure. |

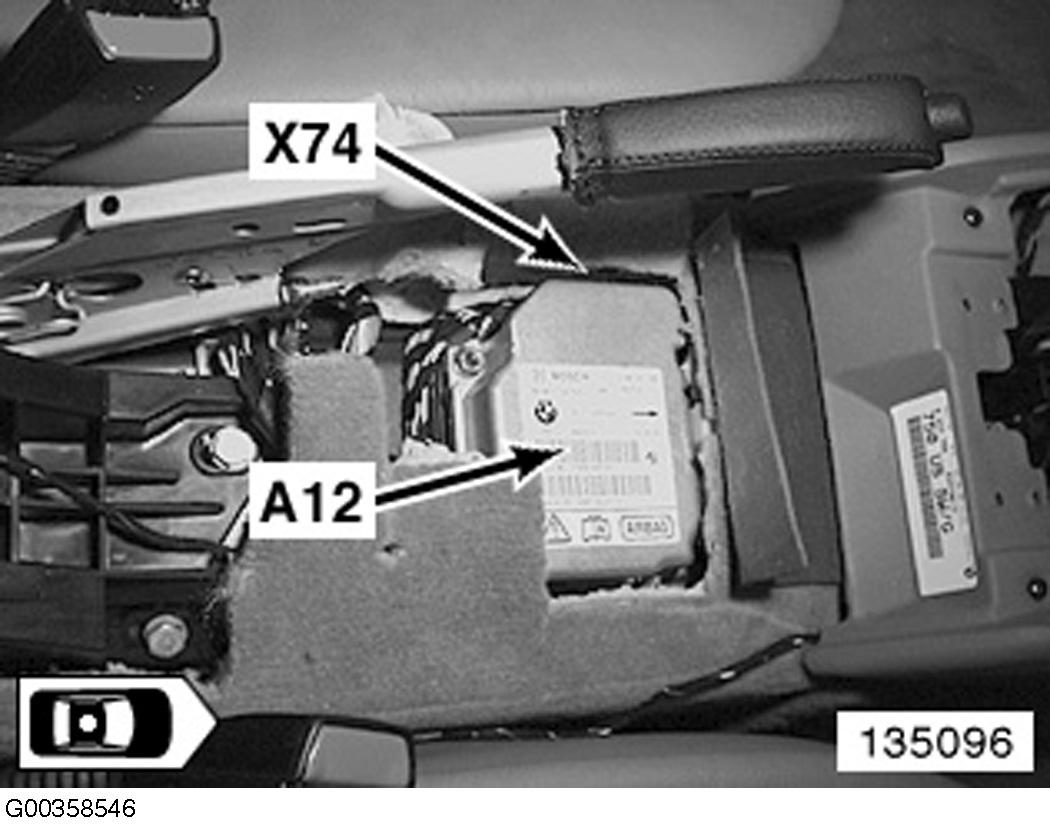

| Multiple Restraint System Control Unit (A12) | Under center console. See Figure. |

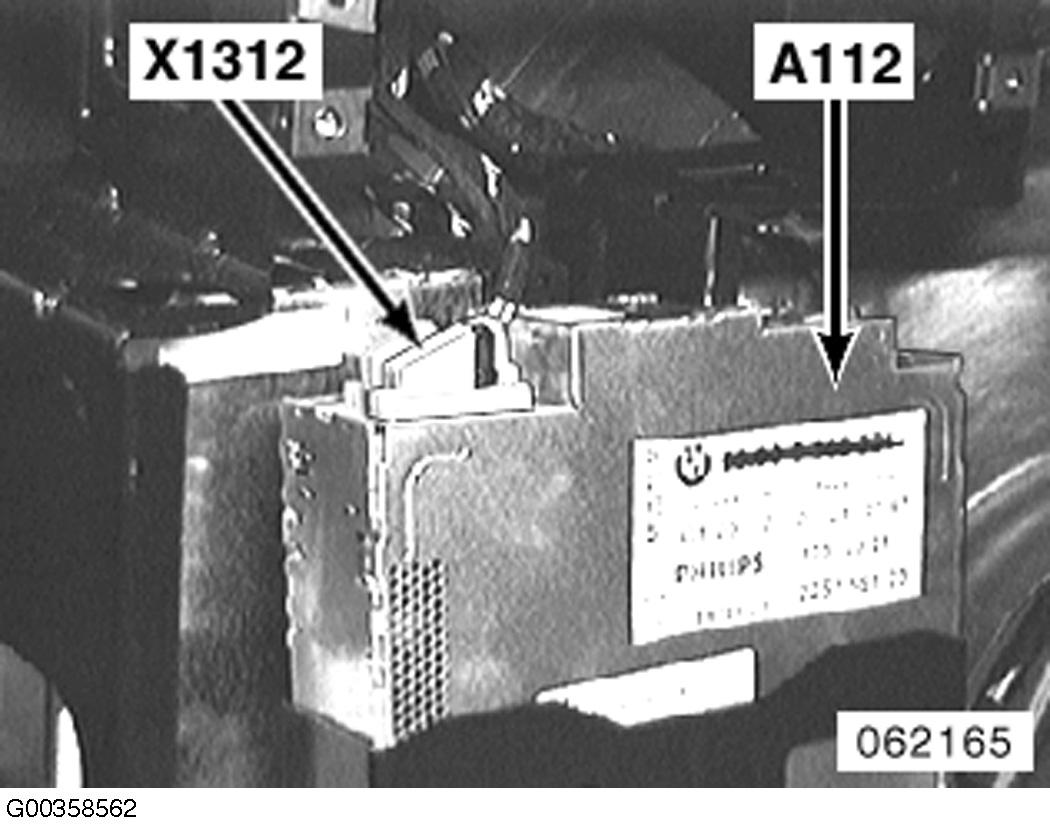

| Navigation Computer (A112) | Left side of luggage compartment. See Figure. |

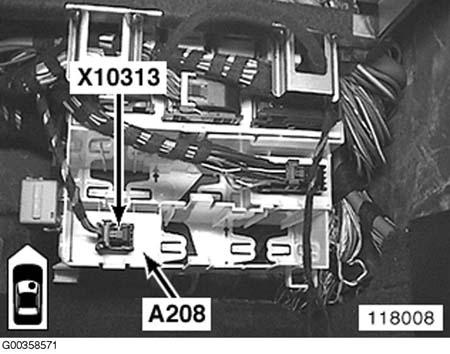

| Outside Mirror Fold-In Control Unit (A208) | Behind glove box. See Figure. |

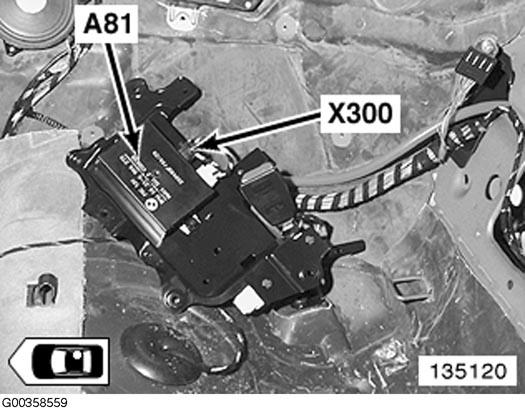

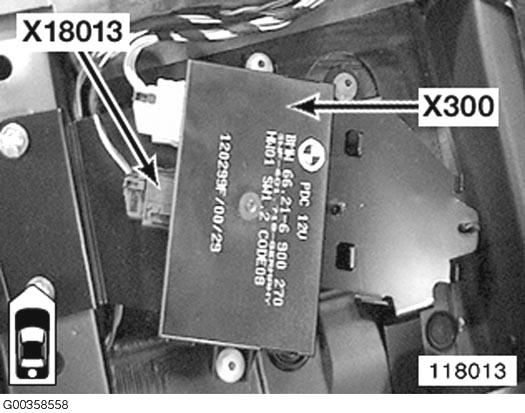

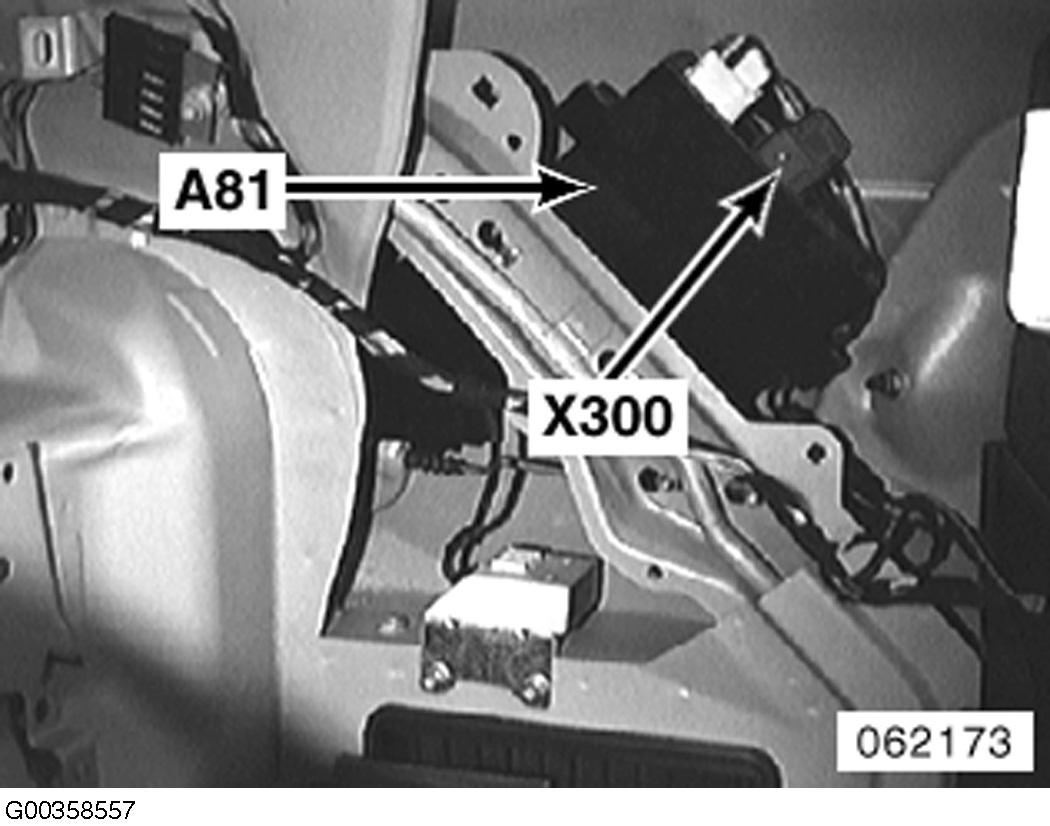

| Park Distance Control Unit (PDC) (A81) (Convertible) | Right rear passenger compartment. See Figure. |
| Park Distance Control Unit (PDC) (A81) (Coupe) | Right side of luggage compartment. See Figure. |
| Park Distance Control Unit (PDC) (A81) (Sedan) | Right side of luggage compartment. See Figure. |
| Park Distance Control Unit (PDC) (A81) (Wagon) | Behind rear seat backrest in luggage compartment. See Figure. |

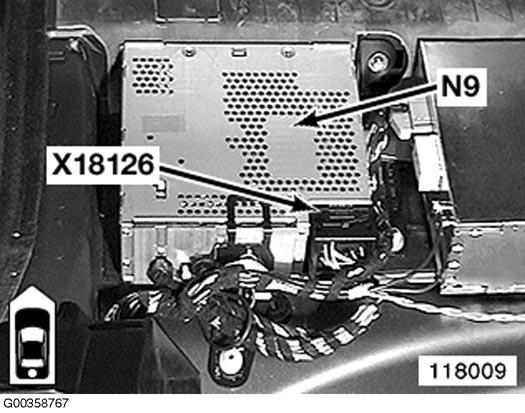

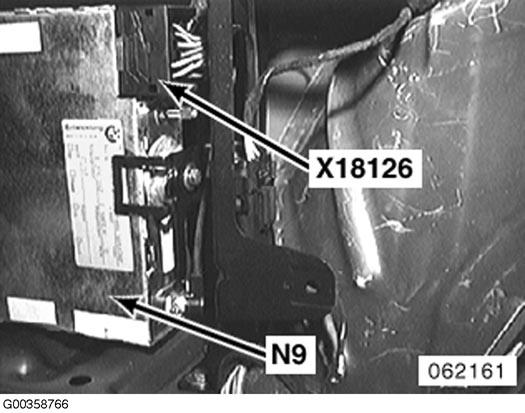

| Radio Control Unit (N9) (Except Wagon) | Left side of luggage compartment. See Figure. |
| Radio Control Unit (N9) (Wagon) | Behind rear seat backrest in luggage compartment. See Figure. |

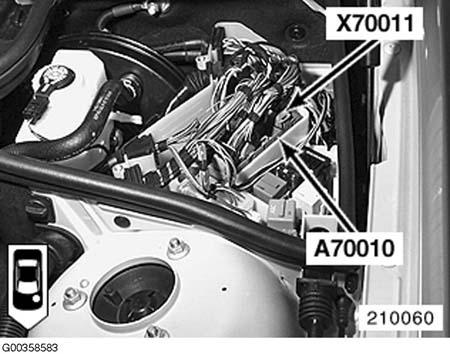

| SMG Control Module (A70010) | Left rear engine compartment. See Figure. |

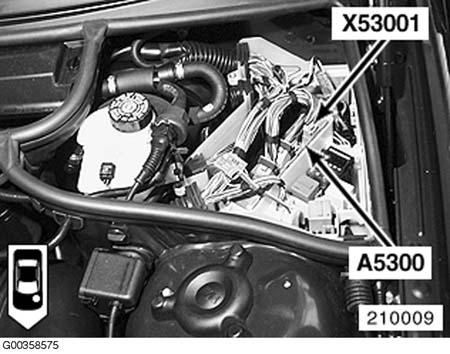

| SMG2 Control Module (A5300) | Left rear engine compartment. See Figure. |

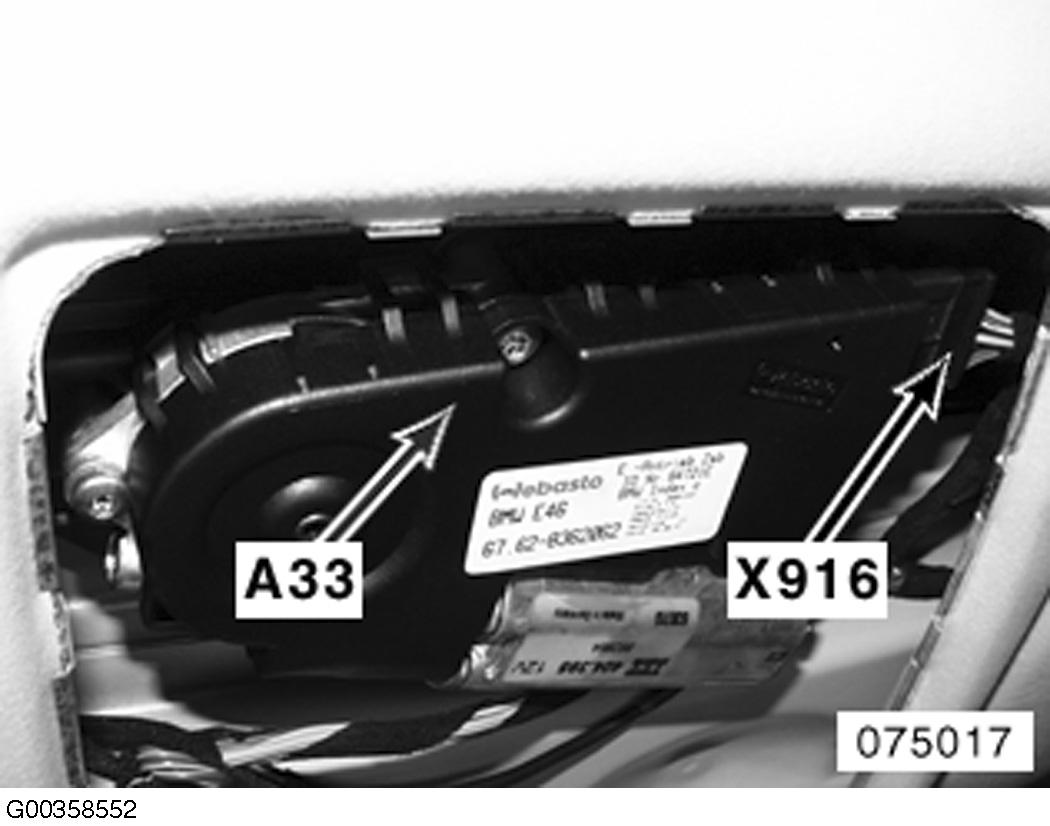

| Sunroof Module Control Unit (A33) | Front headliner. See Figure. |

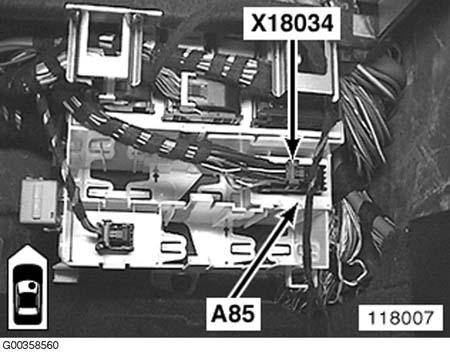

| Tire Pressure Control System Control Unit (A85) | Behind glove box. See Figure. |

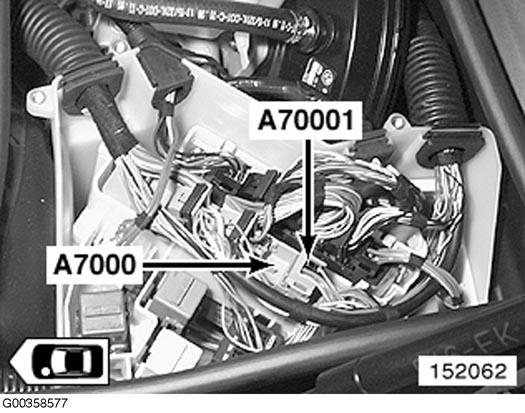

| Transmission Control Unit (A7000) | Left rear engine compartment. See Figure. |

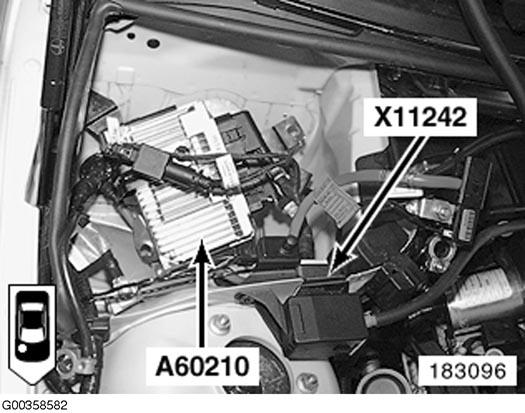

| Variable Valve Timing Gear Control Module (A60210) | Right rear engine compartment. See Figure. |

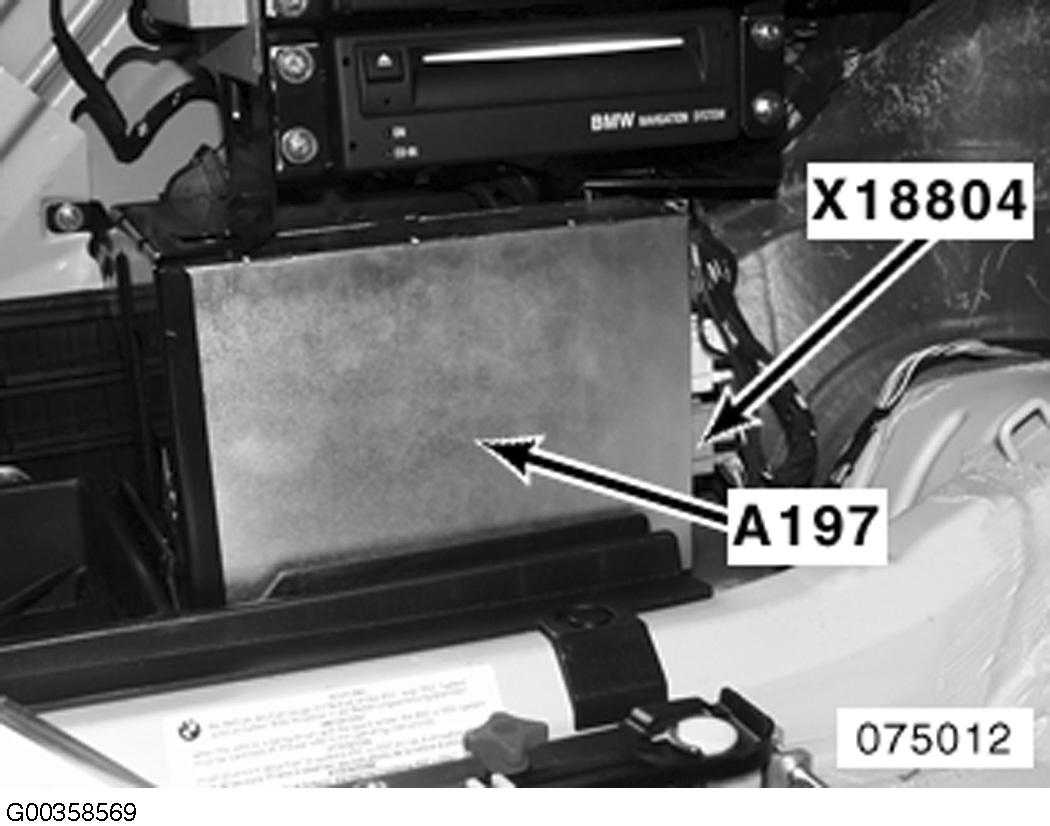

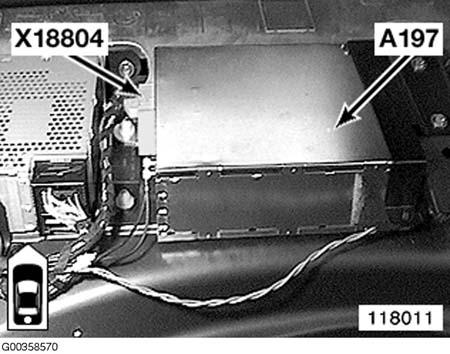

| Video Module Control Unit (A197) (Except Wagon) | Left side of luggage compartment. See Figure. |
| Video Module Control Unit (A197) (Wagon) | Behind rear seat in luggage compartment. See Figure. |
