Diagnosis And Programming: Notes

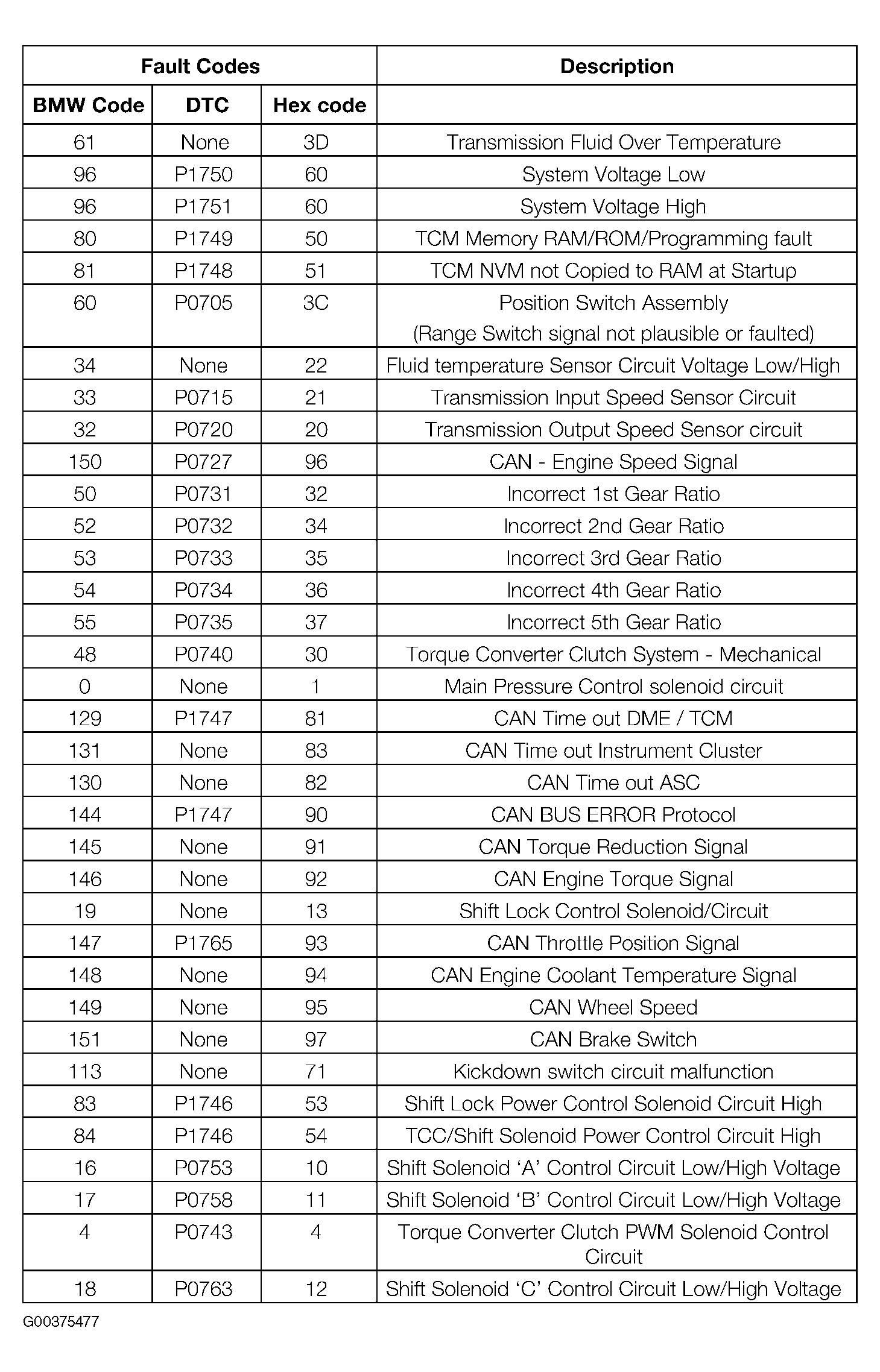

The E46 diagnostic concept provides an minimization of fault symptom selections based on areas of selection. Follow the test schedule provided by the DIS/MoDiC. The test schedule is based on the selected fault symptom and stored fault codes. The GS 20 monitors the A5S 360R and interfacing systems. When faults are detected, the GS 20 stores the following fault codes. See Fig 1 .
