Technical Data: Notes

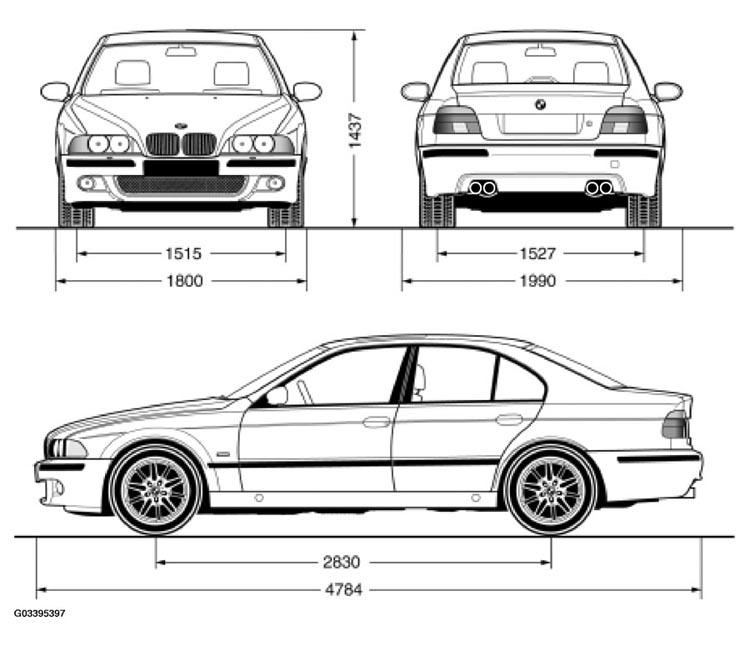

The overall body dimensions of the M5 have changed compared to the E39 sedan as follows:
- The M5 is 10 mm longer than the E39 540i. This is due to the design of the license plate mounting brackets.
- The body height is increased by 2 mm over the E39 540i. This is due to the different wheels and tires used on the M5.
- The body width is the same as the E39 540i. However, the overall width is 9 mm wider due to the specific M sport mirror design.
TECHNICAL DATA
| Technical Data | ||
|---|---|---|
| M5 | 540i | |
| Length (mm) | 4784 | 4775 |
| Width Min/Max (mm) | 1800/1990 | 1800/1981 |
| Height (mm) | 1437 | 1435 |
| Cd | 0.31 | 0.31 |
| Turning Circle | 11.6 | 11.1 |
| Wheelbase (mm) | 2830 | |
| Track Width (mm) Rear Front |
1517 1527 |
1512 1526 |
| Unladen Weight (kg) | 1790 | 1680 |
| Gross Vehicle Weight (kg) | 2290 | 2170 |
| Trunk Capacity (I) | 460 | |
| Fuel Tank Capacity (I) | 70 (18.5 US Gallons) | |
