86 10 ... Disassembly of loading ramp frame/disassembly of rail, left/right
NOTE:
Two persons are required to disassemble the loading ramp frame.
Disassembly of license plate mounting plate refer to 86 10 ... Disassembly of licence plate mounting plate Disassembly of license plate mounting plate.
Disassembly of pull rod refer to 86 10 ... Removing overrunning equipment/maintaining or replacing guide bush/installing overrunning equipment .

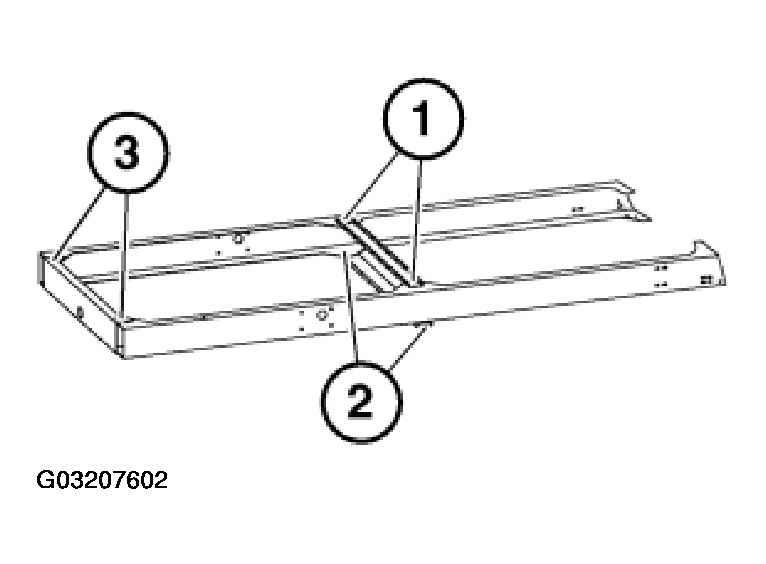

Release screws (1) of loading ramp frame (2) on cross-strut (3).
Installation:
Tightening Torque, 11.5 Nm.

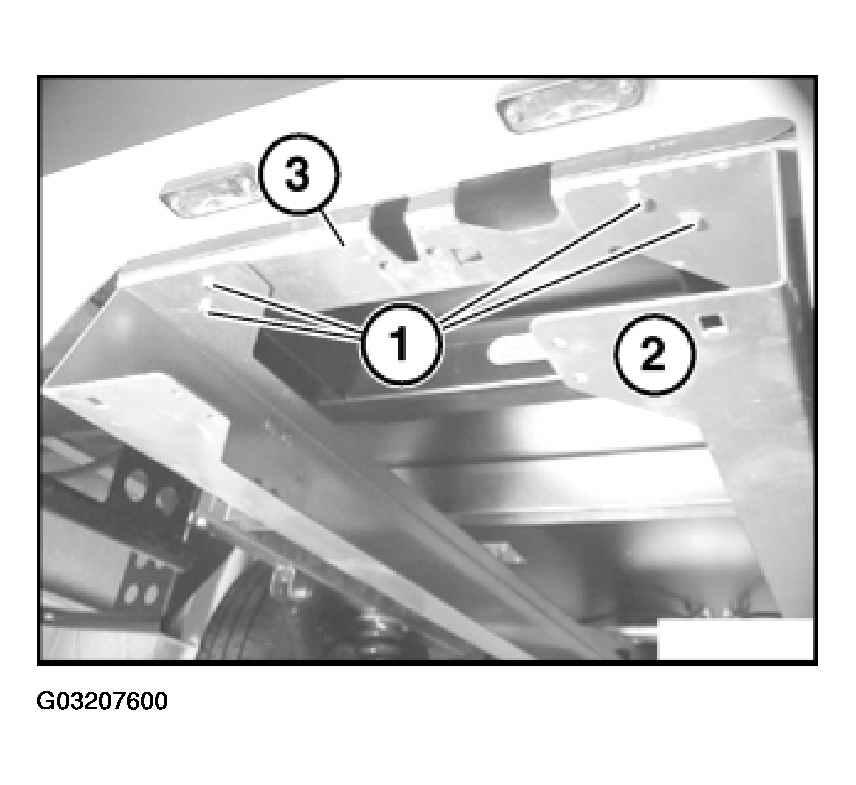

Release screws (1, 2) on left and right sides of loading ramp frame (3).
Installation:
Use new self-locking nuts.
Tightening Torque, 11.5 Nm.

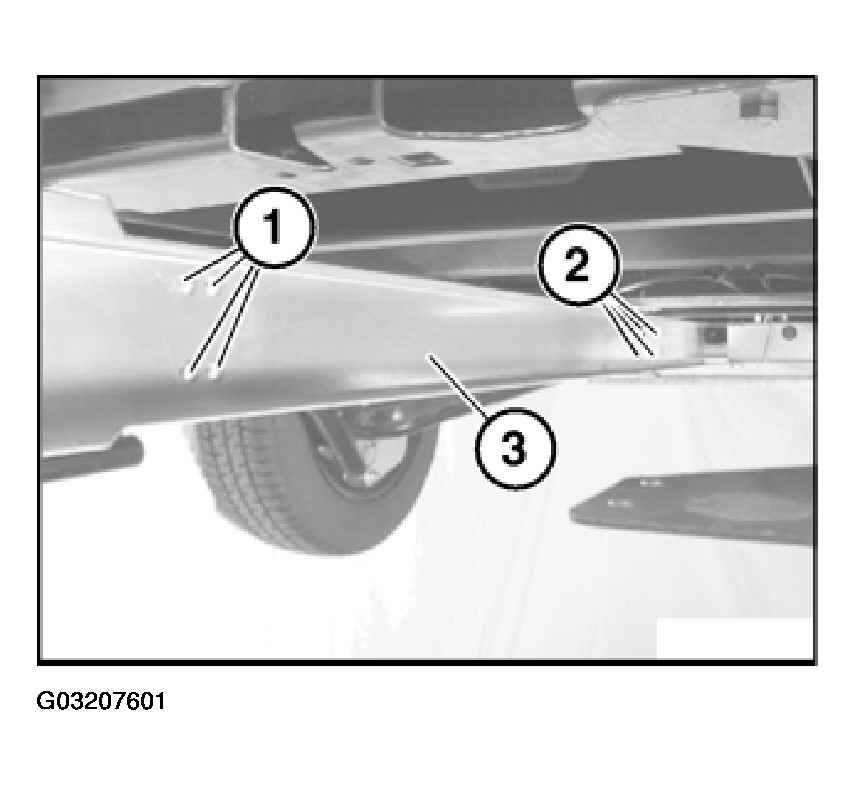

Release screws (1, 2, 3).
Installation:
Use new self-locking nuts.
Tightening Torque, 5.5 Nm.
