86 10 ... Removing loading ramp lock

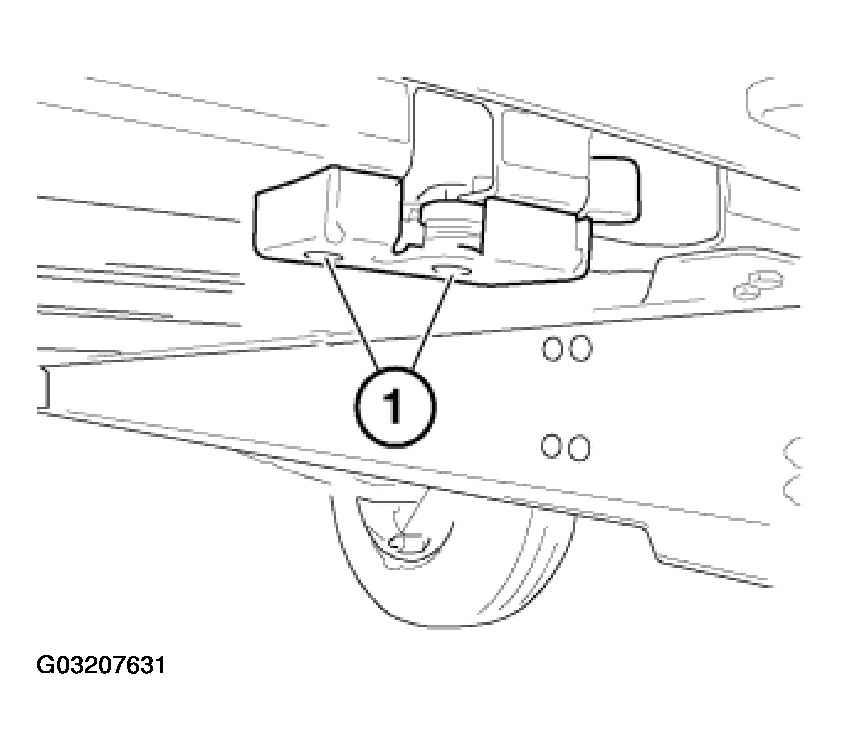

Unscrew bolts (1).

Fig 1: Identifying Ramp Lock Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 18 Nm.

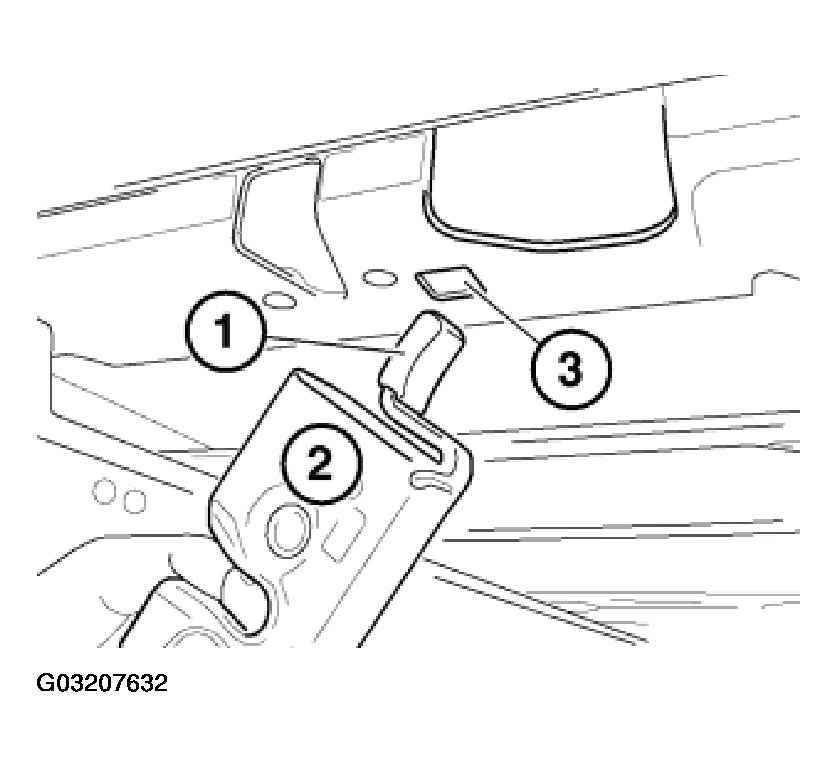

Pass lever (1) of rotary striker lock (2) out of square hole (3) by twisting from side to side.

Fig 2: Removing Lever Of Rotary Striker Lock

Courtesy of BMW OF NORTH AMERICA, INC.

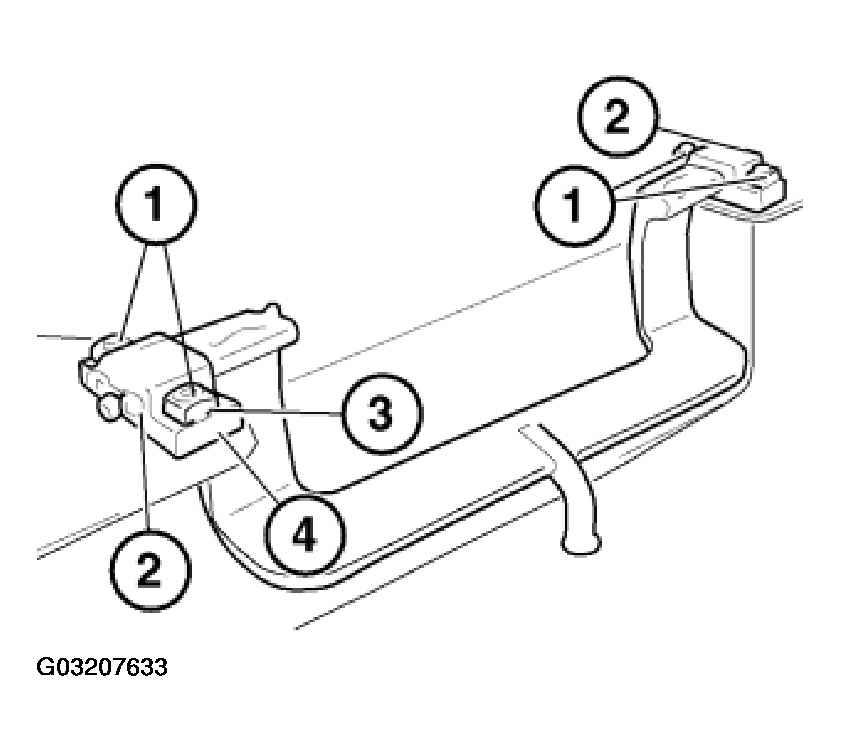

Unscrew bolts (1).

Fig 3: Identifying Securing Clip, Square-Head Nut And Bearing Pedestal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Opening for securing clip (2) points to front or rear.

Square-head nut (3) rests with its square surface parallel to bearing pedestal (4).

Tightening Torque, 10 Nm.

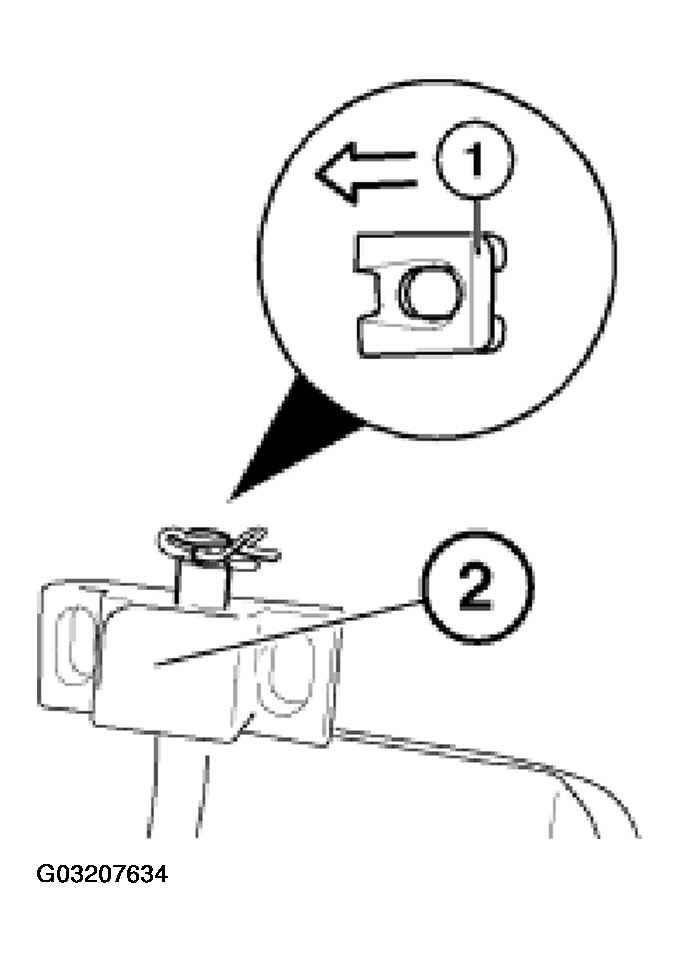

Raise edge (1) of securing clip and slide in direction of arrow towards rear.

Fig 4: Detaching Bearing Pedestal

Courtesy of BMW OF NORTH AMERICA, INC.

Detach bearing pedestal (2).

Installation:

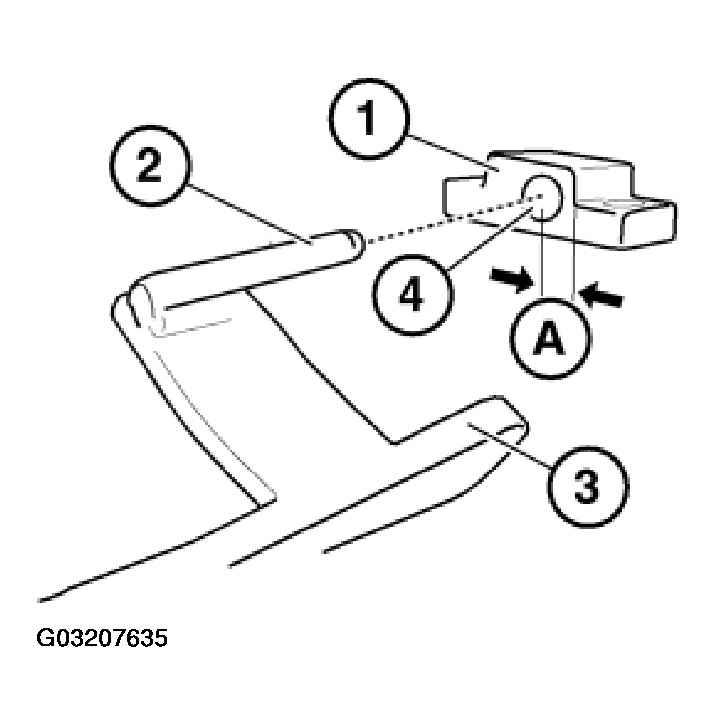

Install bearing pedestal (1) on stub (3) of locking bracket (3).

Fig 5: Installing Bearing Pedestal

Courtesy of BMW OF NORTH AMERICA, INC.

Off-center bore (4) in bearing pedestal (1) points with short distance (A) to locking bracket (3).
