86 10 ... Removing mounting bracket, center, left and right

NOTE: Disassembly of Camlock retaining cam refer to 86 10 ... Disassembly of Camlock retaining cam

Unscrew bolts (1).

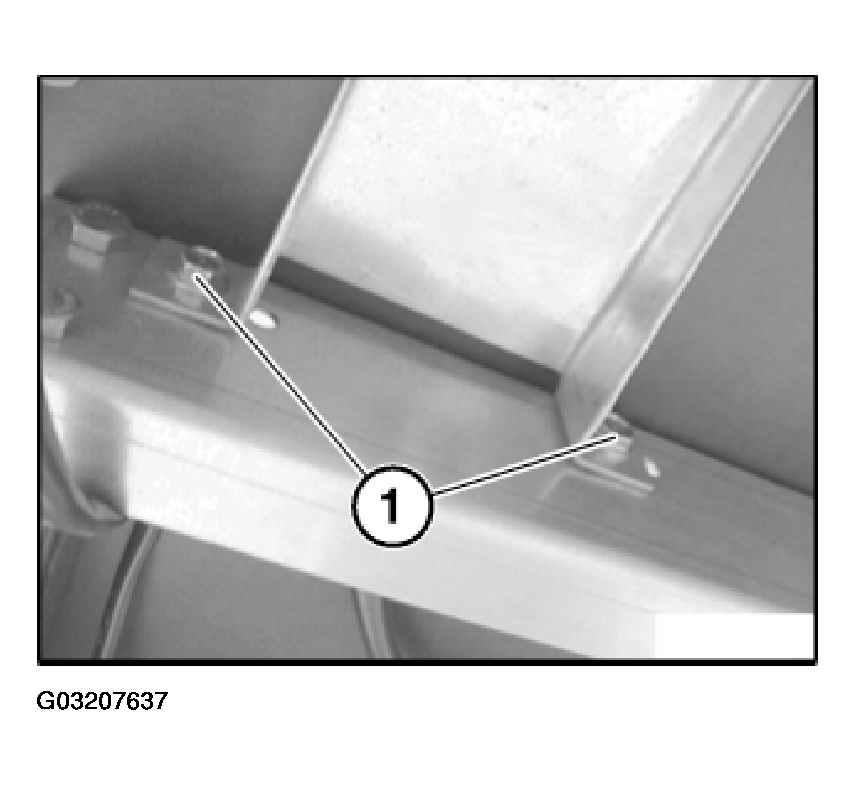

Fig 1: Identifying Mounting Bracket Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 78 Nm.
