86 10 ... Replacing bar

NOTE: Disassembly of lashing eyes, refer to 86 10 ... Replacing lashing plate and lashing eye Replacing lashing plate and lashing eye.

Remove lashing eyes (1).

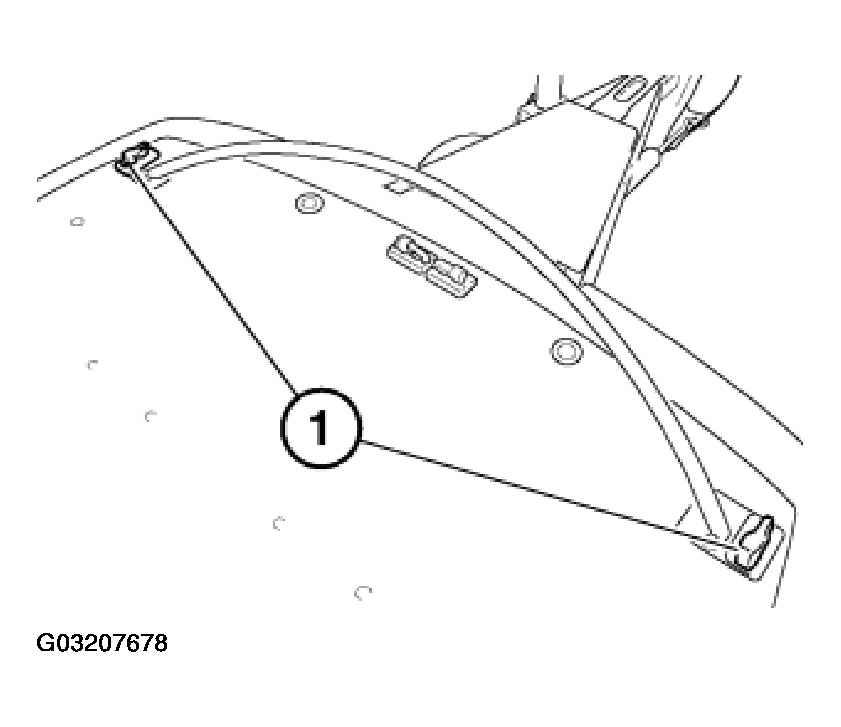

Fig 1: Removing Lashing Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective caps (1) on left/right.

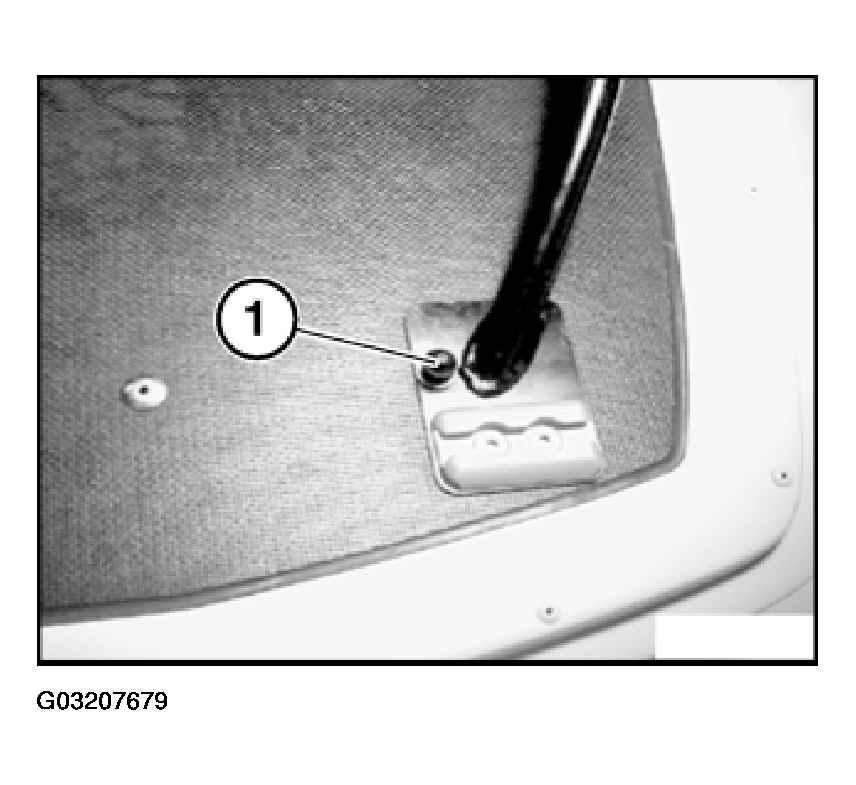

Fig 2: Removing Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon screws (1) and countersunk head screws (2) on left/right.

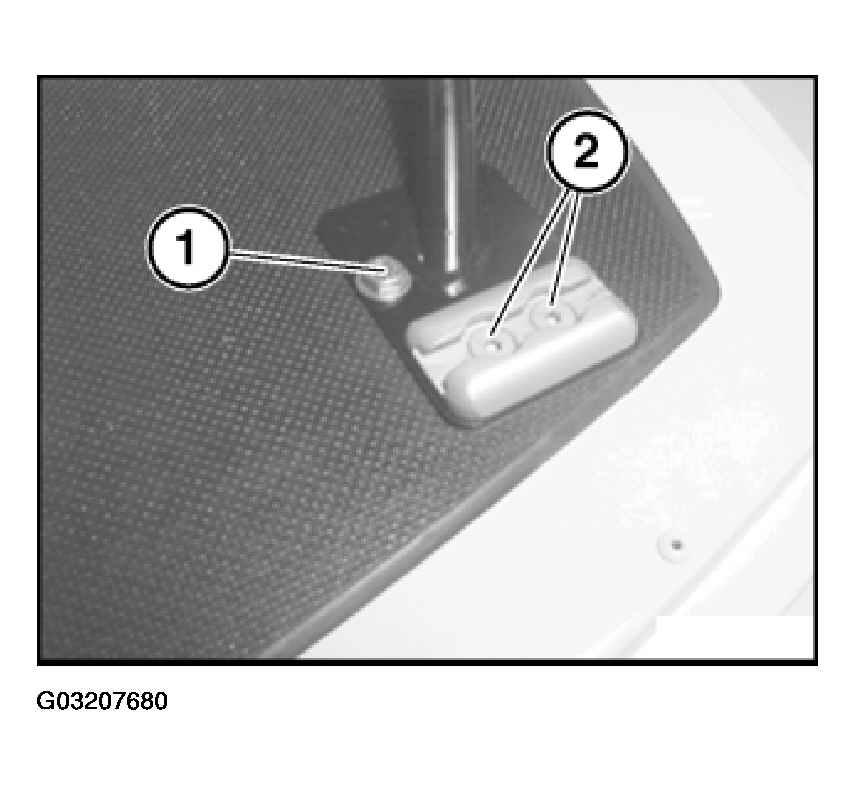

Fig 3: Removing Bar

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bar.

Installation:

Tightening Torque for hexagon screw, 23 Nm.

Tightening Torque for countersunk head screw, 15 Nm.
