86 10 ... Replacing drawbar members, left and right

NOTE: Disassembly of overrunning equipment, refer to 86 10 ... Removing overrunning equipment/maintaining or replacing guide bush/installing overrunning equipment .
Remove complete brake pull rod.
Removal of position light cable, refer to 86 10 ... Replacing license plate light .

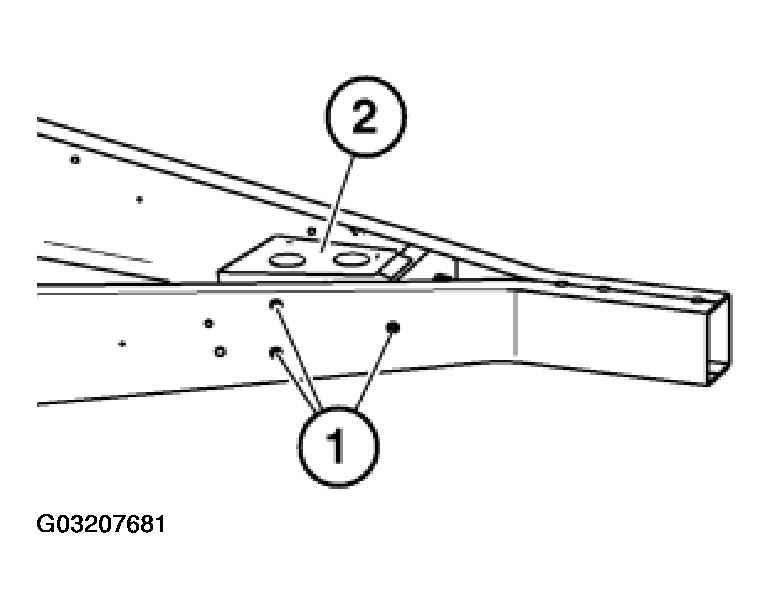

Release screws (1) on cross-member (2). Pull out crossmember (2) towards rear.

Fig 1: Pulling Out Crossmember

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 28 Nm.

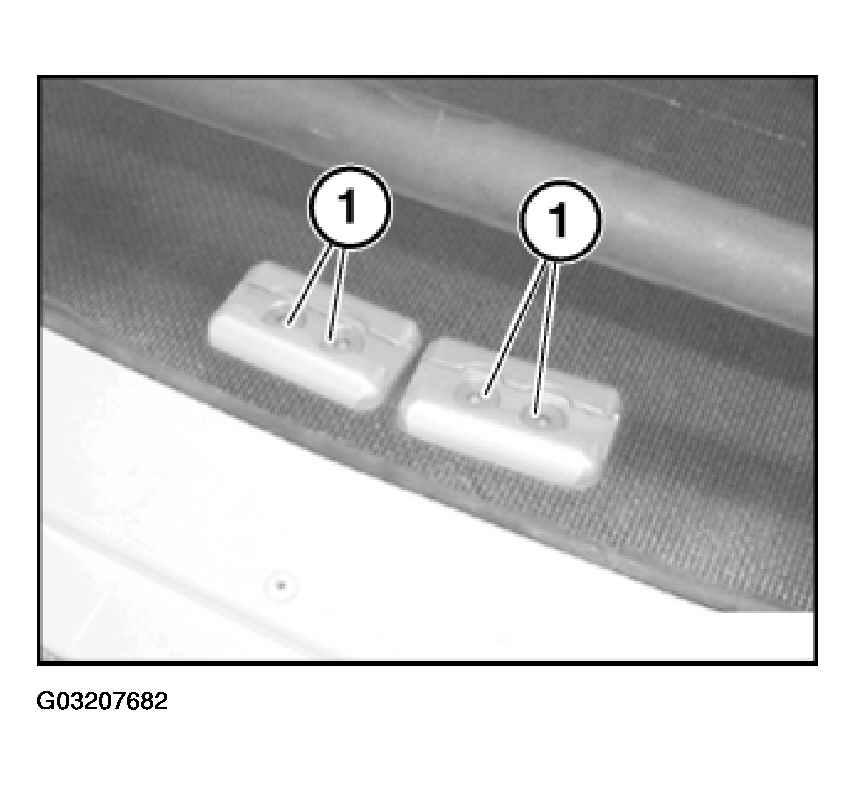

Release countersunk head screws (1) and remove.

Fig 2: Releasing Countersunk Head Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 15 Nm.

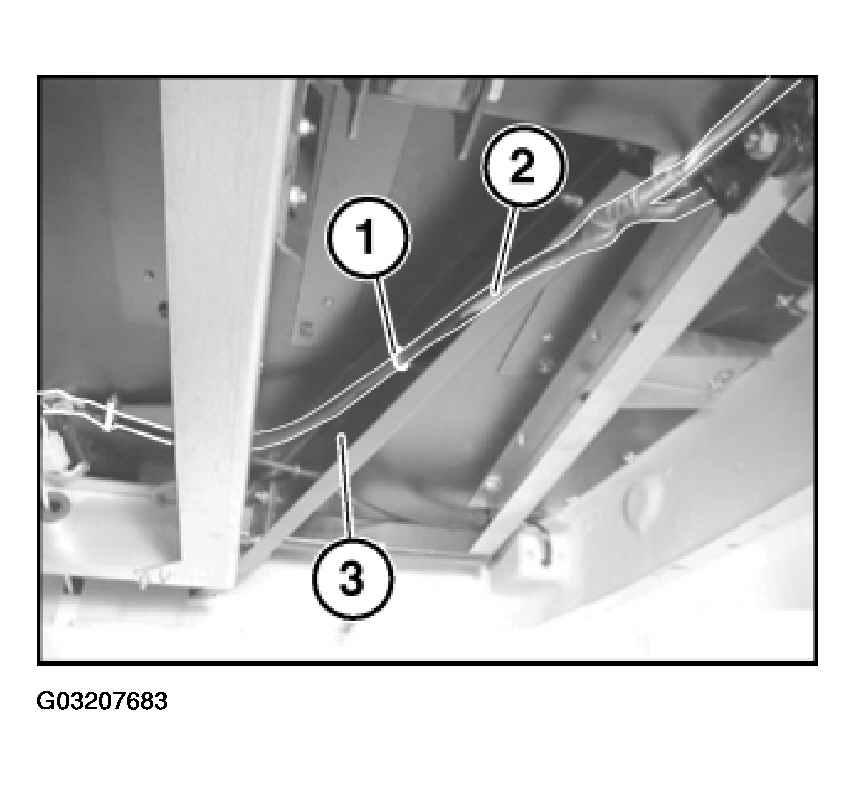

Remove cable holder (1) and remove wiring harness (2) from drawbar member (3).

Fig 3: Removing Cable Holder And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

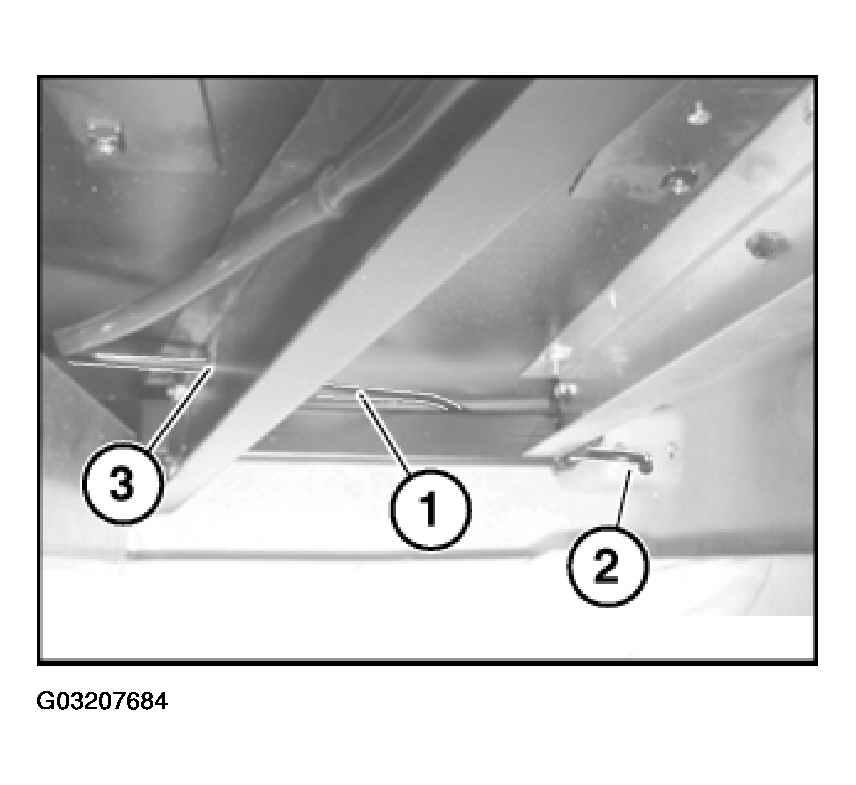

Remove cable (1) from position light housing (2). Pull out cable (1) through drawbar member aperture (3).

Fig 4: Removing Cable From Position Light Housing

Courtesy of BMW OF NORTH AMERICA, INC.

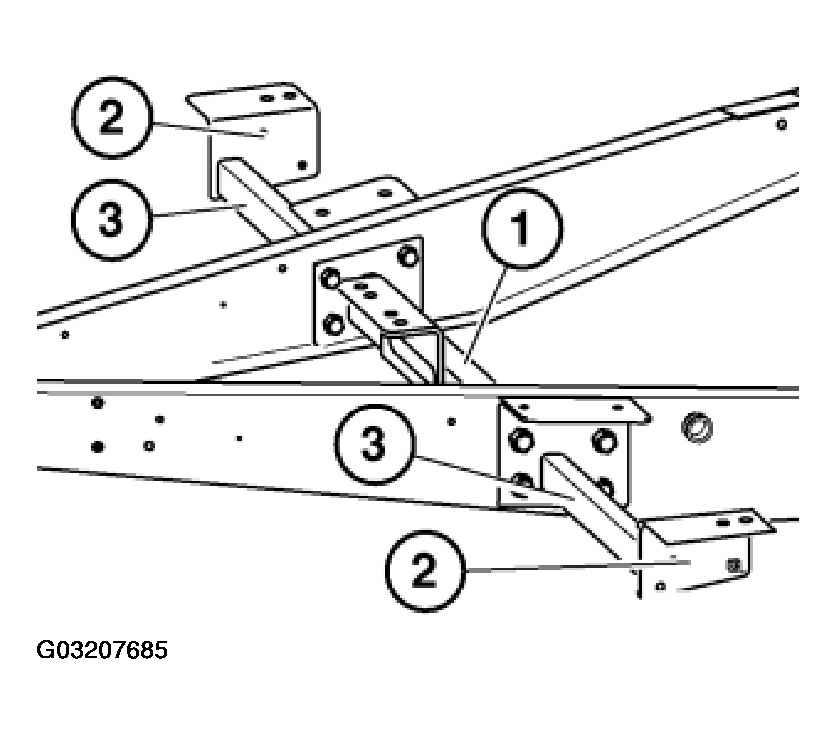

Release all screws on cross-member (1) and remove crossmember (1).

Fig 5: Removing Cross-Members

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release screws on mounting brackets (2) and remove cross-members (3).

Installation:

Use new self-locking nuts.

Tightening Torque, 70 Nm.

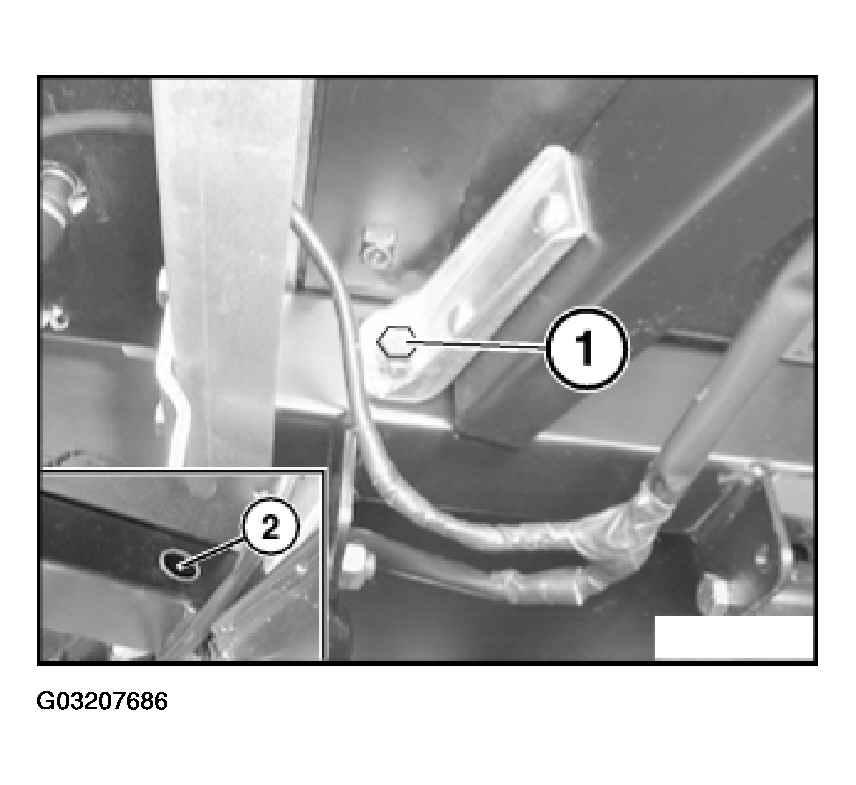

Unscrew bolt (1). Grip nut from rear through assembly hole (2) in cross-member.

Fig 6: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Use new self-locking nuts.

Tightening Torque, 28 Nm.

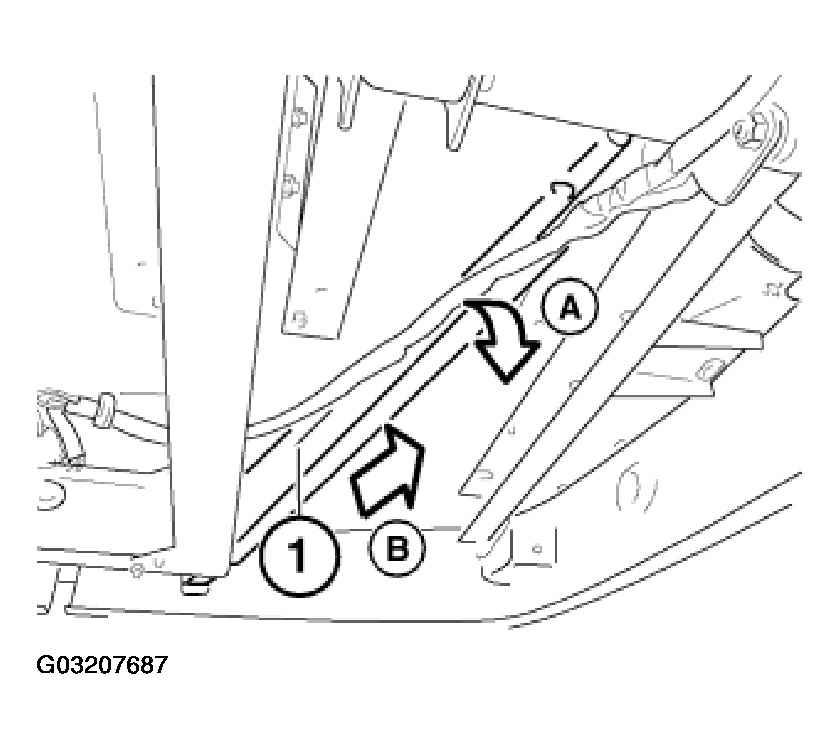

Tilt drawbar member (1) down in direction of arrow A and pull out towards rear in direction of arrow B.

Fig 7: Removing Drawbar Member

Courtesy of BMW OF NORTH AMERICA, INC.
