86 10 ... Replacing gaiter

Position brake lever fully towards rear.

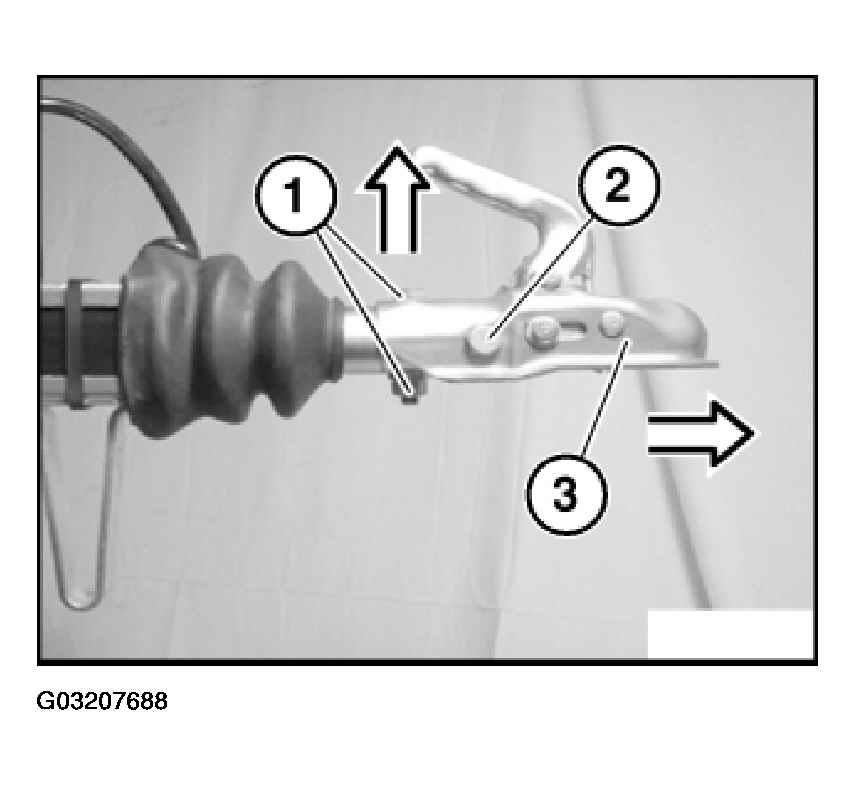

Release screws (1) and (2) and remove. Pull off towing attachment (3) in direction of arrow.

Fig 1: Pulling Off Towing Attachment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 96 Nm.

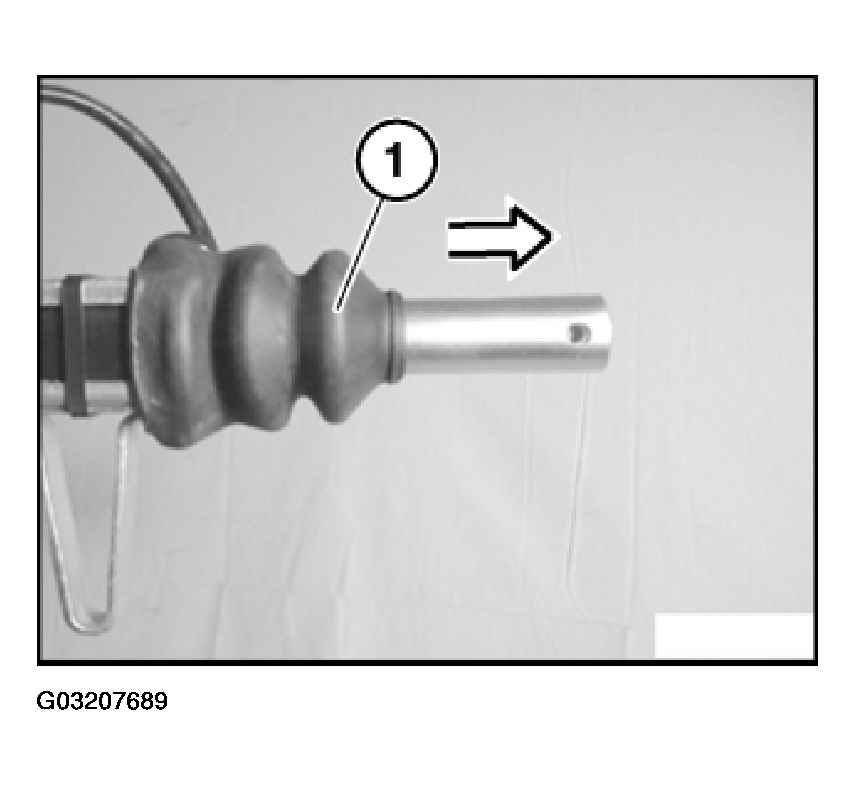

Pull off gaiter (1) in direction of arrow.

Fig 2: Pulling Off Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.
