86 10 ... Replacing rear light

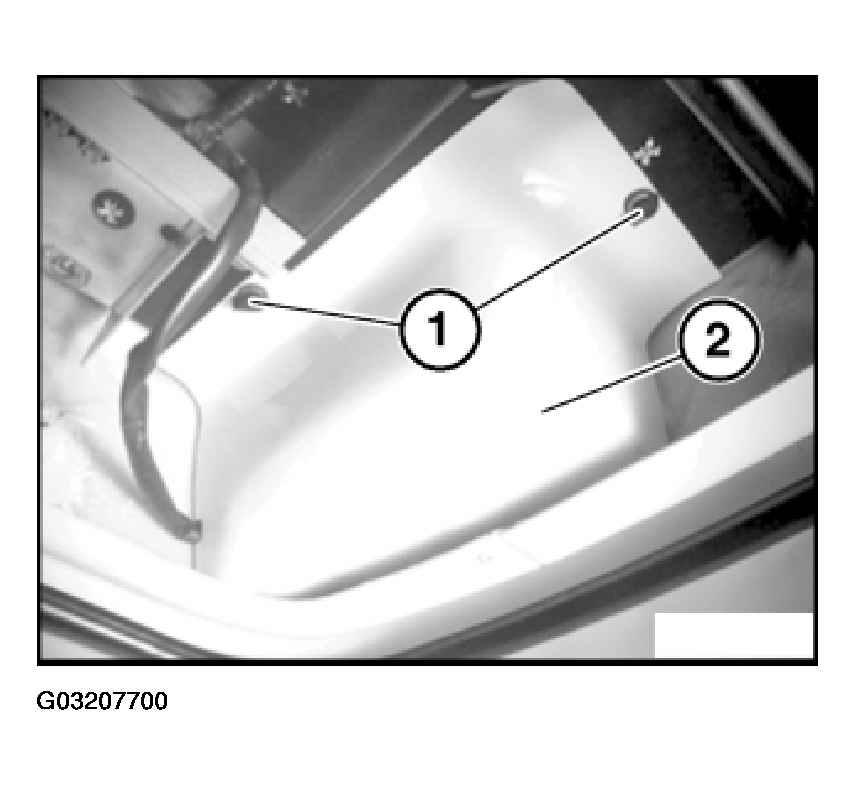

Release thumb screws (1), slide light guard (2) in direction of middle of car and tilt out towards rear.

Fig 1: Removing Light Guard

Courtesy of BMW OF NORTH AMERICA, INC.

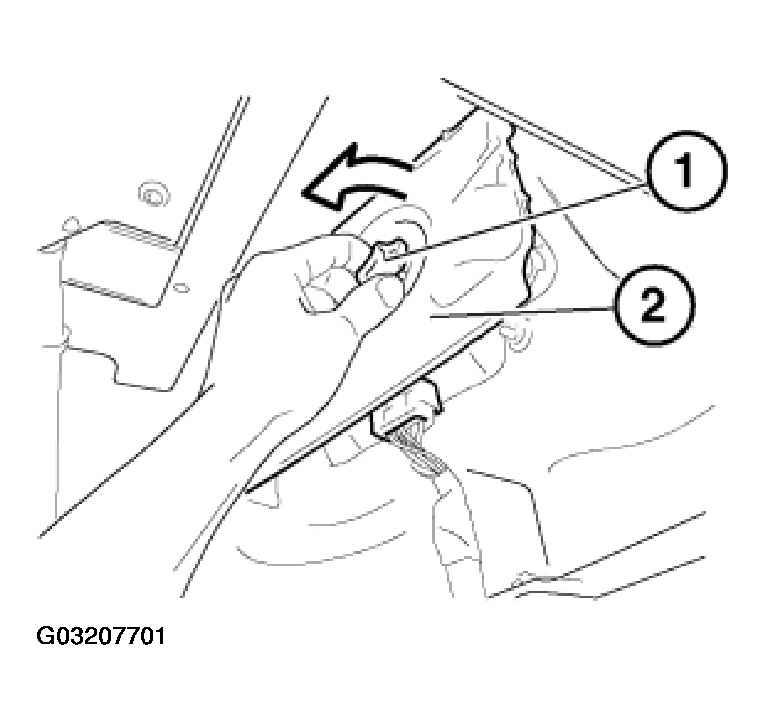

Turn handwheel (1) counterclockwise in direction of arrow and remove base (2).

Fig 2: Removing Base

Courtesy of BMW OF NORTH AMERICA, INC.

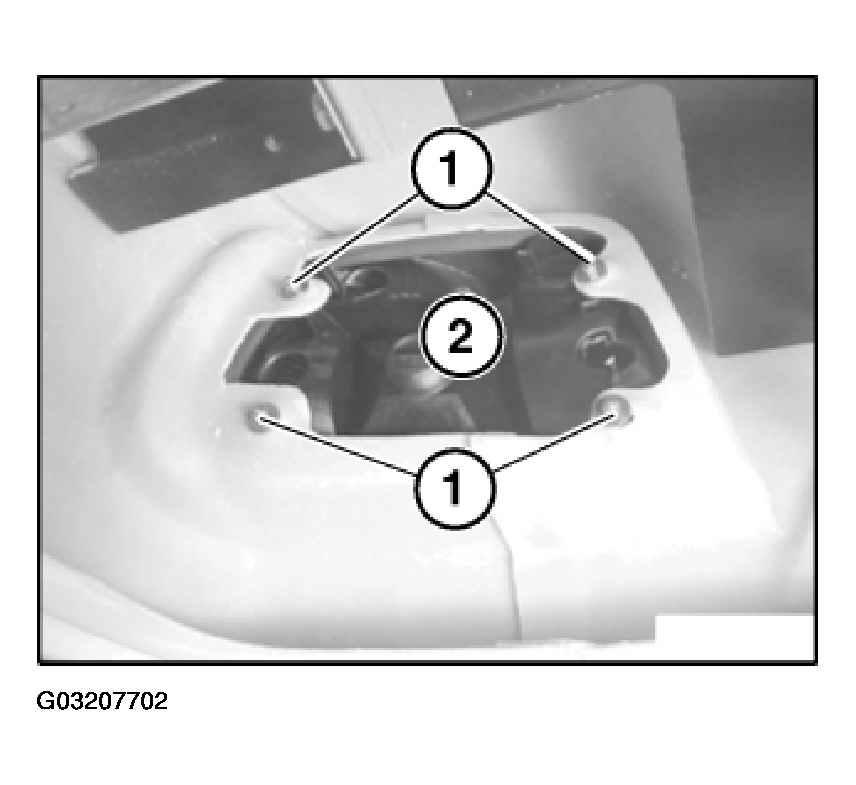

Release nuts (1) and press rear light (2) out towards front.

Fig 3: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Use new self-locking nuts.

Tightening Torque, 7 Nm.
