Servicing - A/T: Application

For transmission application, see AUTOMATIC TRANSMISSION APPLICATION table. For transmission application and oil recommendation, see Fig 1-Fig 8 . Also see LUBRICATION .

AUTOMATIC TRANSMISSION APPLICATION

Application		Transmission Model
Z3 (E36/7)
2001-02		A5S 360R/390R (GM5)
Z8 Alpina (E52)
2003		ZF 5HP24EH
7-Series (E38)
740i & 740iL (1/97 To 2001)		A5S 440Z (5HP24)
750iL (1/95 To 2001)		A5S 560Z (5HP30)

Fig 1: BMW Transmission Identification Code (1 Of 2)

G00214241

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: BMW Transmission Identification Code (2 Of 2)

G00214242

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: BMW Transmission Specification Plate

G00214249

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: BMW Automatic Transmission Application Chart

G00214247

Courtesy of BMW OF NORTH AMERICA, INC.

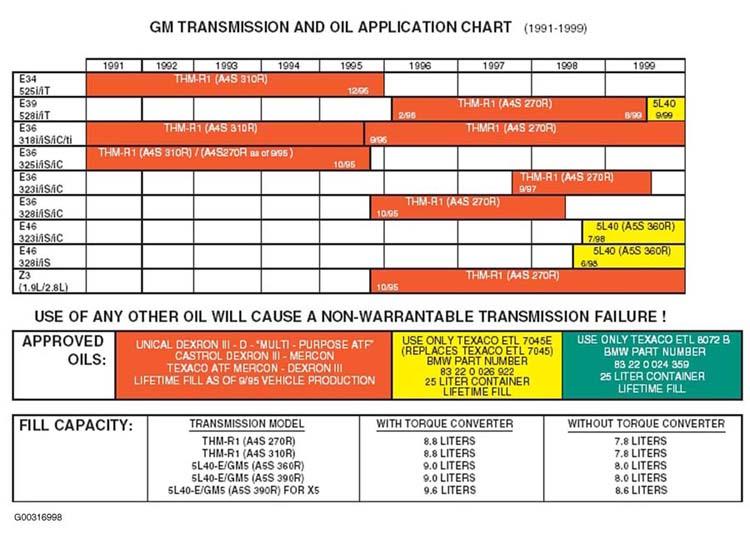

Fig 5: BMW GM Transmission & Oil Application Chart (1991-99)

G00316998

Courtesy of BMW OF NORTH AMERICA, INC.

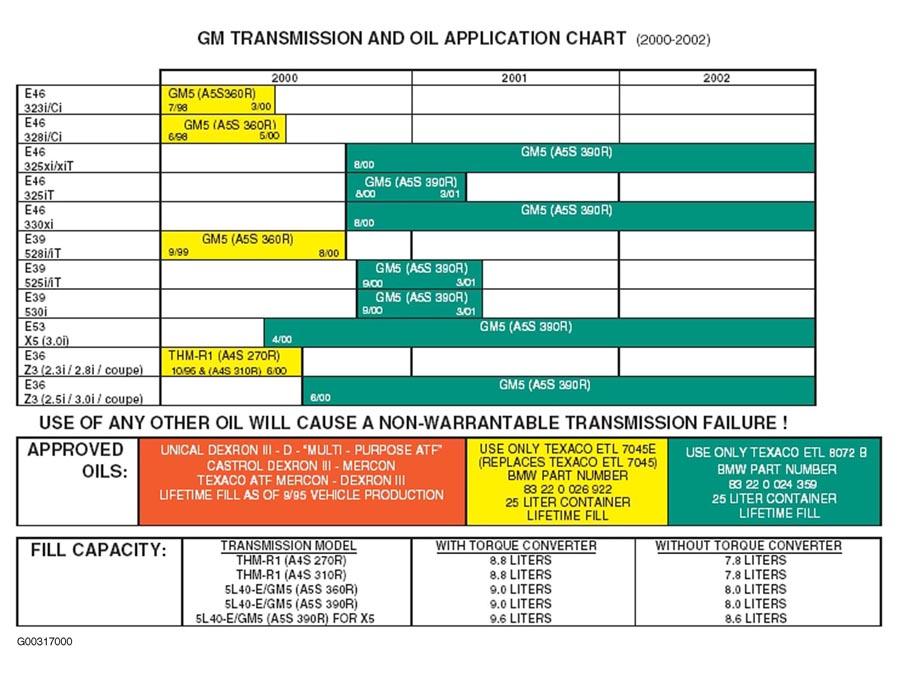

Fig 6: BMW GM Transmission & Oil Application Chart (2000-02)

G00317000

Courtesy of BMW OF NORTH AMERICA, INC.

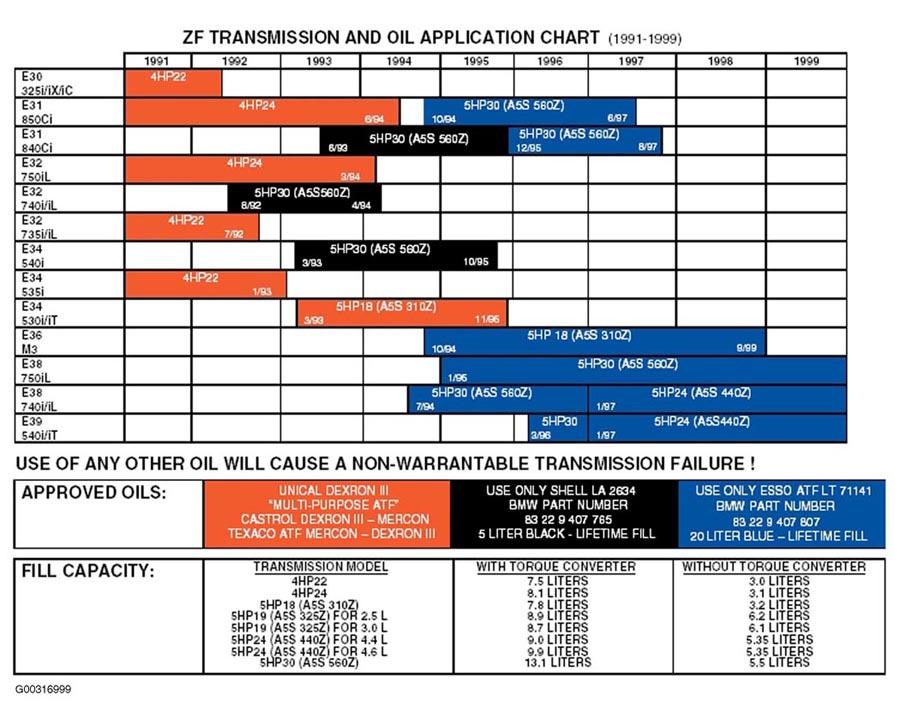

Fig 7: BMW ZF Transmission & Oil Application Chart (1991-99)

G00316999

Courtesy of BMW OF NORTH AMERICA, INC.

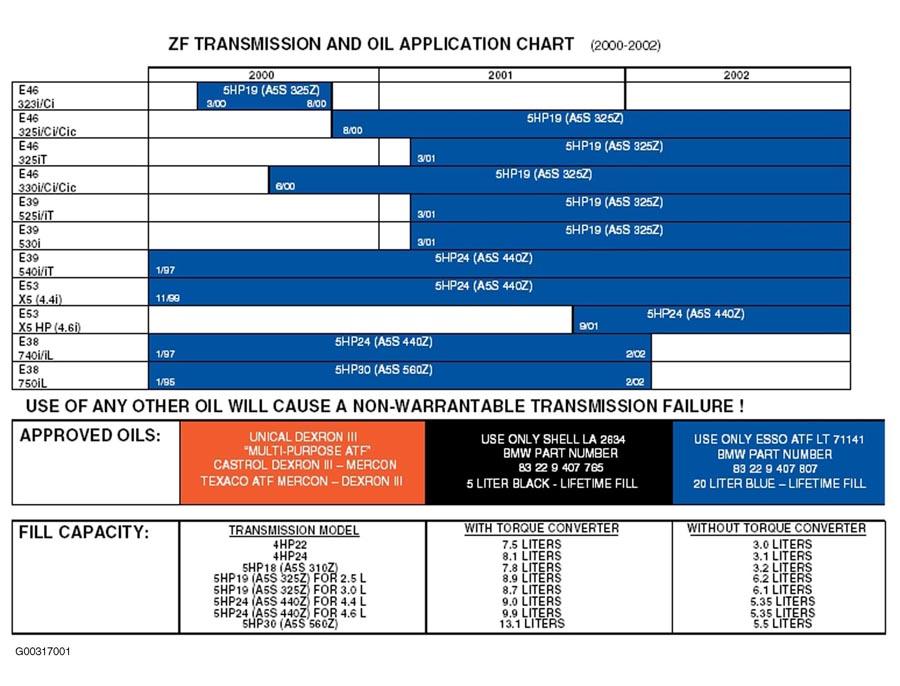

Fig 8: BMW ZF Transmission & Oil Application Chart (2000-02)

G00317001

Courtesy of BMW OF NORTH AMERICA, INC.
