3030 Tool

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0494187 313030 Tool Minimum set: Mechanical tools MW

NOTE: (press-in/press-out tool) For rubber mount on trailing arm [released]

Storage Location: B46

SI number: 01 14 01 (766)

Consisting of:

2 = 0494188 Bell housing
NOTE: Liquidation of existing inventory and after that available only as a complete tool set 31 3 030 = 83 30 0 494 187 - as of 09.12.2011 [not available separately]

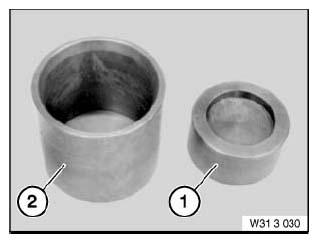

Fig 1: Identifying Tool (0494187)
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 0494189 Bush
NOTE: Liquidation of existing inventory and after that available only as a complete tool set 31 3 030 = 83 30 0 494 187 - as of 09.12.2011 [not available separately]
