E60, E61, E63, E64: System Overview For DSC 8 Dynamic Stability Control: Inputs/Outputs

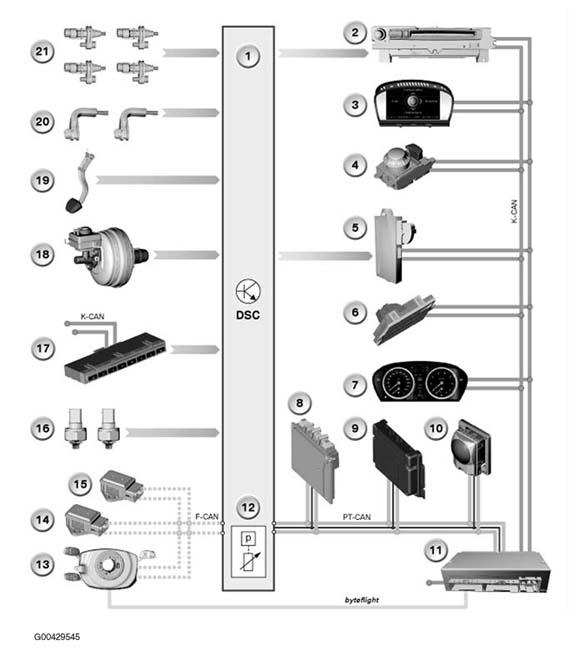

Fig 1: DSC Input/Output Flow Diagram
G00429545Courtesy of BMW OF NORTH AMERICA, INC.

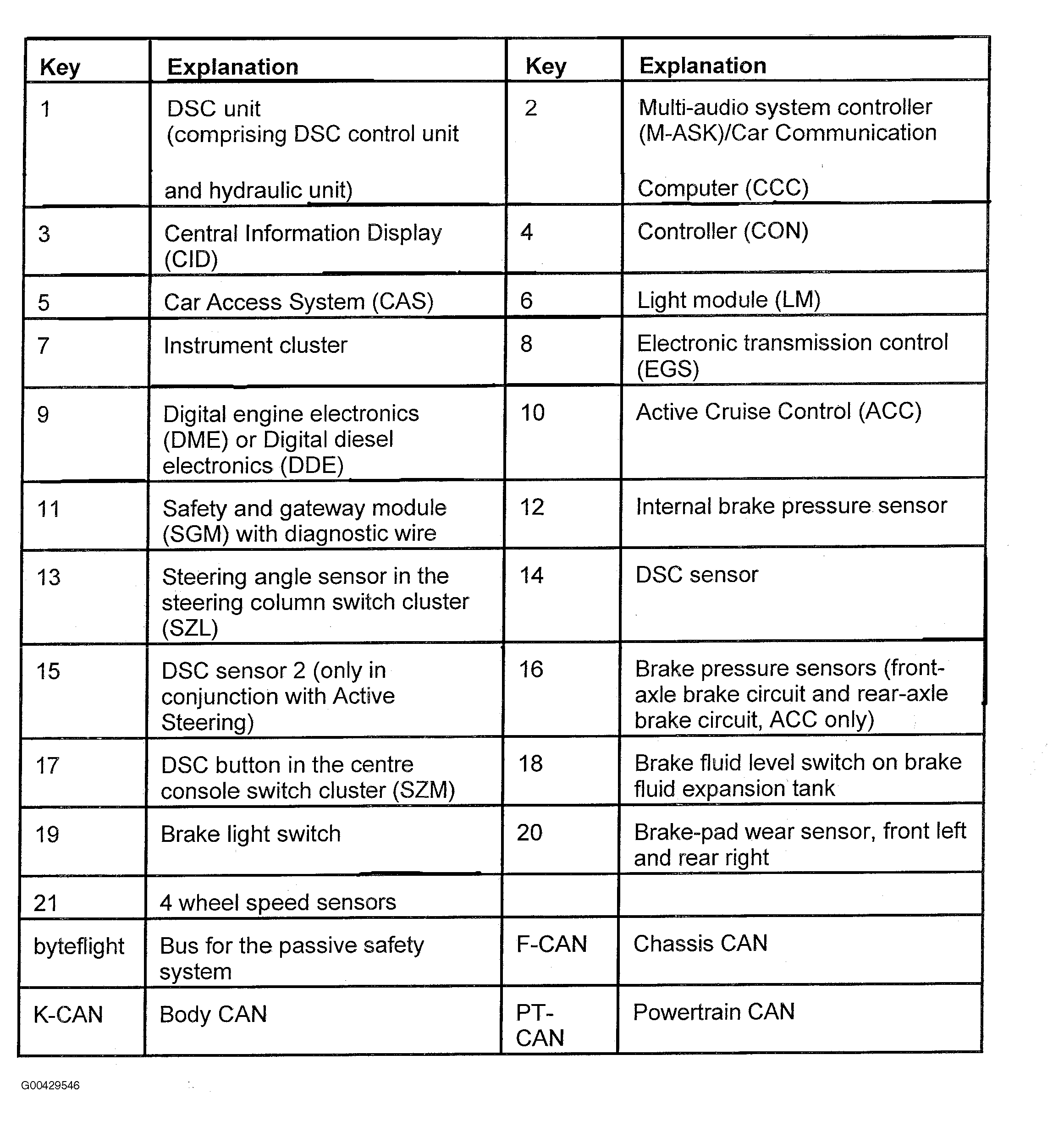

Fig 2: DSC Input/Output Flow Diagram Legend
G00429546Courtesy of BMW OF NORTH AMERICA, INC.
