Toe-In Adjustment

NOTE: The camber must be adjusted first. See CAMBER ADJUSTMENT .

If necessary, remove steering wheel cover. Slacken clamping nut (2), gripping tie rod end (1) in the process. Remove clamp (4). Turn tie rod (3) to adjust toe-in to specified value. See Fig 1 . See WHEEL ALIGNMENT SPECIFICATIONS . Install clamp (4).

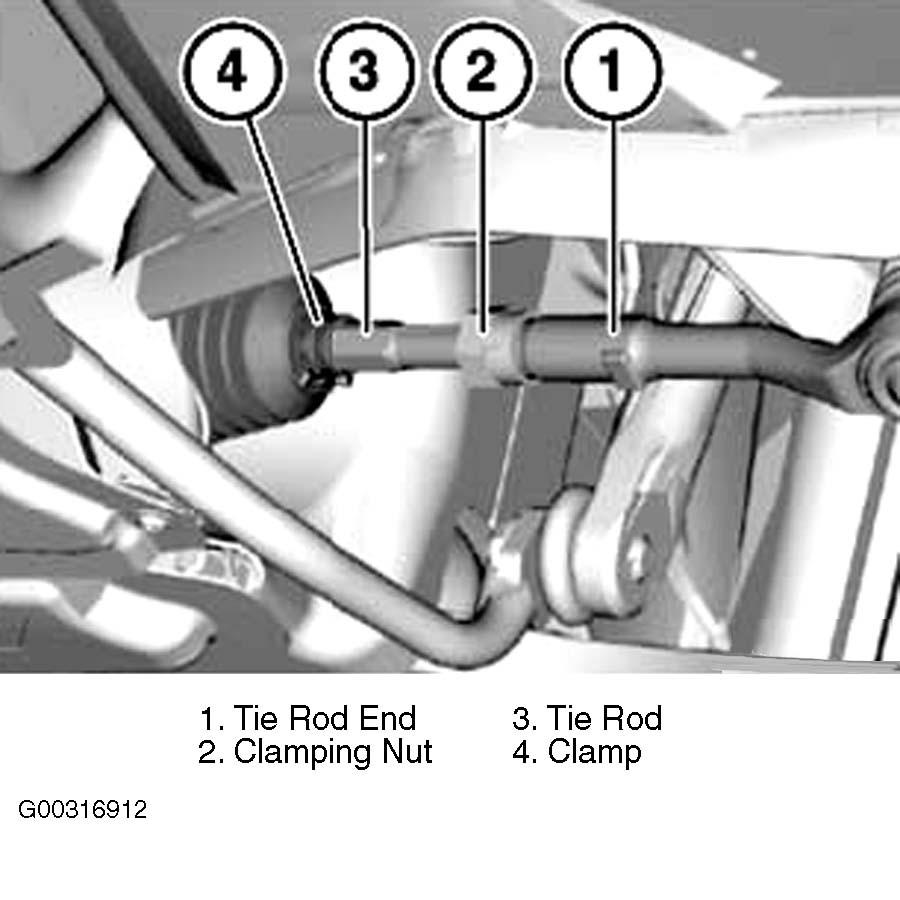

Fig 1: Adjusting Toe-In

Courtesy of BMW OF NORTH AMERICA, INC.
