Monitoring structure of Catalyst

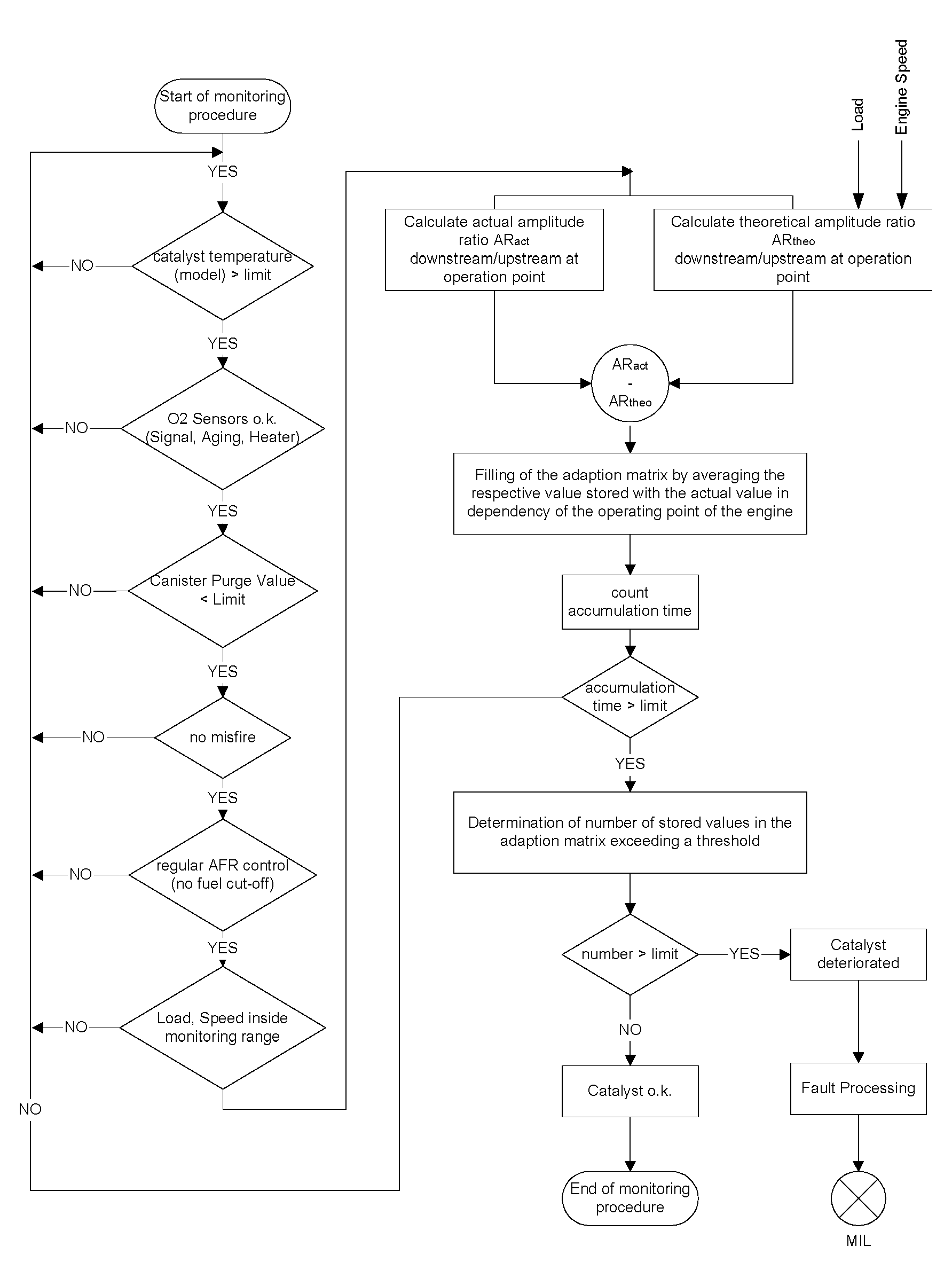

Fig 1: Catalyst Monitoring Flow Chart
Courtesy of BMW OF NORTH AMERICA, INC.
