Monitoring Structure of Secondary Air System Monitoring

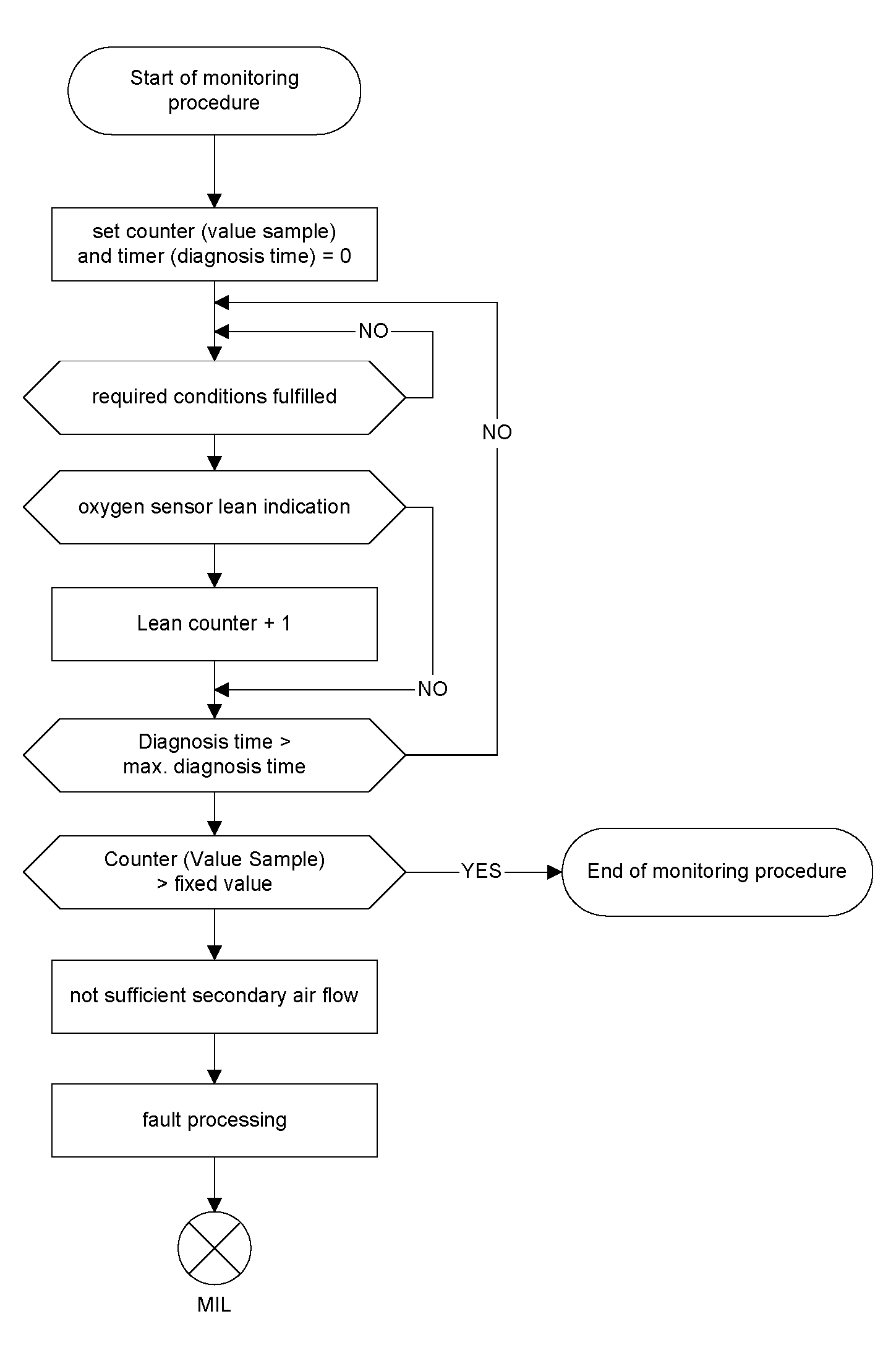

Fig 1: Secondary Air System Monitoring Flow Chart
G04178790Courtesy of BMW OF NORTH AMERICA, INC.
