61 31... Remount operating unit for additional seat function (clipped version)

Necessary preliminary tasks:

• Remove operating unit of additional seat function  . See 61 31 204 REPLACING OPERATING UNIT FOR SEAT ADJUSTMENT  or 61 31 203 REPLACING OPERATING UNIT FOR SEAT ADJUSTMENT

Removal:

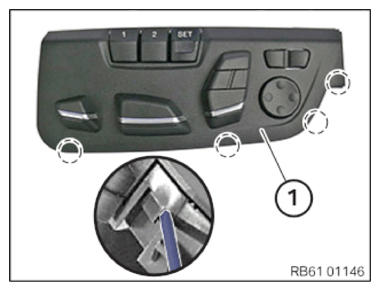

Release all latch mechanisms on the operating unit (1) using screwdriver (3-mm blade).

Fig 1: Releasing Latch Mechanisms On Operating Unit Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

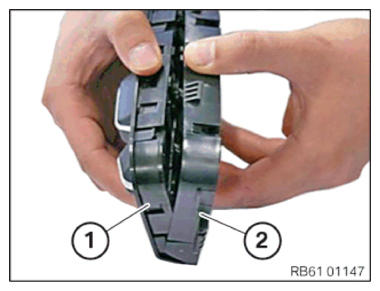

Feed out the operating unit (1) from the rear panel (2).

Fig 2: Feeding Out Operating Unit From Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

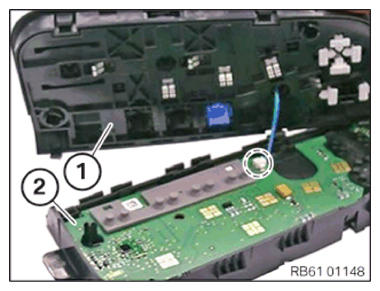

Disconnect the connector from the printed circuit board (2) and remove the operating unit (1).

Fig 3: Disconnecting Connector From Printed Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

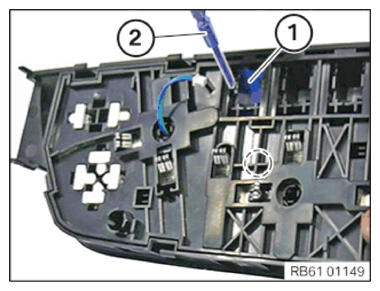

Unclip the button (1) using screwdriver (2) and pull out forwards.

Fig 4: Pulling Button Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

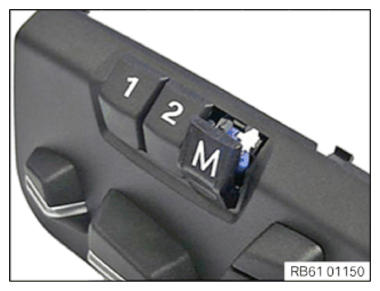

Fit the memory button to the operating unit and press to lock into place.

Fig 5: Identifying Memory Button To Operating Unit And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

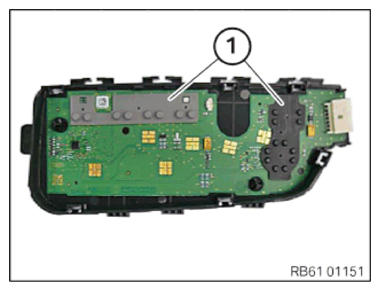

Ensure keypads (1) are seated correctly.

Fig 6: Identifying Keypads

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect the connector from the printed circuit board (2) and remove the operating unit (1).

Fig 7: Disconnecting Connector From Printed Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

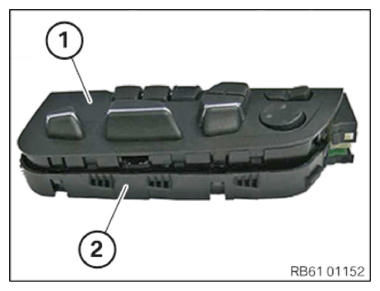

Fit the operating unit (1) to the rear panel (2) and press to lock into place.

Fig 8: Identifying Operating Unit To Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Remove operating unit of additional seat function  . See 61 31 204 REPLACING OPERATING UNIT FOR SEAT ADJUSTMENT  or 61 31 203 REPLACING OPERATING UNIT FOR SEAT ADJUSTMENT
