Closed-Circuit Current Monitoring and Vehicle Sleep Mode: Notes

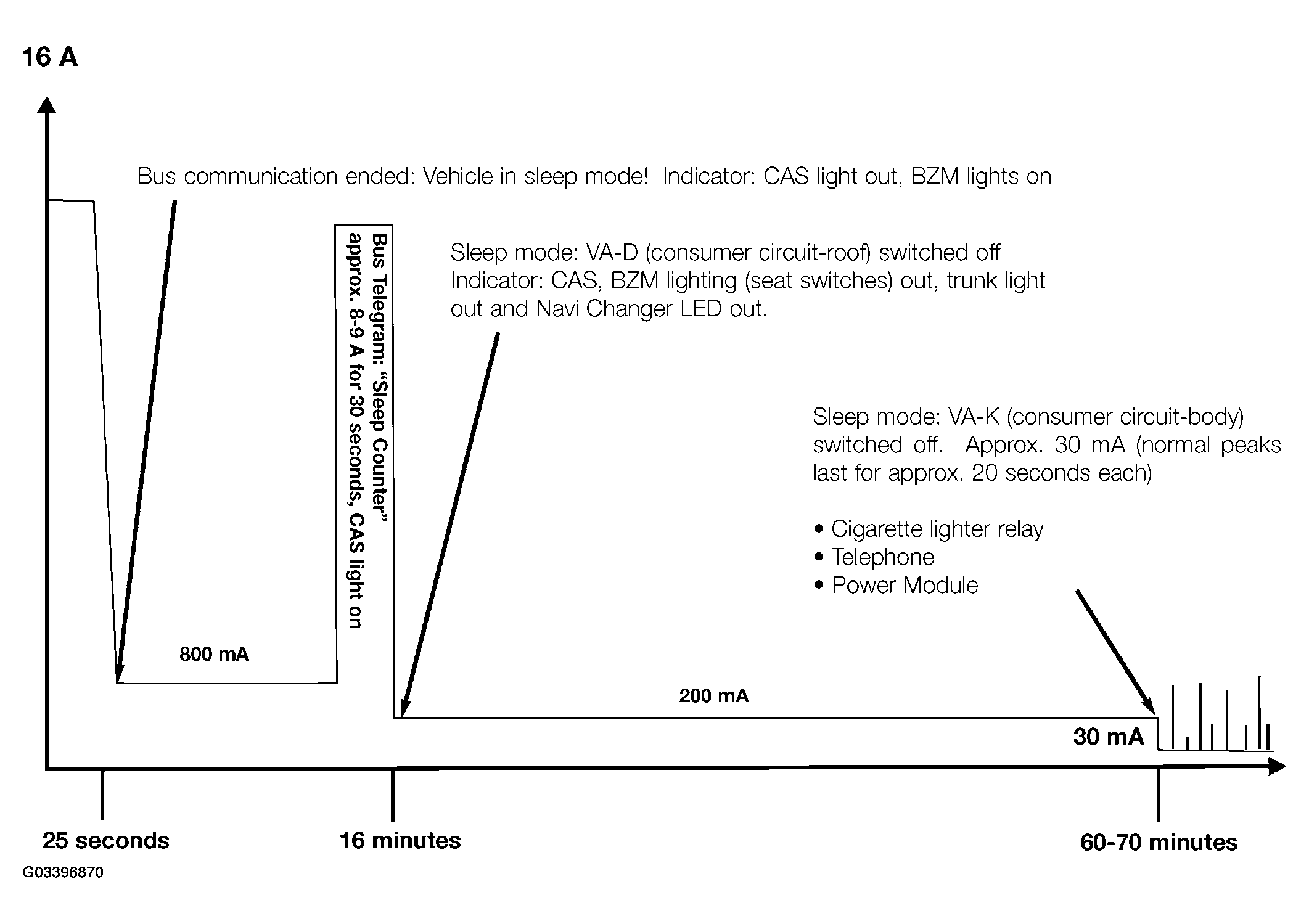

Fig 1: View Of Closed-Circuit Current Monitoring And Vehicle Sleep Mode
G03396870Courtesy of BMW OF NORTH AMERICA, INC.
