31 50... Check/change front axle differential oil

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 080

IMPORTANT: If oil is filled up to the lower edge of the oil filler opening, the front axle differential would be overfilled and in rare individual cases oil could emerge from the ventilation opening on the front axle differential.
After draining front axle differential oil or when carrying out the initial filling of a new replacement front axle differential, the transmission must be filled with 600 ml oil.
Use only the APPROVED FRONT AXLE OIL in the front axle differential.
Failure to comply with this requirement will result in serious damage to the front axle differential!

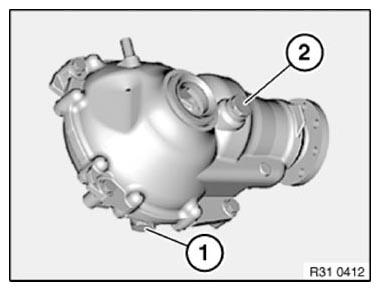

Fig 1: Identifying Oil Drain Plug And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only change oil when front axle differential is at normal operating temperature.

Checking, correcting front axle differential oil level:

The front axle differential is subject to oil filling over its lifetime. An oil-level adjustment is not needed during the service. If there is a visible release of oil or after a repair to the front axle differential, follow the instructions in "Front axle differential oil replacement" .

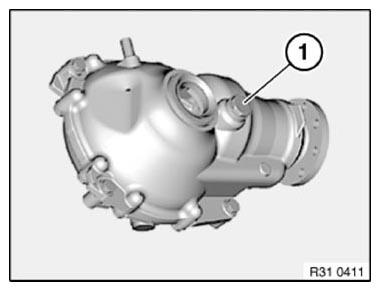

Fig 2: Identifying Front Axle Differential Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Changing front axle differential oil:

Necessary preliminary tasks:

Remove FRONT WHEEL .
Remove steering box COVER on left.
Remove STIFFENING PLATE

Place oil collecting apparatus underneath.

Remove oil drain plug (1).

Tightening torque 31 50 2AZ .

Drain front axle differential oil.

Screw in oil drain plug (1) and tighten.

Undo oil filler plug (2).

Tightening torque 31 50 2AZ .

Fill 600 ml of transmission oil. (if necessary, use measuring cup and special tool 00 2 080 )

Fig 3: Identifying Oil Drain Plug And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace the oil drain plug and oil filler plug.
