31 00... Notes on repairing threads version 2

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads on the engine support may be repaired with Helicoil thread inserts. Follow the procedure described in the example.

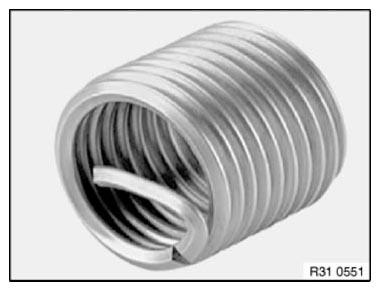

Fig 1: Identifying Helicoil Thread Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure:

Create a clean core hole; if necessary, drill out screw remnants

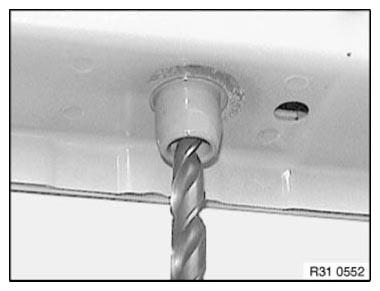

Fig 2: Drilling Core Hole
Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert

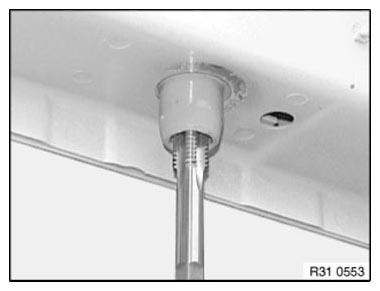

Fig 3: Creating Thread For Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

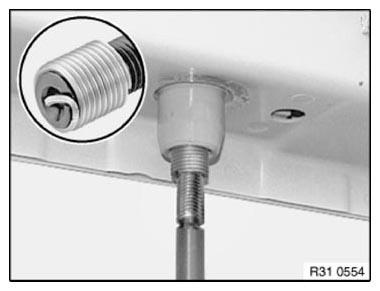

Fig 4: Picking Out Helicoil Thread Insert
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

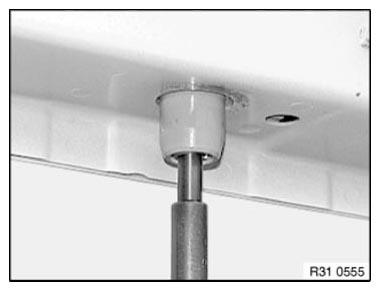

Fig 5: Removing Break Drive Pin
Courtesy of BMW OF NORTH AMERICA, INC.
