31 00 Mobile table lift

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Before beginning work, position table lift with the lower frame securely on the floor.
Danger area around mechanism below platform.

Do not reach into or step into the danger area.
Note permissible bearing capacity of table lift.
Mount load centrally (danger of tipping) and secure against shifting.

Follow the operating instructions from the equipment manufacturer.

The mobile table lift is used for collision repairs and when removing large engines.

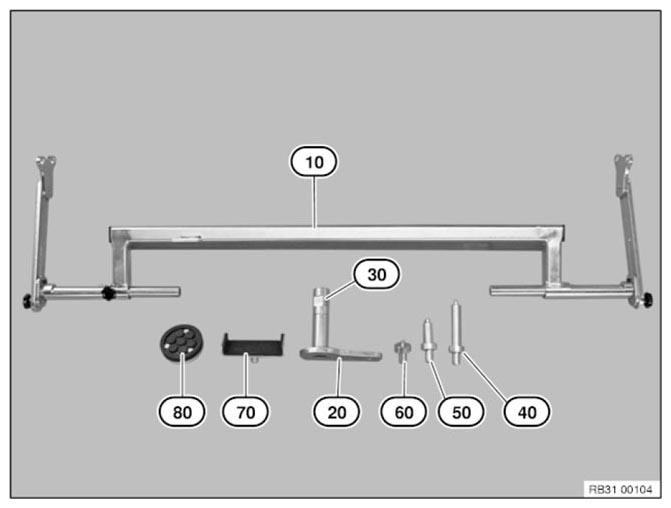

Adaptations for mounting front axle with engine and transmission.

No. 10	For mounting swivel bearing with brake disc
No. 20	Retaining element for adjustable fixture
No. 30	Adjustable fixture
No. 40	Distance pin 40 x 160 mm
No. 50	Distance pin 40 x 110 mm
No. 60	Distance pin 40 x 60 mm
No. 70	Fixture with U-profile
No. 80	Plate fixture Ø=100 mm

Fig 1: Identifying Mobile Table Lift Components

Courtesy of BMW OF NORTH AMERICA, INC.

Release star knob screw on working plate (B) of table lift; the working surface (B) can be extended by approx. 310 mm.

Release all push-pull clamps and the working plates can be shifted by approx. 20 mm.

Working plate (A and B) can be raised and lowered by 3° on the long side and by 5° on the transverse side.

Working plate (A and B) is subdivided by a coordinate system and a possible installation position is recommended in the respective repair manual.

Fig 2: Identifying Working Plates

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow the operating instructions from the equipment manufacturer.
