41 00... Removing and installing rivet heads

IMPORTANT:

Lay out protective mats to protect the interior against debris from the drilled-out rivets and damage.

Lay out protective mats in the relevant working area:

Dashboard
Entrance area
Passenger compartment

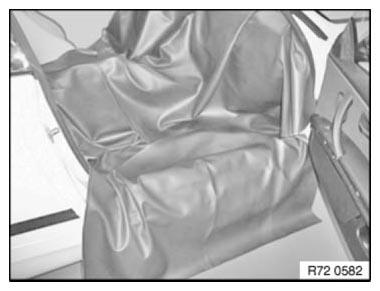

Fig 1: Identifying Protective Mats

Courtesy of BMW OF NORTH AMERICA, INC.

Described for folding pack holder for head airbag:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

Fig 2: Drilling Rivet Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Described for grab handle holder:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

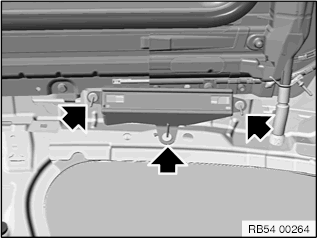

Fig 3: Identifying Grab Handle Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Cut off blind rivet shanks down to sheet metal as level as possible.

Fig 4: Cutting Blind Rivet To Sheet Metal

Courtesy of BMW OF NORTH AMERICA, INC.

Deburr remaining rivets with nipper pliers.

Installation note:

Apply primer to paintwork damages on side frame.

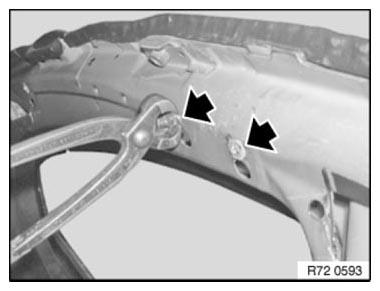

Fig 5: Removing Rivets With Nipper Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Depending on accessibility, the rivet heads will have to be removed using special tool 2 348 128 or 72 1 210.

Press off rivet heads (1) using special tool 2 348 128 and remove.

Fig 6: Pressing Rivet Heads Using Special Tool (2 348 128)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 72 1 210 for collecting rivet remnants.

Shank (1) of special tool is flexible and can be adapted to the relevant body contours.

NOTE: Insert butyl in collecting tray (2) to secure rivet remnants against falling out.

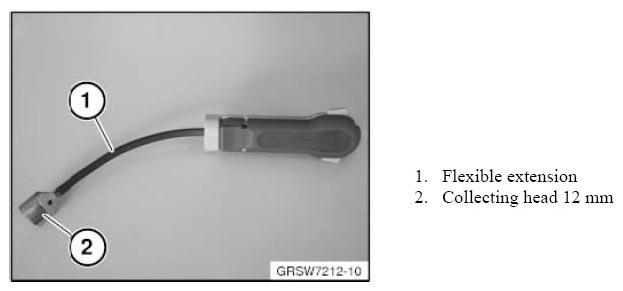

Fig 7: Identifying Special Tool 72 1 210 For Collecting Rivet Remnants

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 72 1 210 through bore hole in body next to attachment points.

Position special tool from rear on rivet head in cavity.

NOTE: A second person will be needed to help hold the special tool on the rivet head during the driving-out operation.

Make sure collecting tray is correctly fitted on rivet head.

Drive out stem with hammer and 6 mm punch.

Carefully feed special tool out of body so that rivet head does not fall out of collecting tray.

NOTE:

If the rivet falls out of the collecting tray into the side frame when the special tool is fed out, this area must be generously filled with foam.

For details of procedure for filling cavities with foam, see further operations.

Use cavity preservation (refer to BMW Parts Department) for foam filling.

Cavity foam (refer to BMW Parts Department) can also be used if necessary.

Fig 8: Identifying Special Tool On Rivet Head

Courtesy of BMW OF NORTH AMERICA, INC.

Fit tube to foam can.

Push the hose in through the pillar holes.

Fill cavity with a filling material.

WARNING:

Empty foam can completely onto cardboard and after hardening dispose of foam and can in residual waste.

Can may burst if not completely emptied.

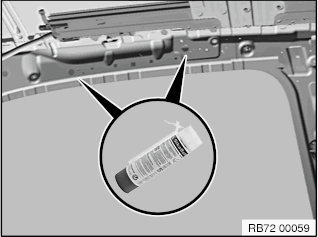

Fig 9: Identifying Foam Can

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of rivet gun:

Riveting of gas generator housing and holders for folding pack with rivet gun (refer to BMW Workshop Catalogue).

The interchangeable head is changed for the different work operations.

Riveting of gas generator housing with:

17/36 nosepiece and short shank

Riveting of holders for folding pack:

17/40 nosepiece and long shank

Fig 10: Identifying 17/36 Nosepiece And Short Shank - 17/40 Nosepiece And Long Shank

Courtesy of BMW OF NORTH AMERICA, INC.
