Rollover Protection System

The rollover protection system consists of two extendable rollover bars which are housed in a carrier structure behind the two rear seats. The carrier structure is bolted to the rear seat panel.

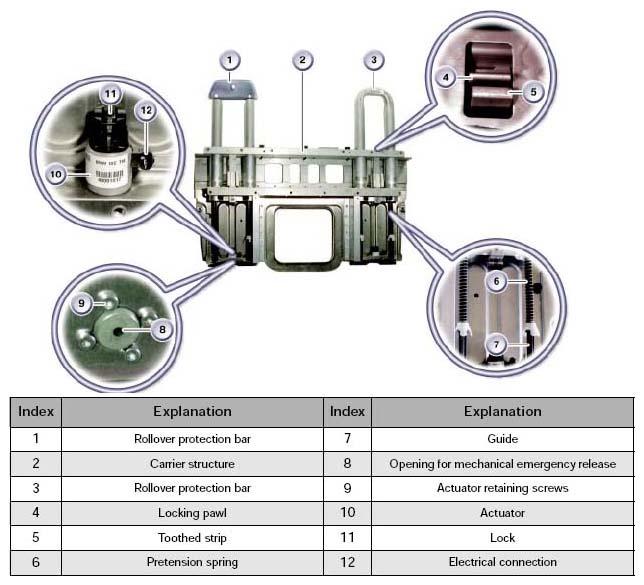

Fig 1: Identifying Rollover Protection System Components
G04750679Courtesy of BMW OF NORTH AMERICA, INC.
