61 13 ... Repairing ribbon cables

Special tools required:

NOTE: For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63) .

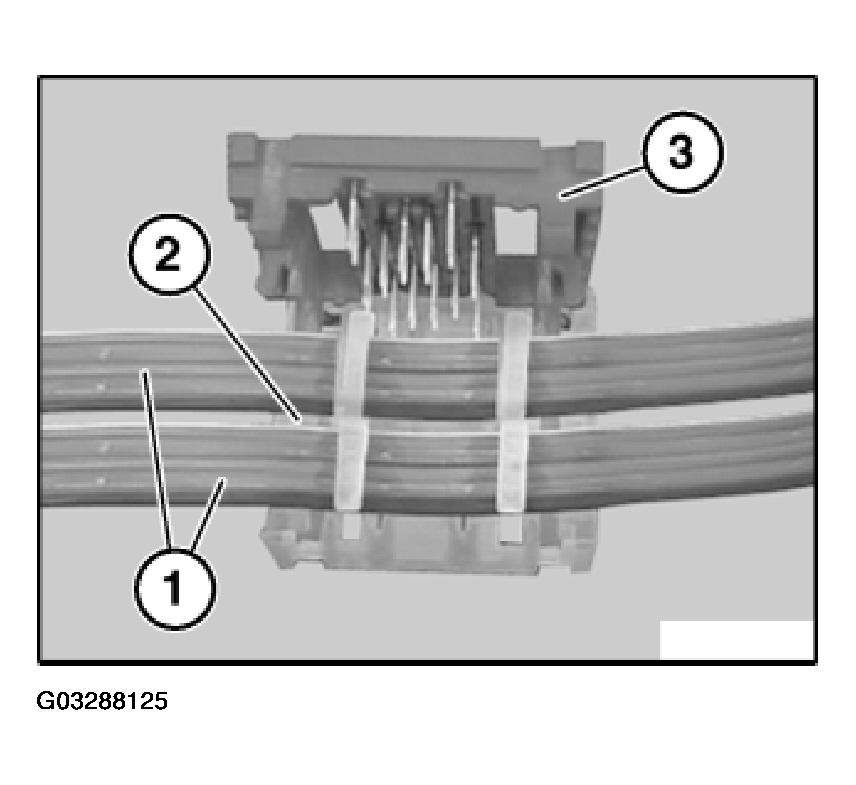

Place ribbon cables (1) in connector housing (2) and close cover (3).

Fig 1: Placing Ribbon Cables In Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

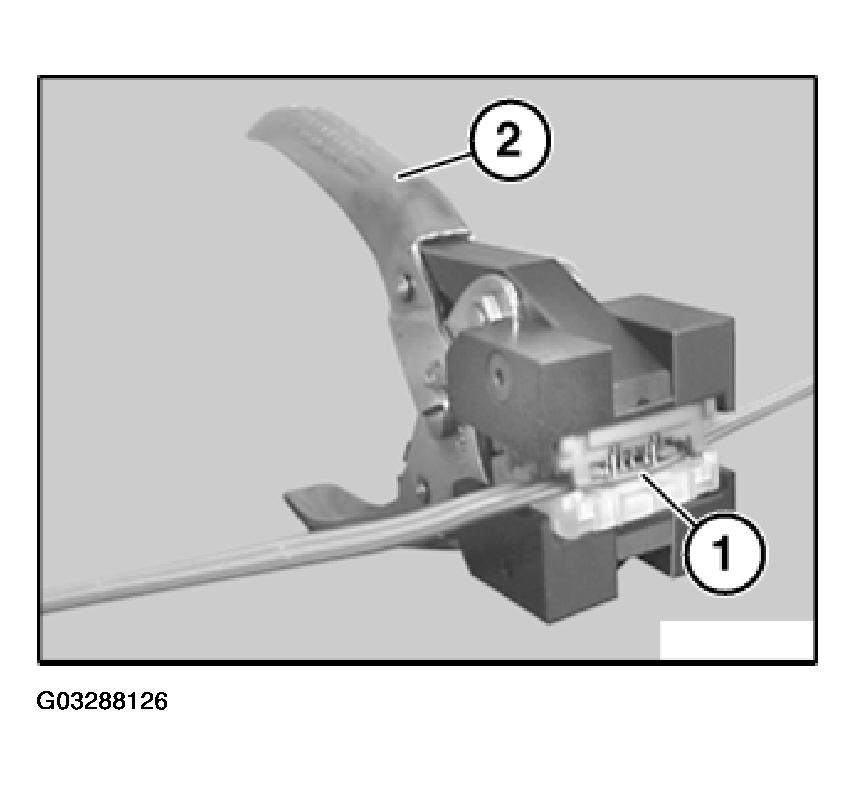

Place connector housing (1) in pliers (2) 61 1 190.

Close pliers (2).

Fig 2: Placing Connector Housing In Pliers

Courtesy of BMW OF NORTH AMERICA, INC.
