Display Areas

The instrument cluster is divided into the following display areas:

• Instrument dials (Analog Instruments)
• Indicator and warning lamps
• LC display
• Program and gear displays for automatic gearbox and SMG Sequential Manual Gearbox

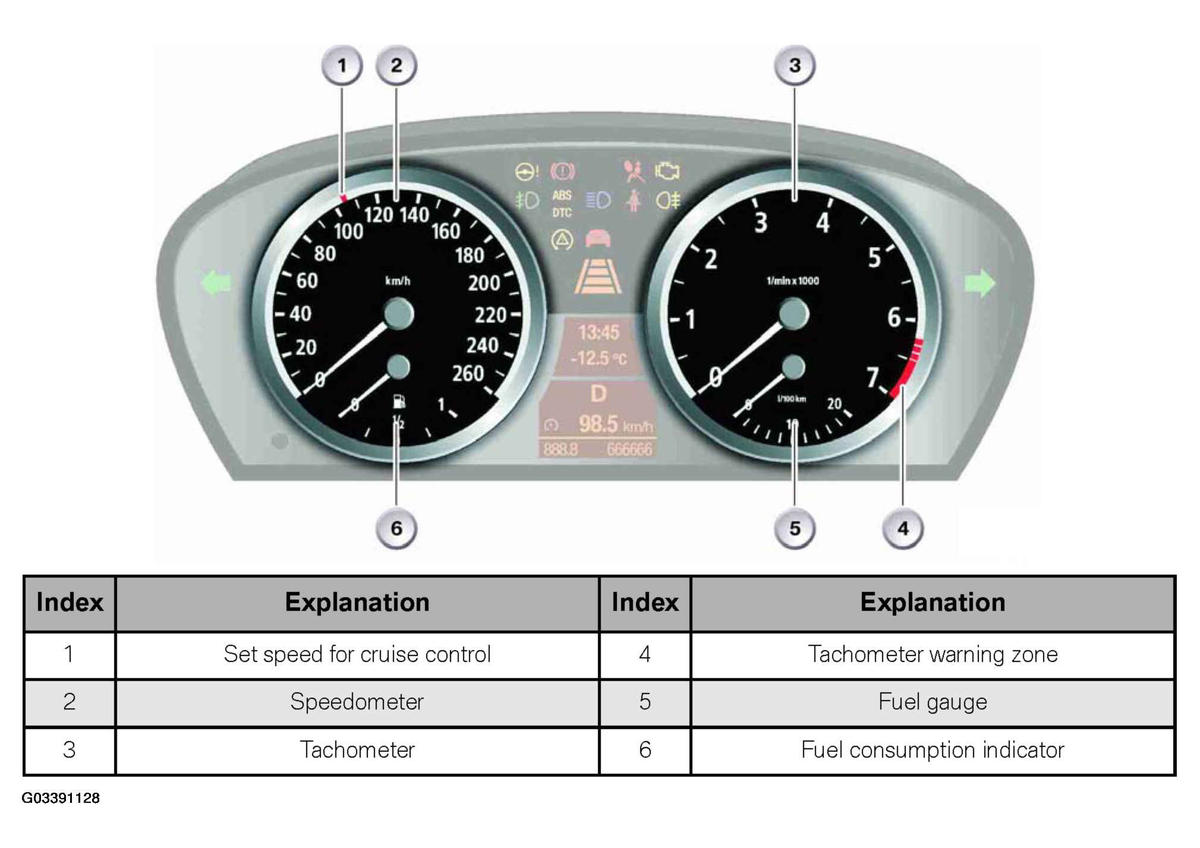

  Fig 1: Identifying Display Areas

  Courtesy of BMW OF NORTH AMERICA, INC.
