General Vehicle Electrical: Wipers: Notes

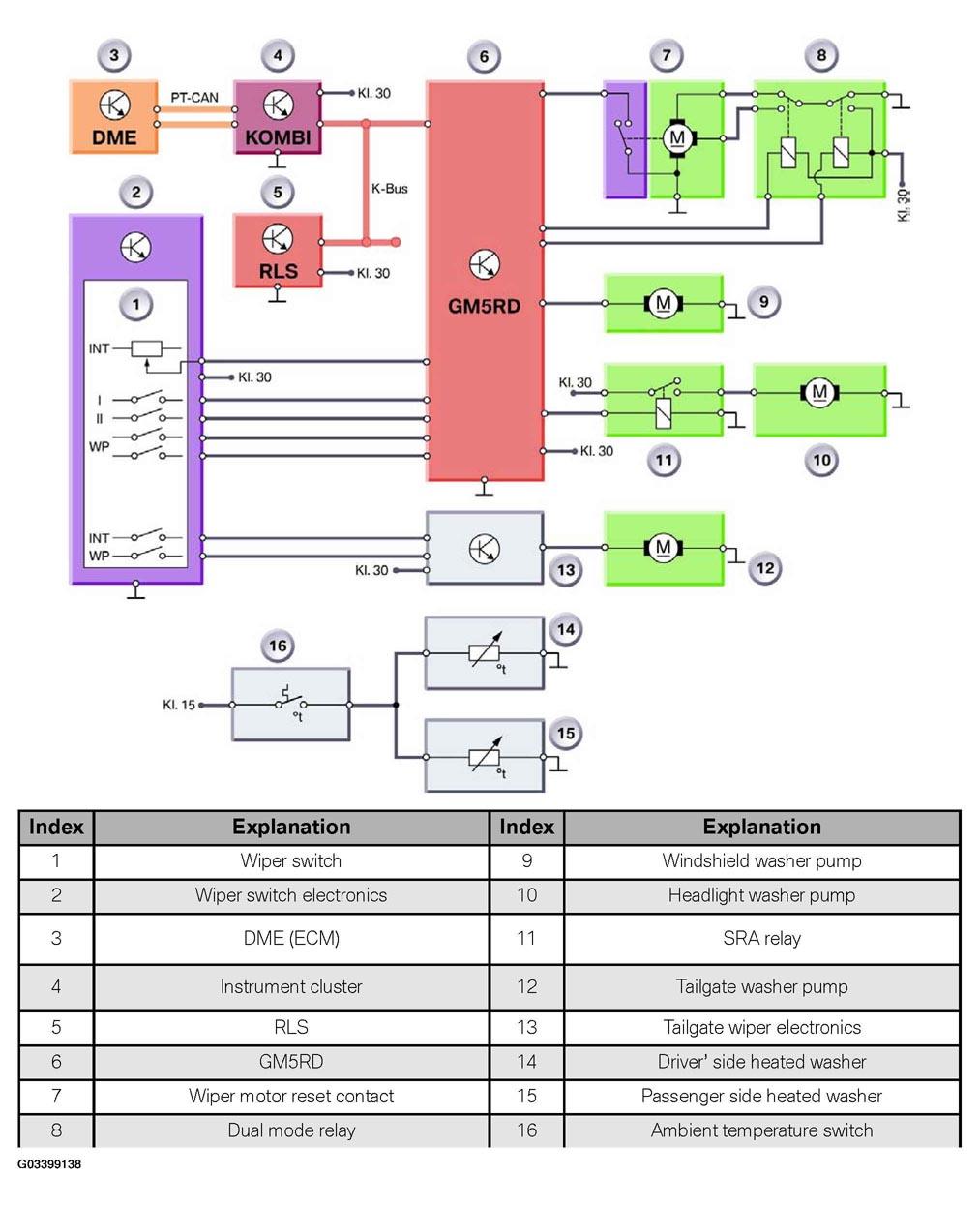

The wiper system has been modified for use in the E83. The GM5RD controls front wiper and washer operation as well as headlight washer operation. The rear wiper and rear washer are controlled by a wiper module with operation requested directly by the wiper switch.
