Wheel Alignment Specifications

For wheel alignment specifications, see Fig 1.

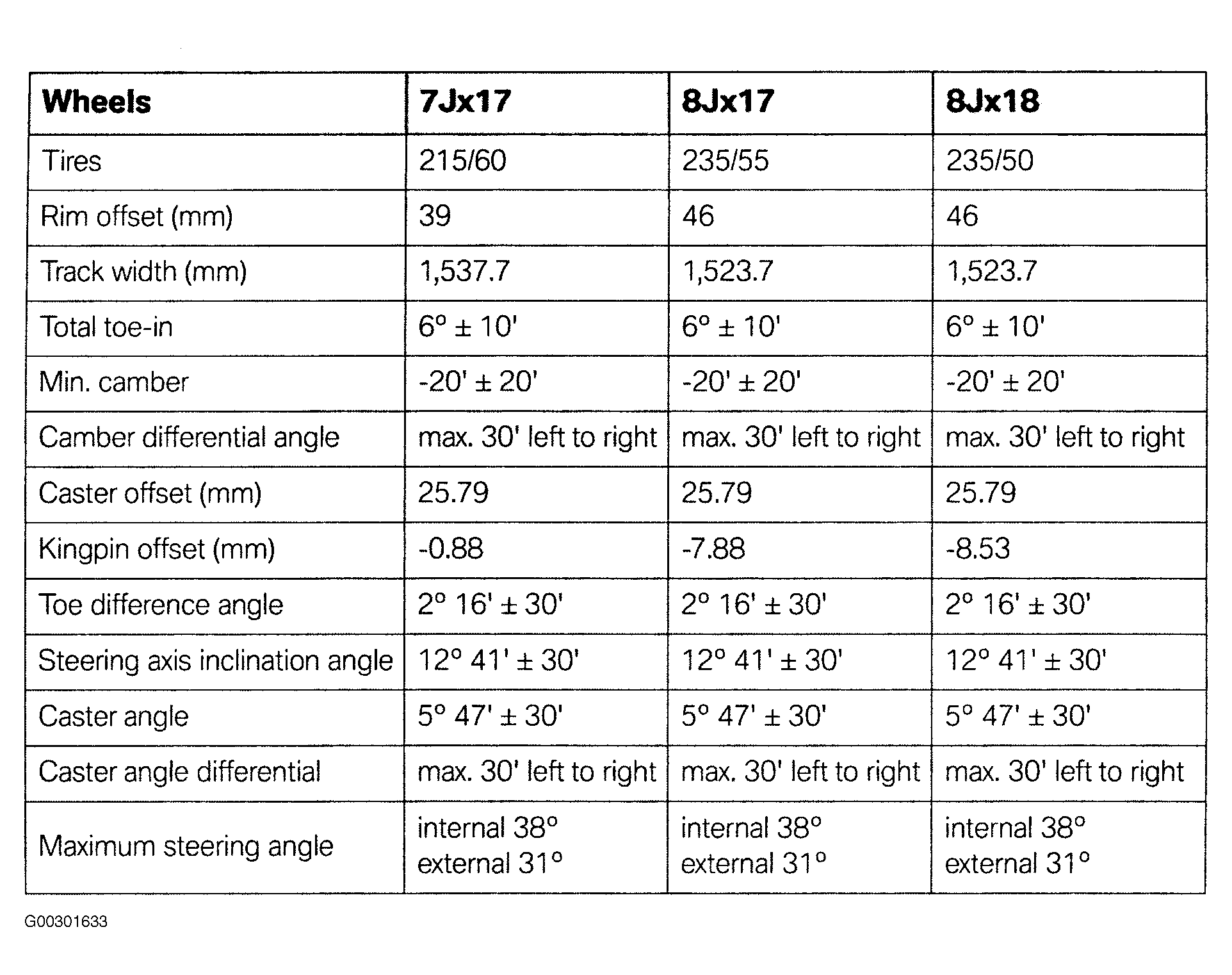

Fig 1: X3 Alignment Specifications
G00301633Courtesy of BMW OF NORTH AMERICA, INC.
