HiFi System Schematic

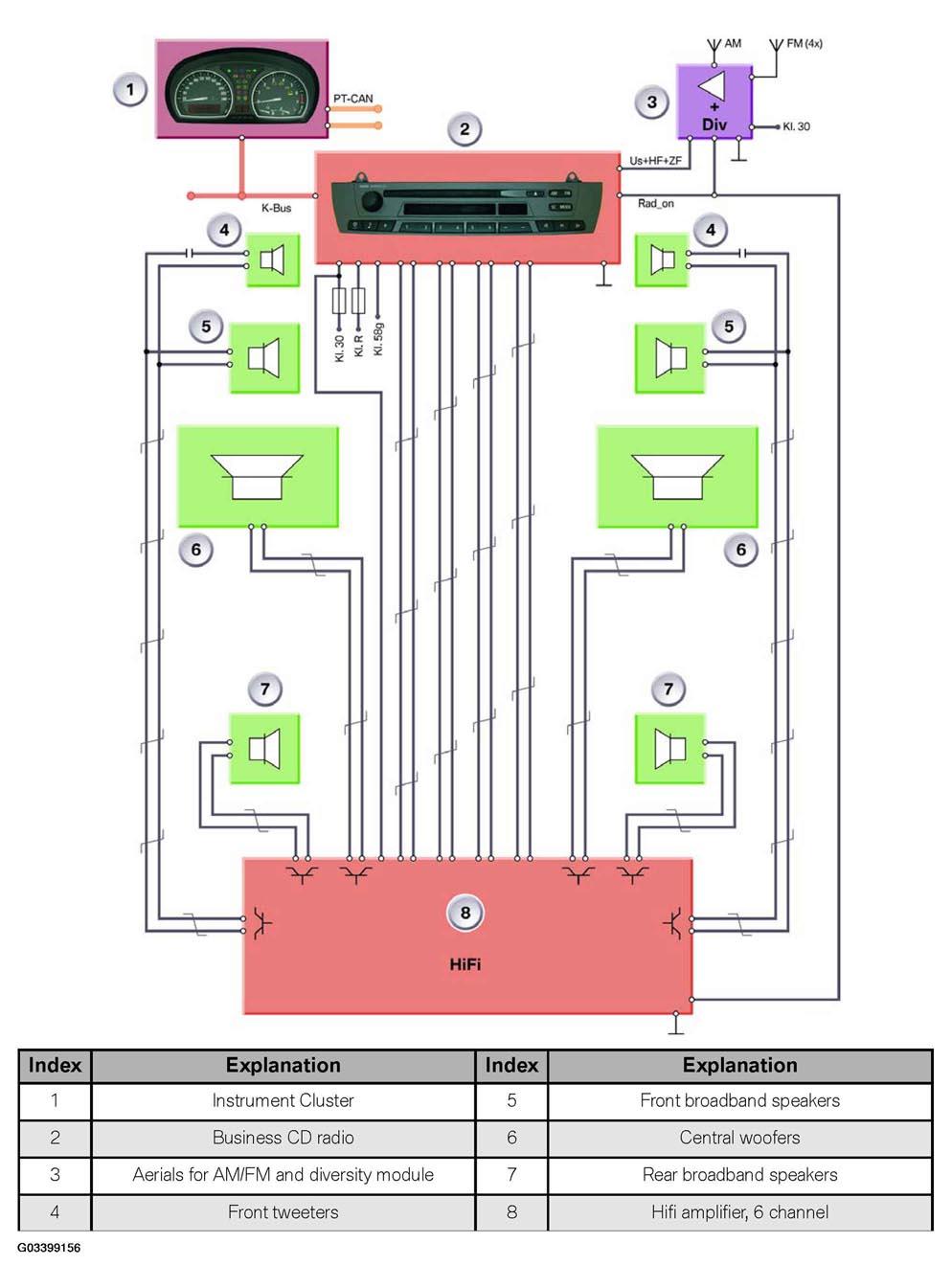

Fig 1: Identifying HiFi System Schematic
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
