12 90... Removing and installing/replacing electronics box

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Follow instructions for REMOVING AND INSTALLING ELECTRONIC CONTROL UNITS

Necessary preliminary tasks:

Unlock DME control unit and remove.

Slacken If fitted, disconnect plug-in contact for electronics box fan.

Unlock equipment carrier at holder and remove.

Fig 1: Identifying DME Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

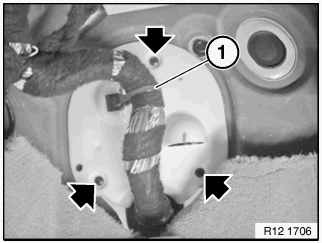

Cut open cable tie (1). Release screws.

Remove rear plate.

Fig 2: Identifying Cable Tie And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with electronics box fan.

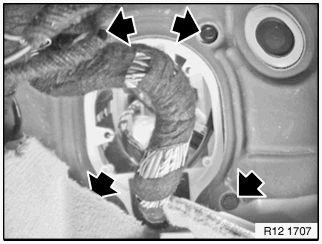

Detach cable tie. Release screws.

Remove rear plate with fan.

Fig 3: Locating Engine Control Unit Fan, Cable Tie, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws for electronics box.

Fourth screw is hidden by carpet.

Add final details to vehicle.

Read fault memory.

Fig 4: Locating Screws For Engine Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
