Interlock Cable

Move selector lever (1) to "P" position (front stop of shifting gate.) See Fig 1 .

Loosen screw (4). It must be possible to move cable (2) slightly in holder (3).

Move ignition key to "zero" position and remove.

Press interlock locking pawl (5) downward as far as it will go. Tighten screw (4).

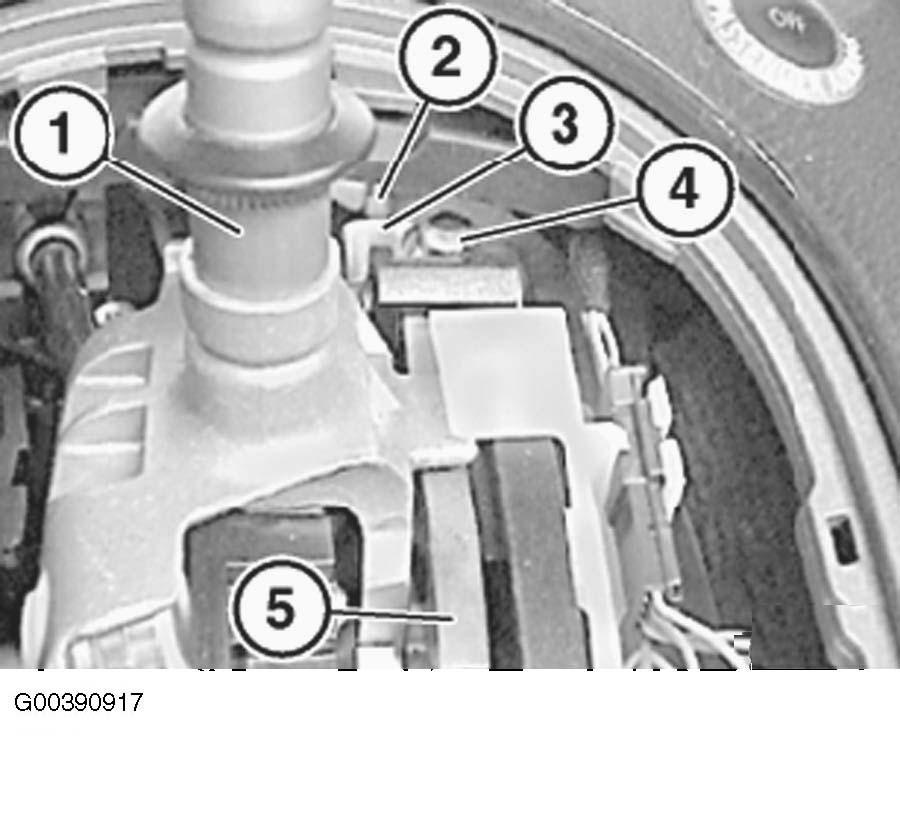

Fig 1: Adjusting Interlock Cable

Courtesy of BMW OF NORTH AMERICA, INC.

To check interlock adjustment:

• Turn ignition key to "ignition" position and then "0" position.
• Interlock locking pawl (1) must rest (3) on shift tower (2). See Fig 2 .
• If necessary, adjust interlock cable again.

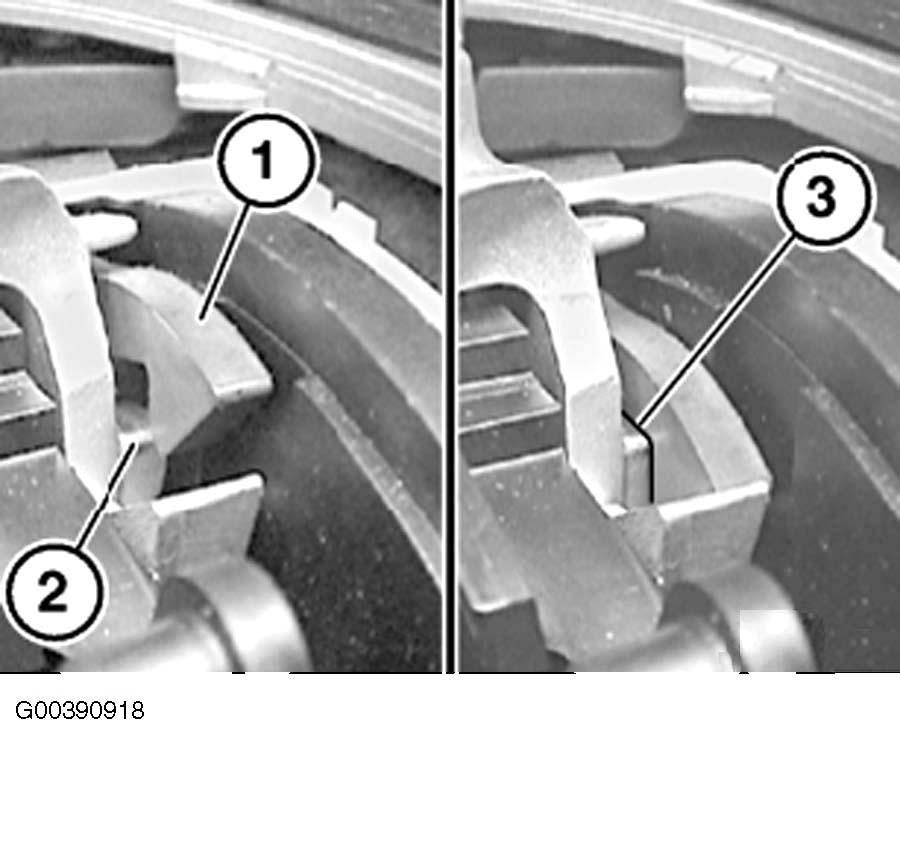

Fig 2: Checking Interlock Cable Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.
