Mode 06

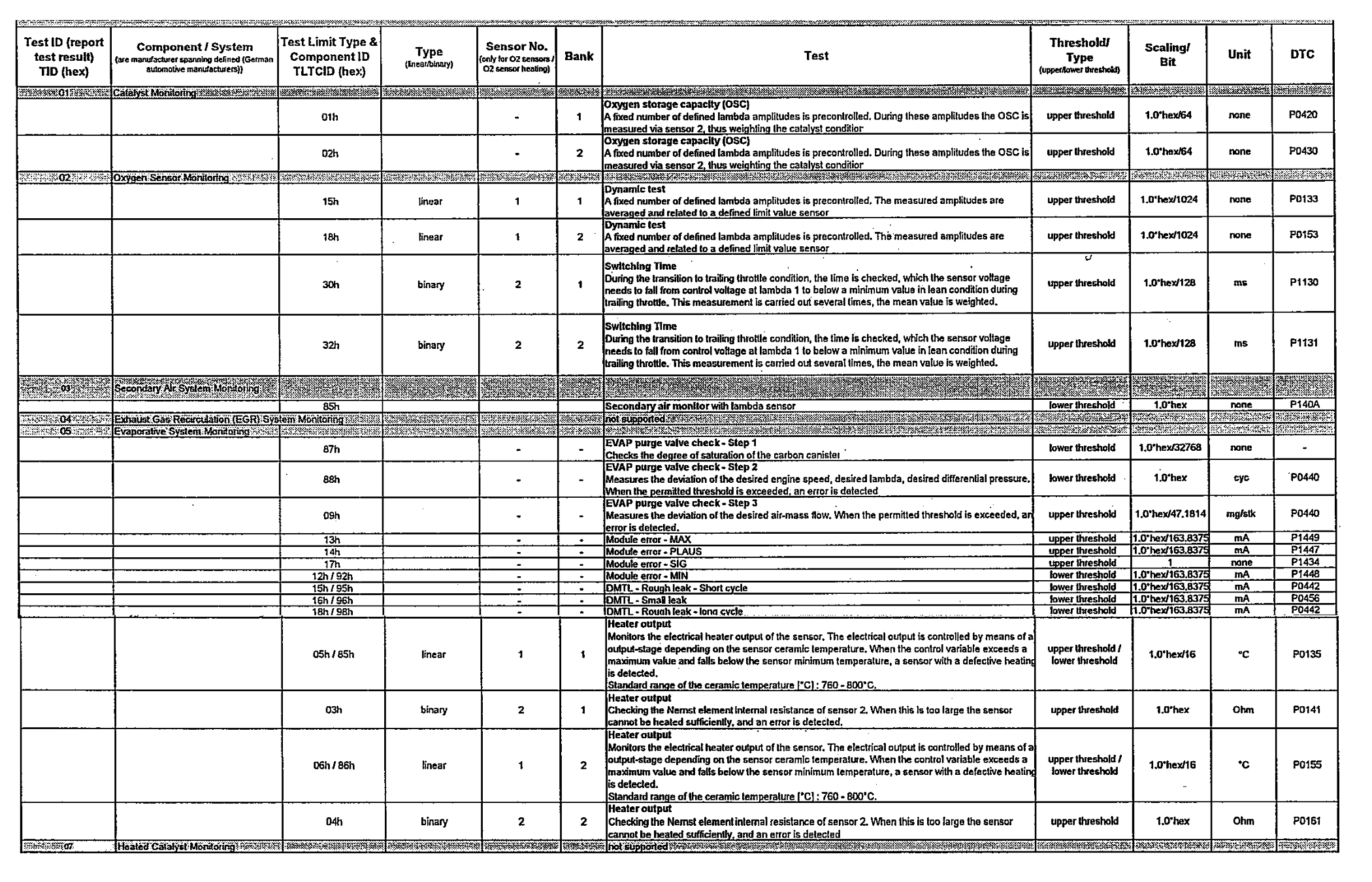

Fig 1: 2007 Mode 06 - N51 Engine SULEV
G00480719Courtesy of BMW OF NORTH AMERICA, INC.

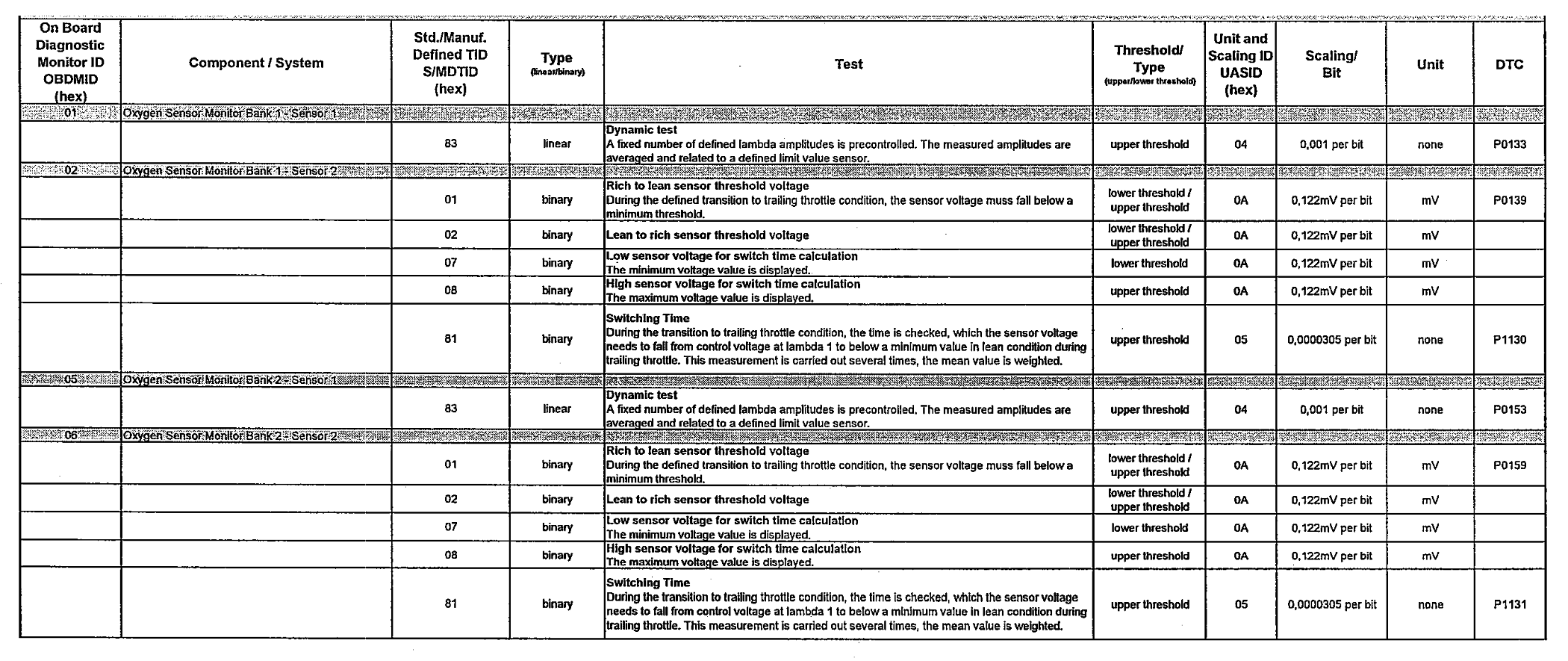

Fig 2: 2008 Mode 06 - N51 Engine SULEV - (1 Of 2)
G00480720Courtesy of BMW OF NORTH AMERICA, INC.

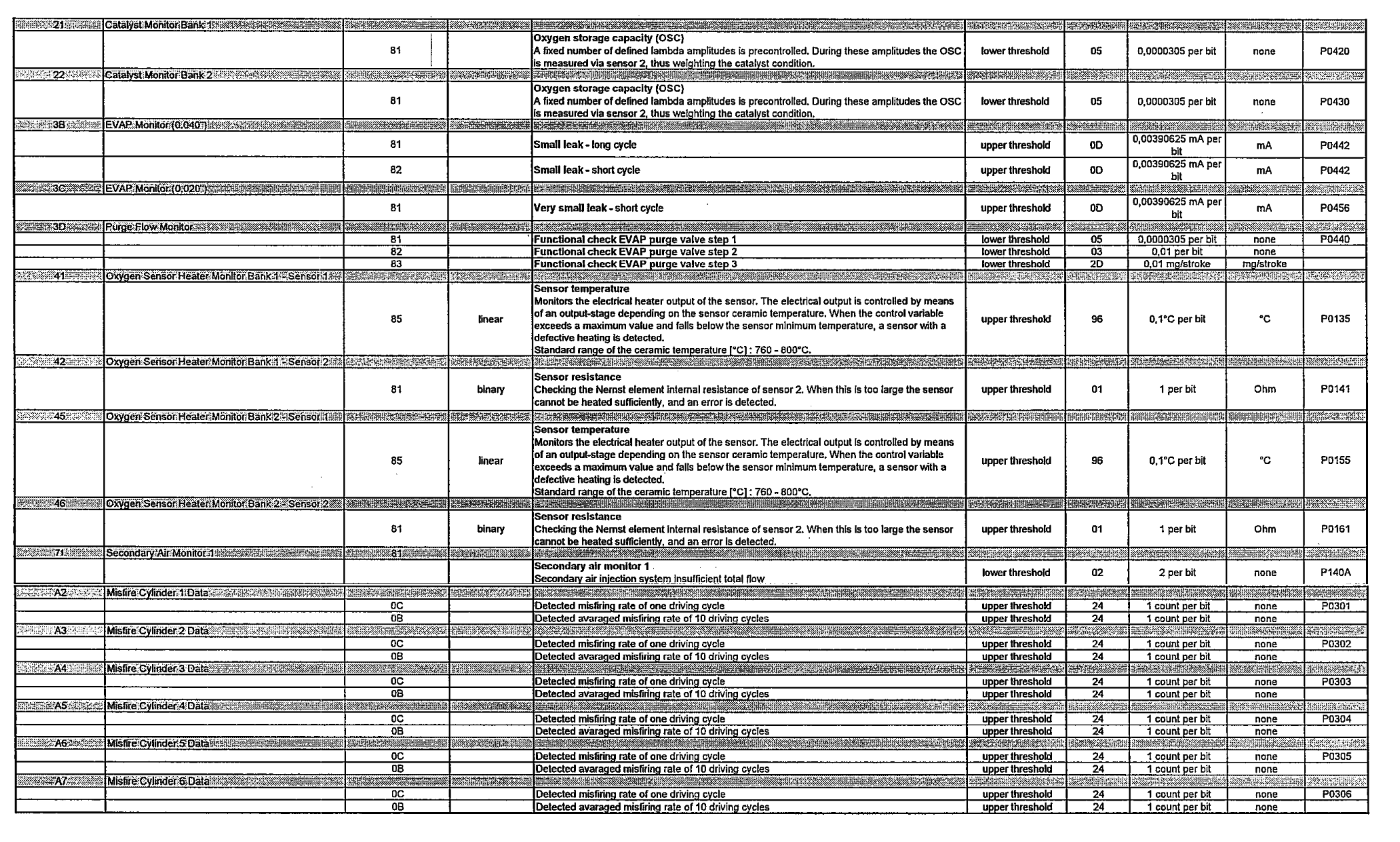

Fig 3: 2008 Mode 06 - N51 Engine SULEV - (2 Of 2)
G00480721Courtesy of BMW OF NORTH AMERICA, INC.
