Display Variants

There are two display variants of the on-board computer functions in the instrument cluster.

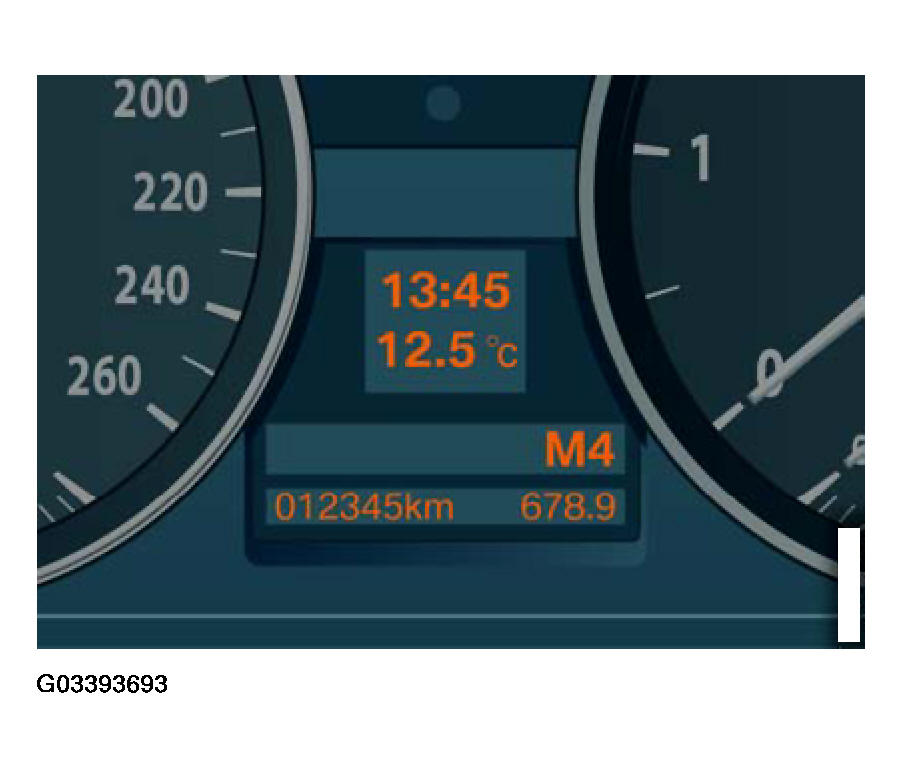

Fig 1: Identifying On-Board Computer Display

Courtesy of BMW OF NORTH AMERICA, INC.

1. Computer in vehicle with automatic transmission
2. Computer in vehicle with manual transmission

   The menu rocker switch must be pressed for at least 2 seconds in one direction to enable fast scrolling of all menu items. The menu is then scrolled through at intervals of 0.5 seconds.
