Engine Tools (04 30 06)

Publication date: 2006-11-01
Reference number: 04 30 06

ENGINE TOOLS

ENGINE TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 30 06, Date of Issue:  November 1, 2006
BMW: N54
GROUP: Tools and Equipment

SUBJECT

Engine Tools

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Additional N54 tools will be offered  shortly. Watch for more group 04 bulletins.

Bearing Fixture

Order PN 83 30 0 495 739

Cartool PN 118 550

  1. Hold down tool
  2. Thumb screws (4 pieces)
  3. Thrust pieces (6 pieces)

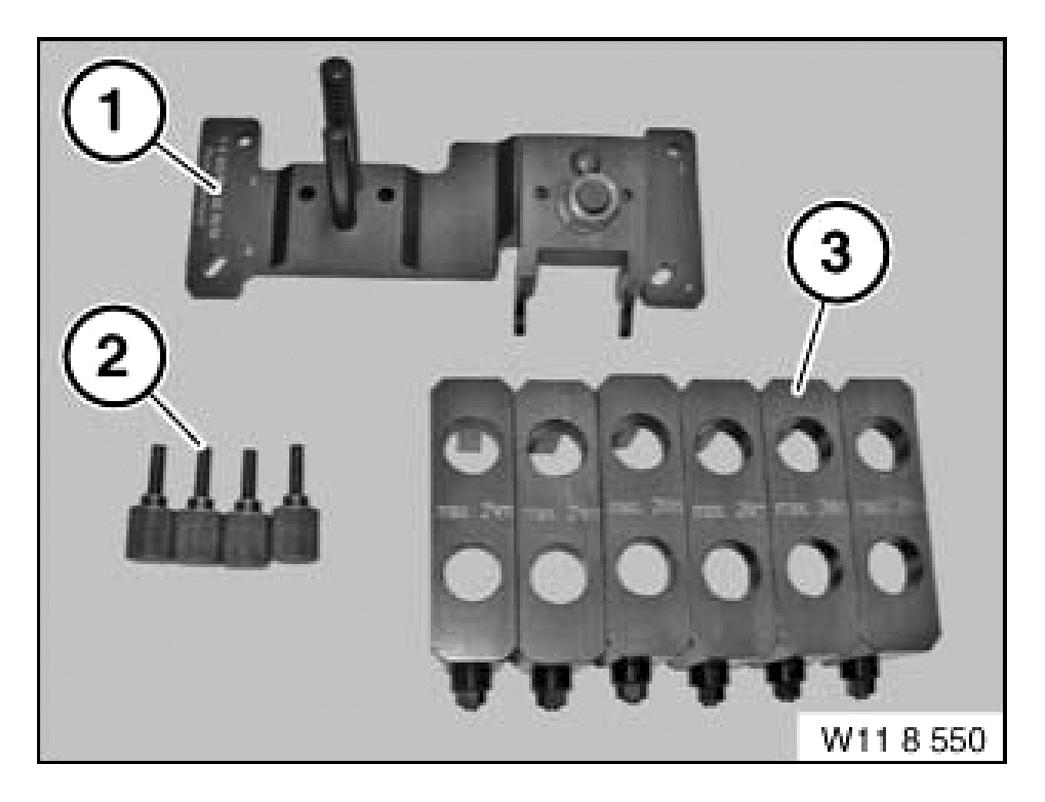

    Fig 1: Bearing Fixture
    G04604561

Used to hold the camshaft bearings in place when fitting the camshaft. Refer to repair manual section 11 31 025.

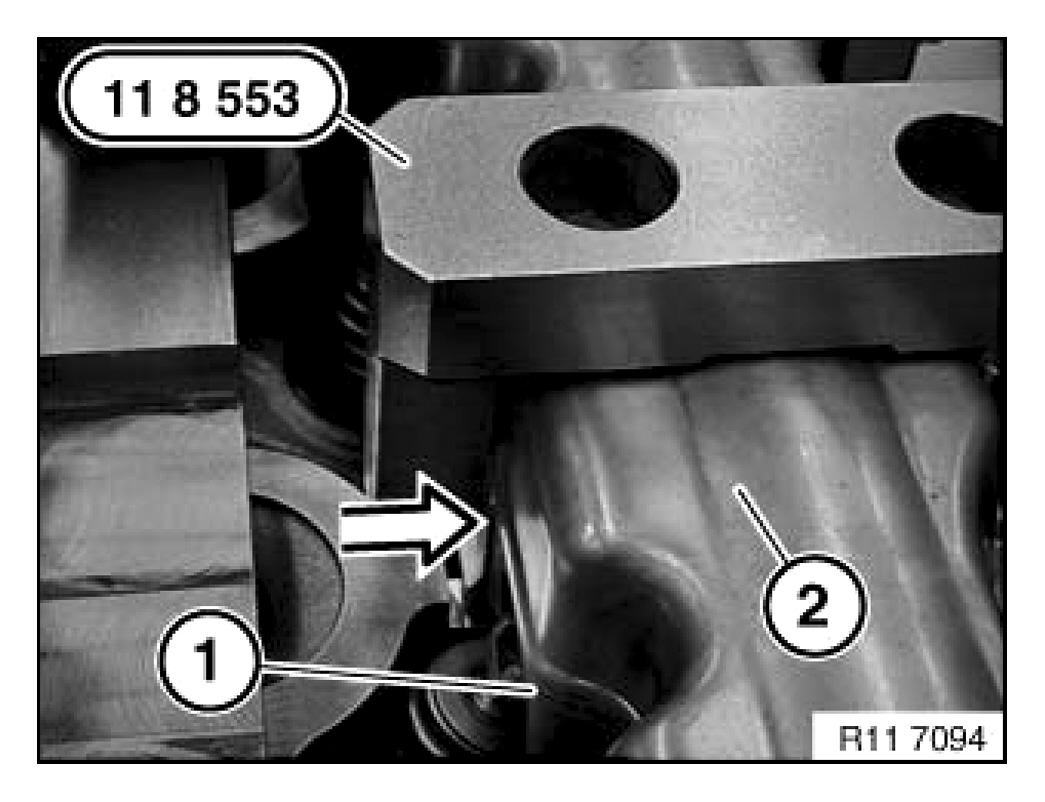

Fig 2: Holding Camshaft Bearings In Place With Bearing Fixture
G04604562

WAF 10 Socket

Order PN 83 30 0 495 751

Cartool PN 118 620

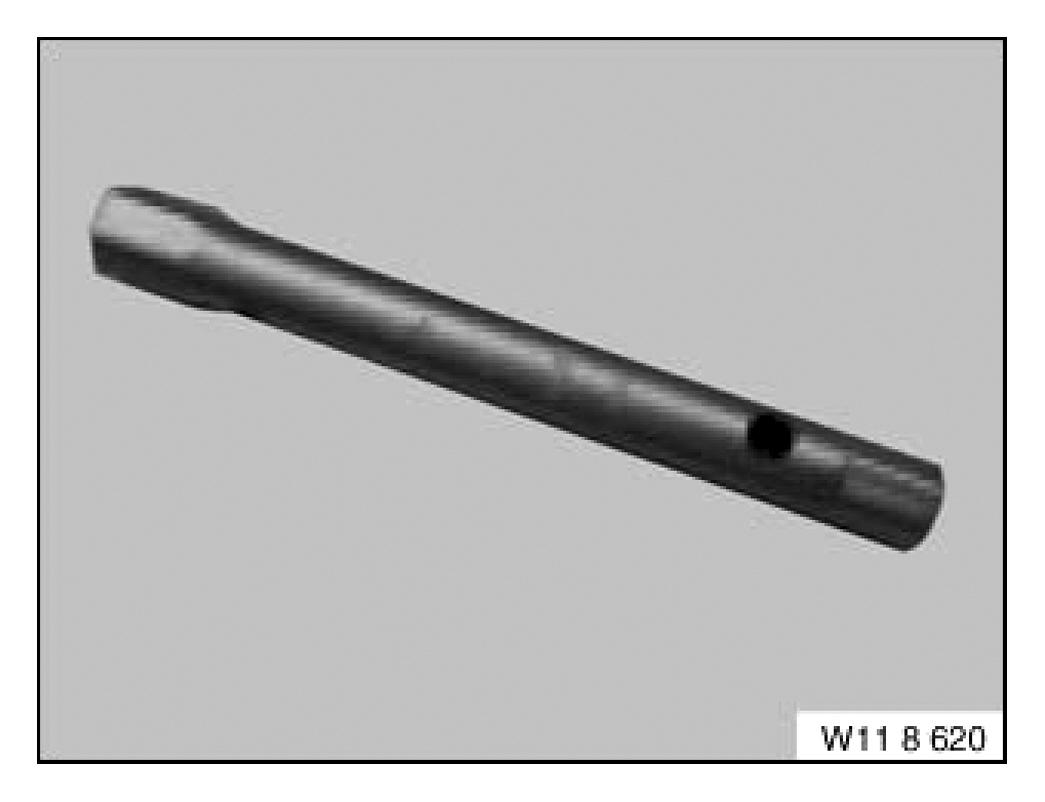

Fig 3: WAF 10 Socket
G04604563

Used to R & R the ground connection for the fuel injectors during valve cover removal. Refer to repair manual section 11 12 000.

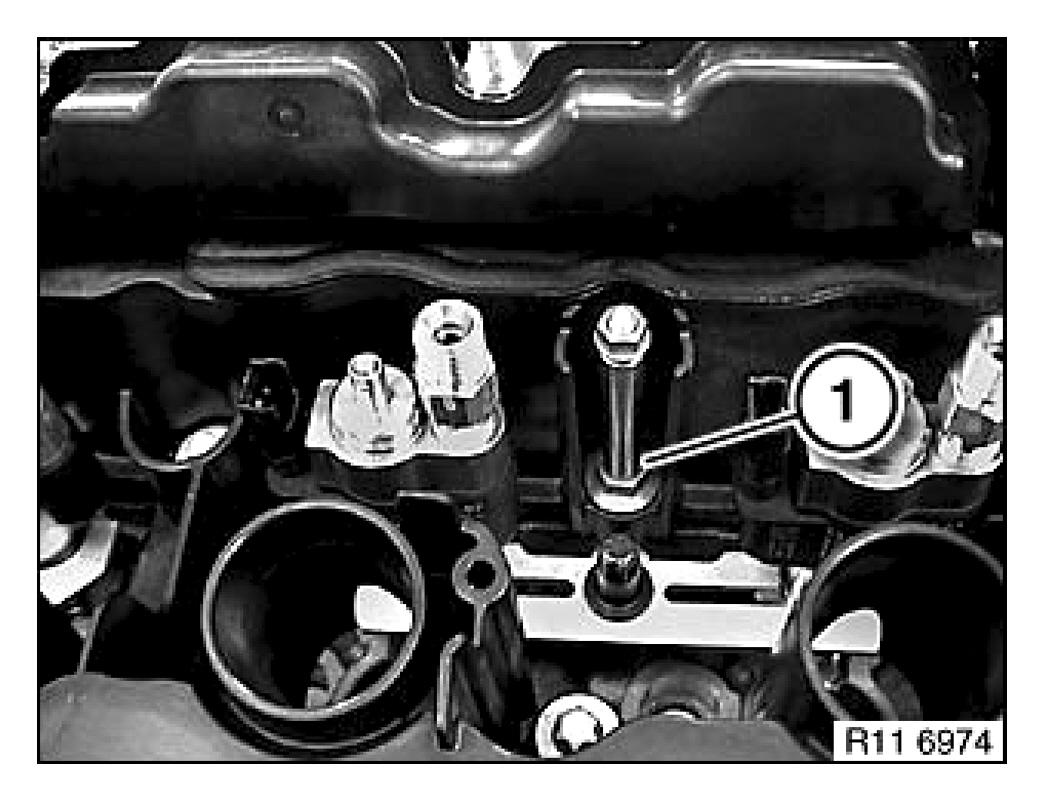

Fig 4: WAF 10 Socket On Ground Connection For Fuel Injectors
G04604564

E10 Torx Socket

Order PN 83 30 0 495 750

Cartool PN 118 640

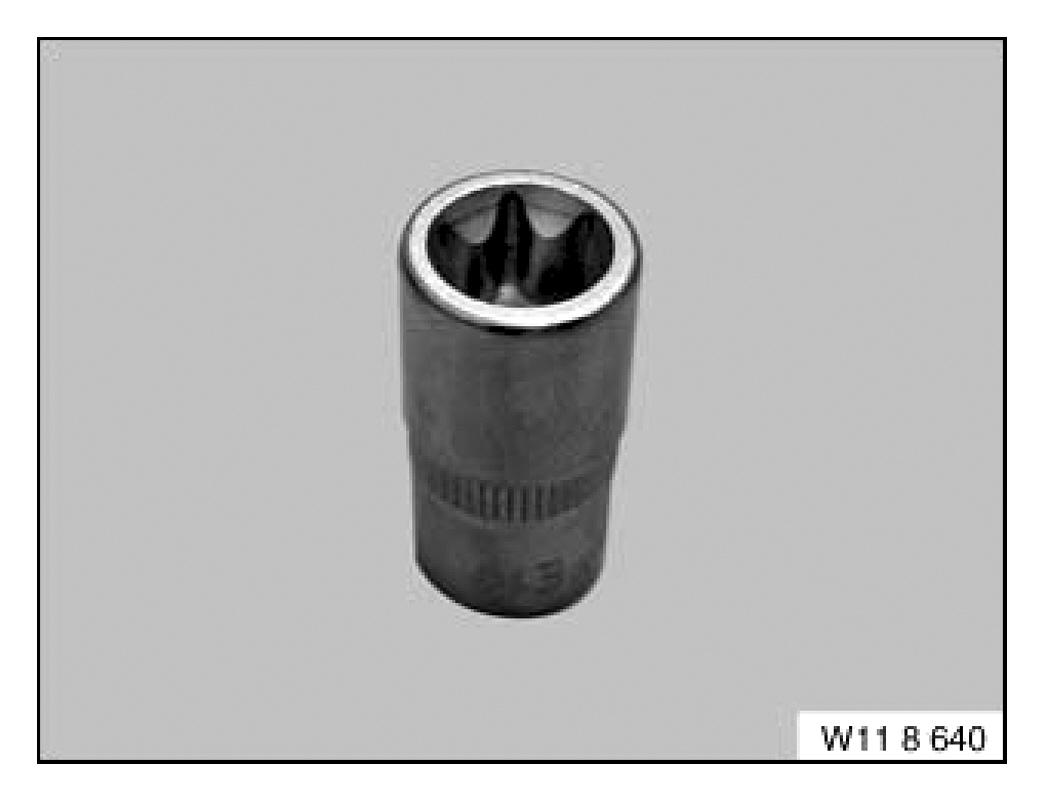

Fig 5: E10 Torx Socket
G04604565

Used to R & R the oil pump triangular drive. Refer to repair manual section 11 41 010.

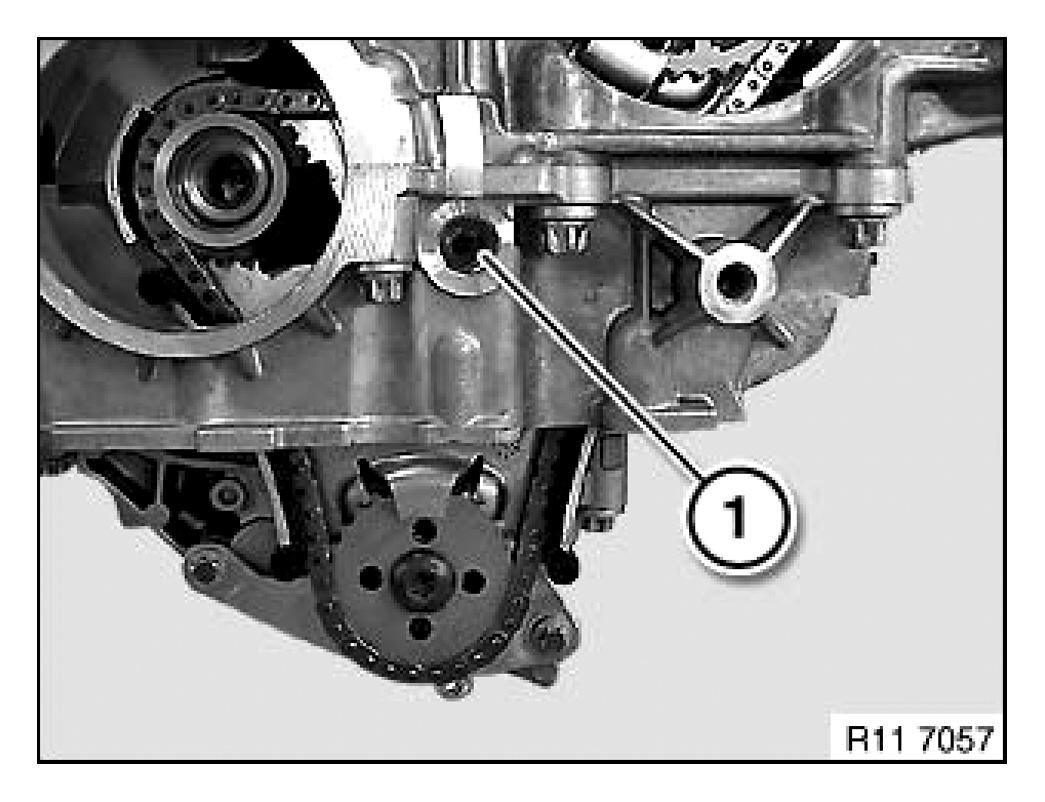

Fig 6: Oil Pump Triangular Drive
G04604566

Flywheel Holder

Order PN 83 30 0 495 753

Cartool PN 118 660

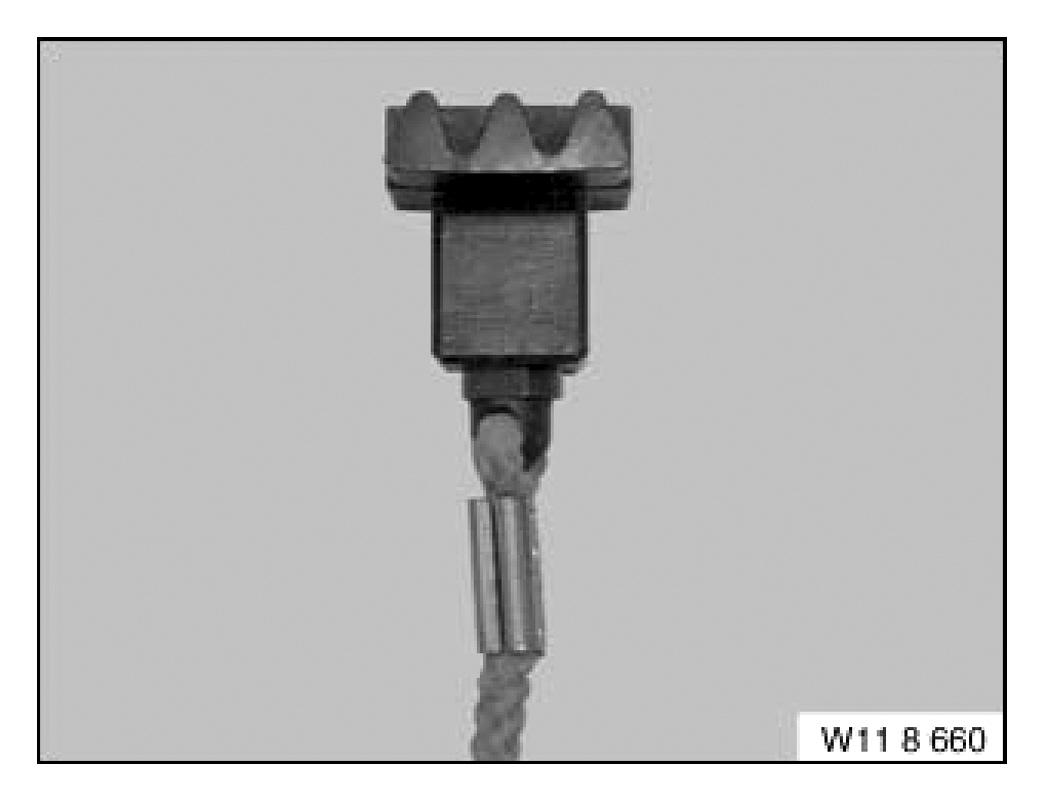

Fig 7: Flywheel Holder
G04604567

Used to hold the flywheel in place with the automatic transmission installed. Refer to repair manual section 11 23 010.

Fig 8: Holding Flywheel In Place With Flywheel Holder
G04604568

Spark Plug Socket

Order PN 83 30 0 495 560

Cartool PN 121 220

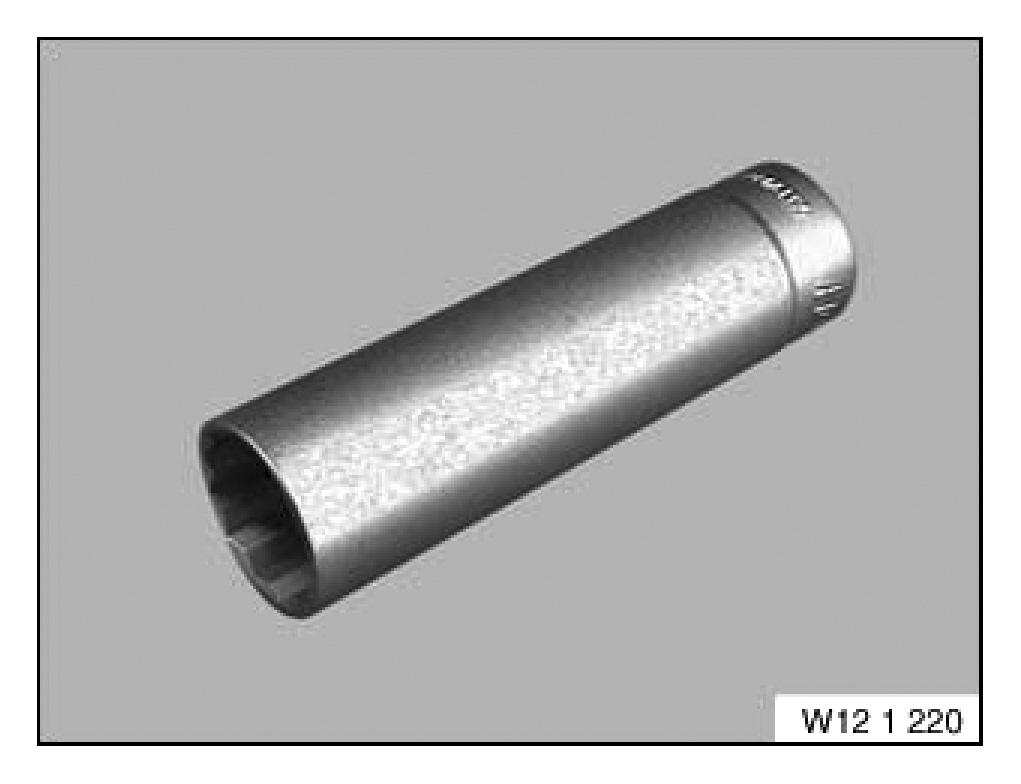

Fig 9: Spark Plug Socket
G04604569

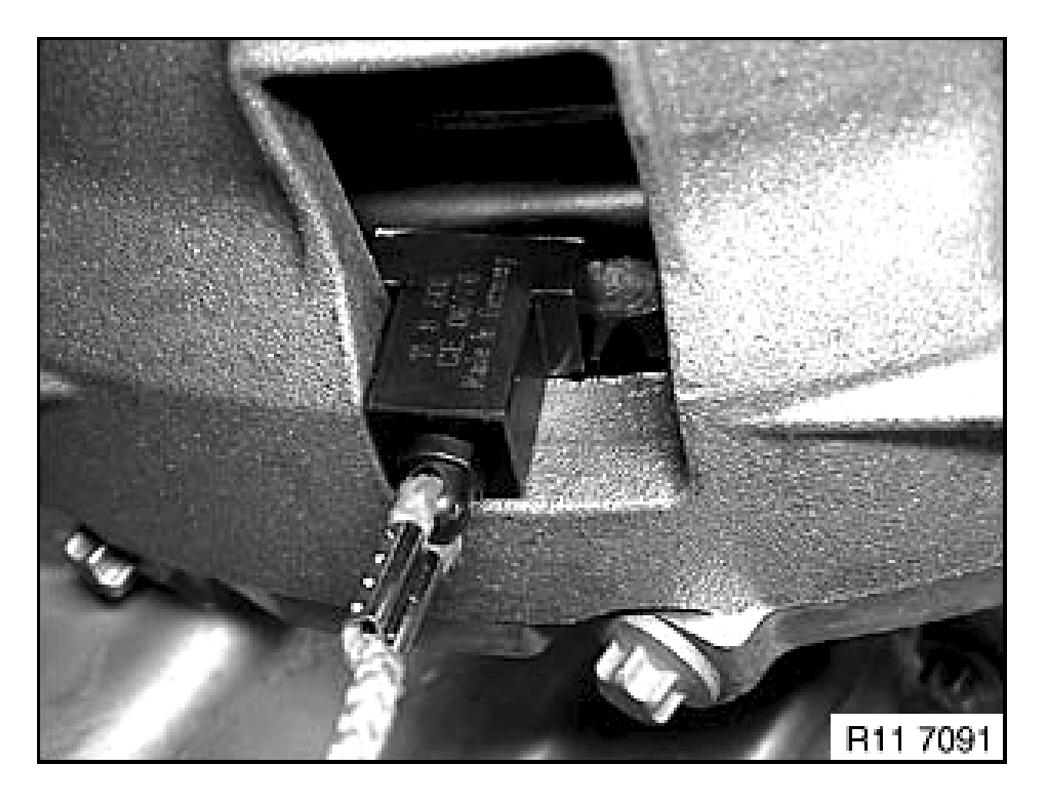

Used to R & R the new style spark plugs.

It will be necessary to use a short impact extension between the socket 121 220 and the torque limiter 121 172. Do not use an extension with a swivel. Refer to repair manual section 12 12 011.

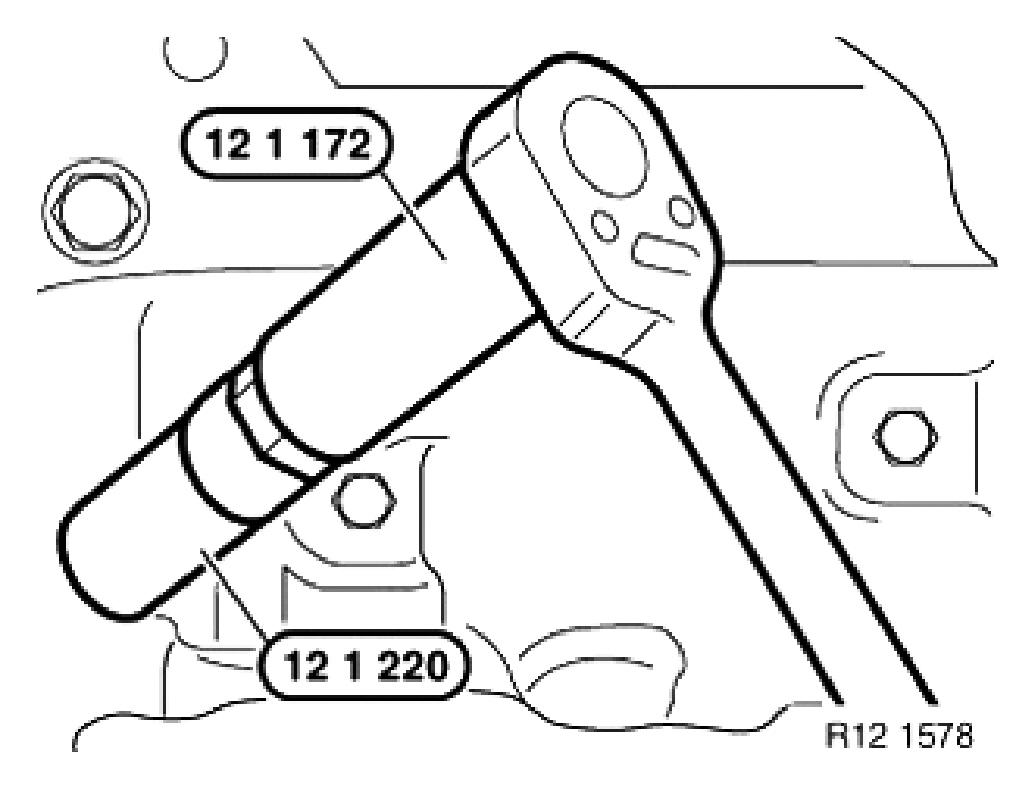

Fig 10: Spark Plug Socket And Torque Limiter
G04604570

Injector Remover

Order PN 83 30 0 495 755

Cartool PN 130 180

Used to remove stuck injectors. Refer to repair manual section 13 64 501.

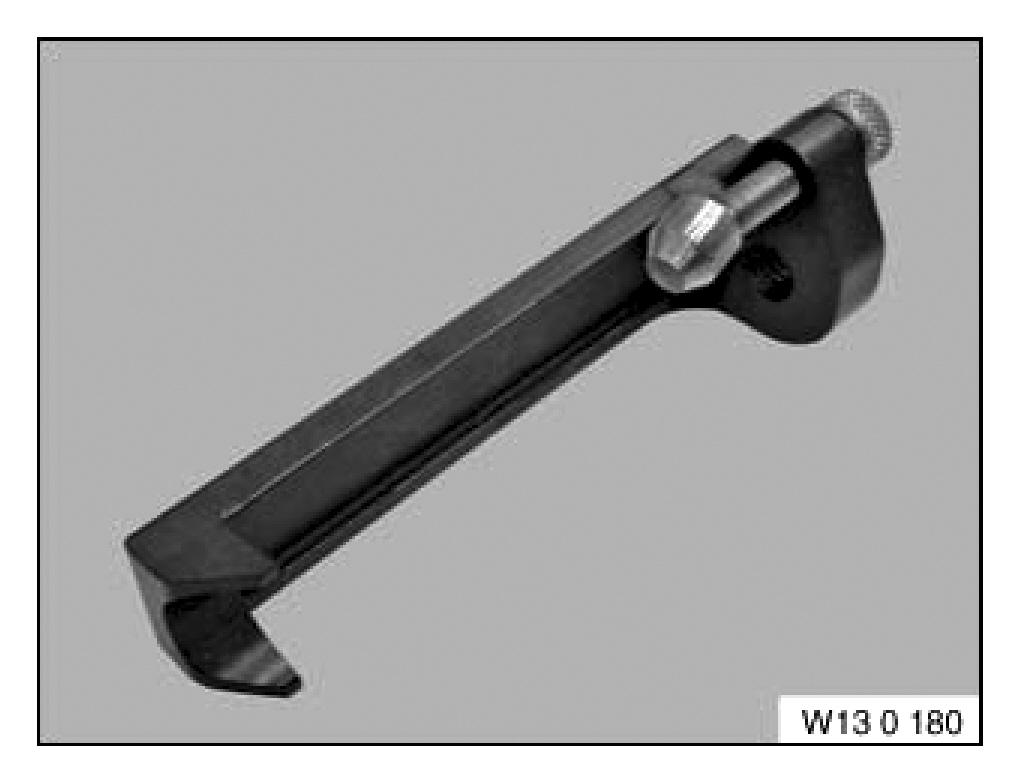

Fig 11: Injector Remover
G04604571

Assembly Set

Order PN 83 30 0 495 756

Cartool PN 130 190

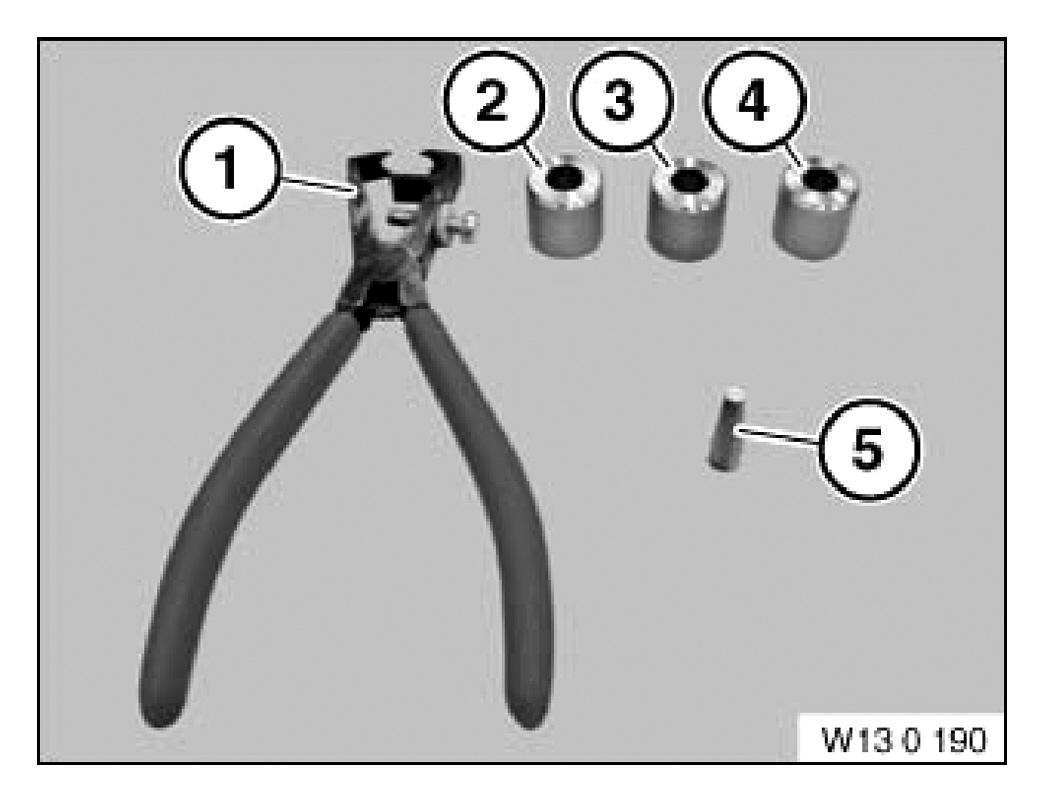

Fig 12: Assembly Set
G04604572
  1. Pliers
  2. Sleeve 1
  3. Sleeve 2
  4. Sleeve 3
  5. Assembly cone

Used to R & R the Teflon rings on the injectors.
