61 35.. Overview of control units, modules

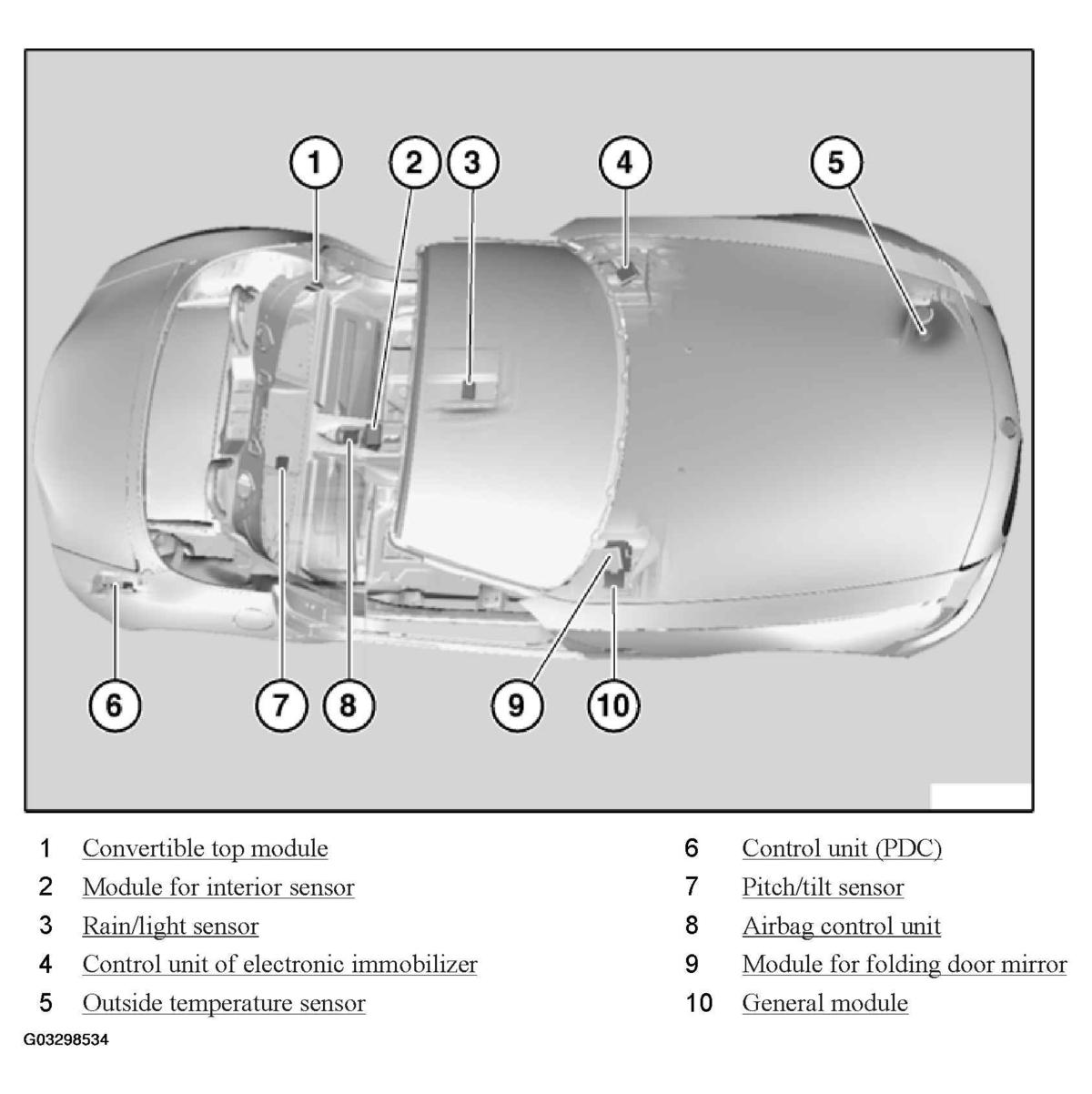

Fig 1: Overview Of Control Units, Modules
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
