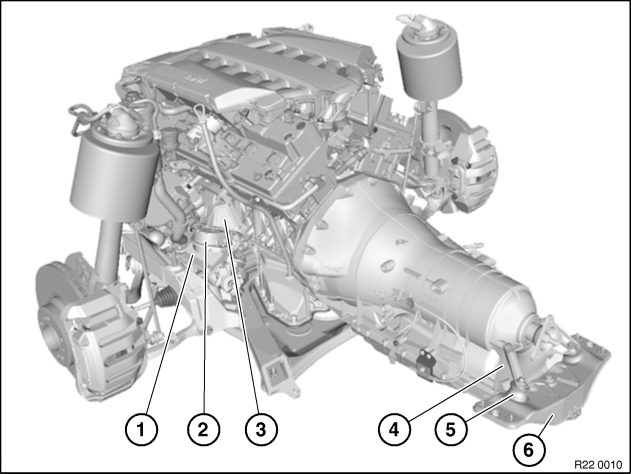

22 .. ... Overview of engine/transmission mounting
Courtesy of BMW OF NORTH AMERICA, INC. Overview of engine/transmission mounting
| Engine Mounting: |
Transmission Mounting: |
| 1) Mounting bracket (left/right) |
4) Transmission support bracket |
| 2) Engine mount (left/right) |
5) Transmission mount |
| 3) Engine support arm (left/right) |
6) Transmission cross-member |
