61 35... Overview of control units

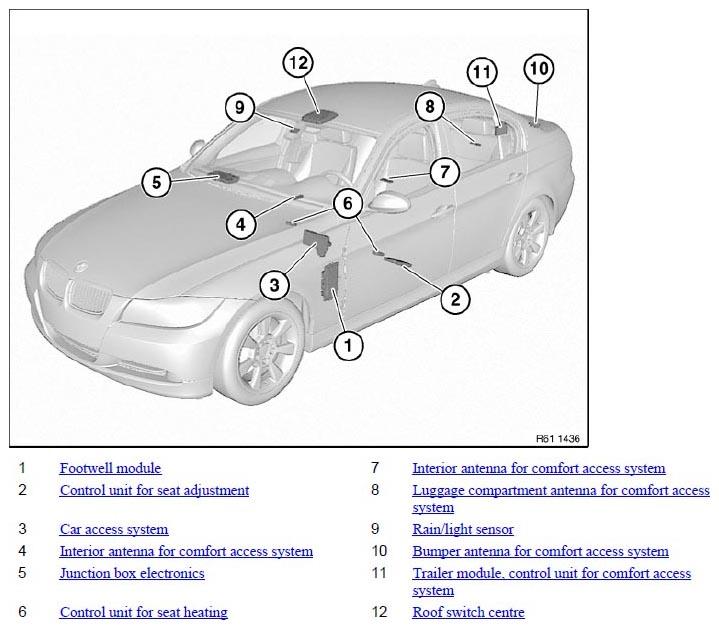

Fig 1: Identifying Control Units Part Location
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
