CCC: Enabling Code (FSC) Required For Voice Recognition System (09 02 07)

Publication date: 2009-08-21
Reference number: 09 02 07

CCC: ENABLING CODE (FSC) REQUIRED FOR VOICE RECOGNITION SYSTEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 09 02 07, Date of Issue: August 21, 2009

BMW:	E82, E88 (1 Series) with CCC navigation (SA 609); E90, E91, E92, E93 (3 Series) with CCC Navigation (SA 609); E60, E61 (5 Series) with CCC Navigation (SA 609); E63, E64 (6 Series); E70 (X5) with CCC Navigation (SA 609); E71 (X6) with CCC Navigation (SA 609)
GROUP:	Programming/Coding Explanations

Superceded Bulletin(s): SI B09 02 07, Date of Issue: April 2009

NOTE: This Service Information bulletin supersedes SI B09 02 07 dated April 2009.

SUBJECT

CCC: Enabling Code (FSC) Required for Voice Recognition System

SITUATION

The Loss of Voice Recognition System (SVS SA 620) functions after programming with ISTA/P.
If a CCC (Car Communication Computer) is replaced, a repair-enabling code must be ordered to activate the SVS function on the replacement CCC.

CAUSE

Enabling codes (FSC) make it possible to link special functions to a vehicle. Without these enabling codes, these functions will not operate. In this specific case, the enabling codes must be imported any time the Car Communication Computer (CCC) is replaced, in order to ensure that the SVS is functioning properly. If the enabling codes are not imported during the programming procedure, the SVS function will not be available.

PROCEDURE

All enabling codes for replacement parts must be ordered and downloaded via ASAP (Aftersales Assistance Portal).

Refer to the attachment to this Service Information, which provides information on how to order and download the repair-enabling code from ASAP.

If during the course of diagnosis, a CCC needs to be replaced, the only part that should be installed is a new part that has not been previously installed in a vehicle. The CCC enabling code is VIN-specific and if installed in another vehicle, the SVS (Voice Input System) will not function. Do not swap parts from donor vehicles.

IMPORTING OF ENABLING CODES INTO ISTA/P

Enabling codes that are downloaded via ASAP or PuMA are contained in a compressed file format. The file must be uncompressed, and the contents copied to the root directory (not in a folder) of a USB stick or burned to a CD.

Plug the USB stick into the USB port on the ISSS or insert the CD into the DVD drive.
Start ISTA/P and select "Data management".
Select "Import activation code".
You will get a prompt to insert media; continue.
Select the activation code that corresponds to the vehicle you are working with.
The enabling code is now imported into ISTA/P and should be displayed with the "Certificate" field as "Present".
Start a new programming session and finish programming the vehicle (the enabling code will automatically be activated during the session).
After programming has finished, turn the ignition off and wait until the CCC is asleep (after 4-5 minutes) and then check the SVS functionality.

WARRANTY INFORMATION

No additional labor allowance; included in the allotted programming time.

ATTACHMENTS

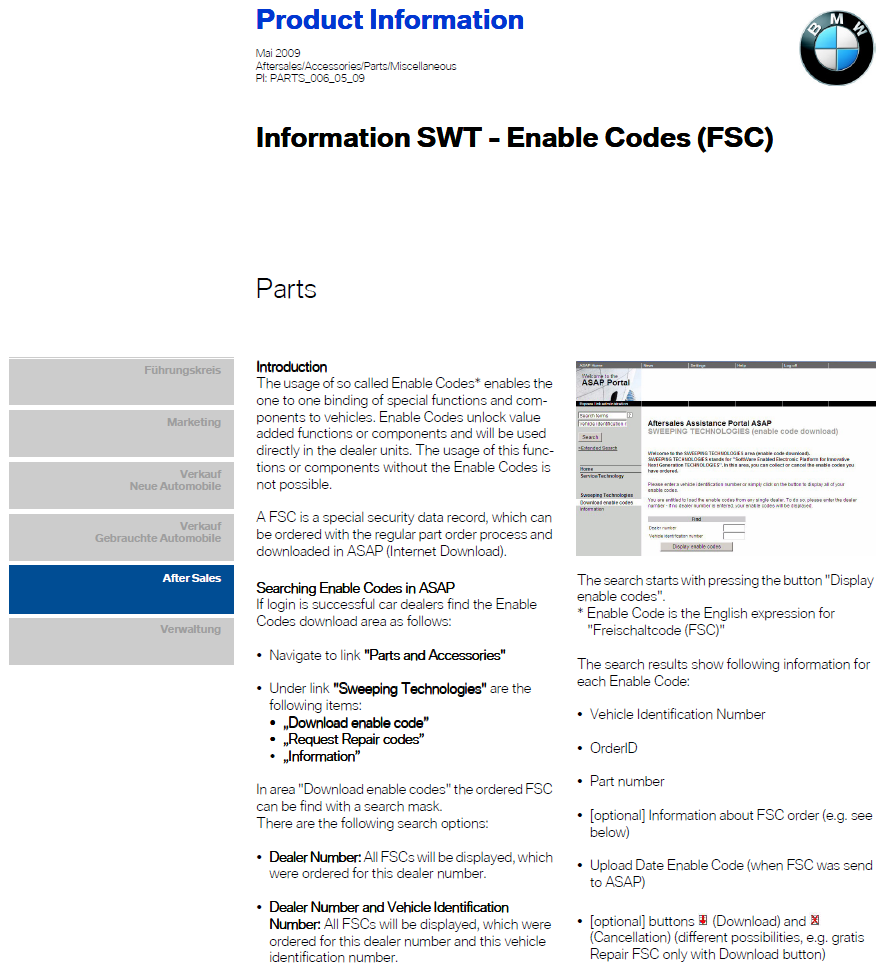

Fig 1: Information SWT - Enable Codes (FSC) - Page 1

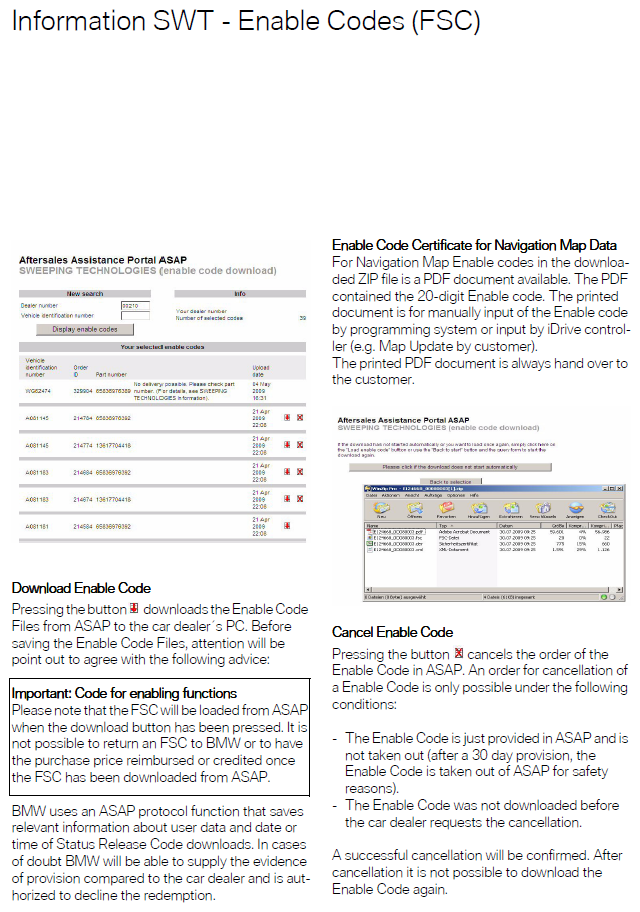

Fig 2: Information SWT - Enable Codes (FSC) - Page 2

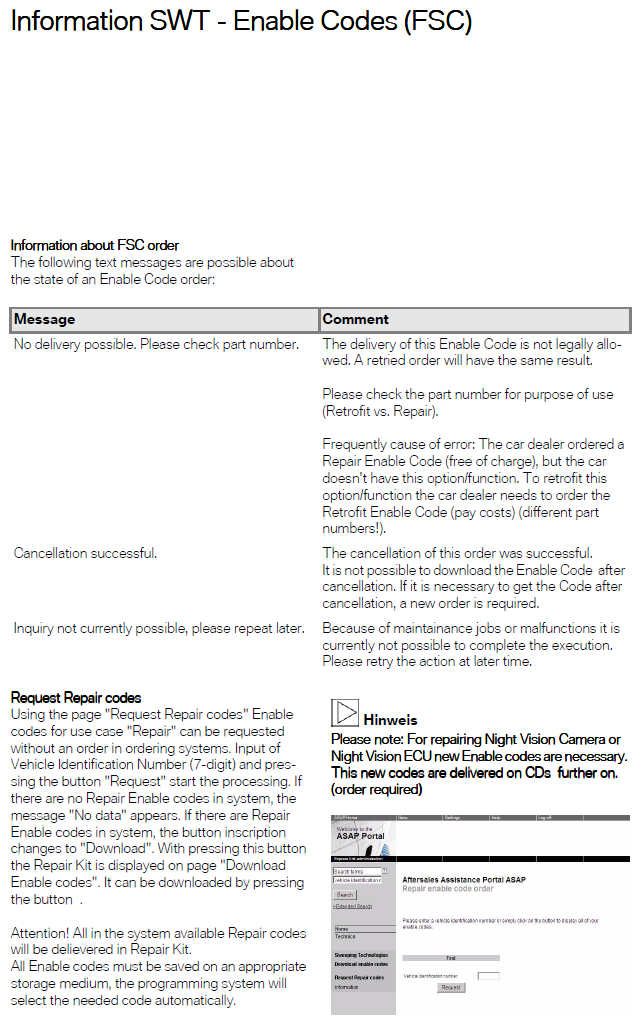

Fig 3: Information SWT - Enable Codes (FSC) - Page 3
